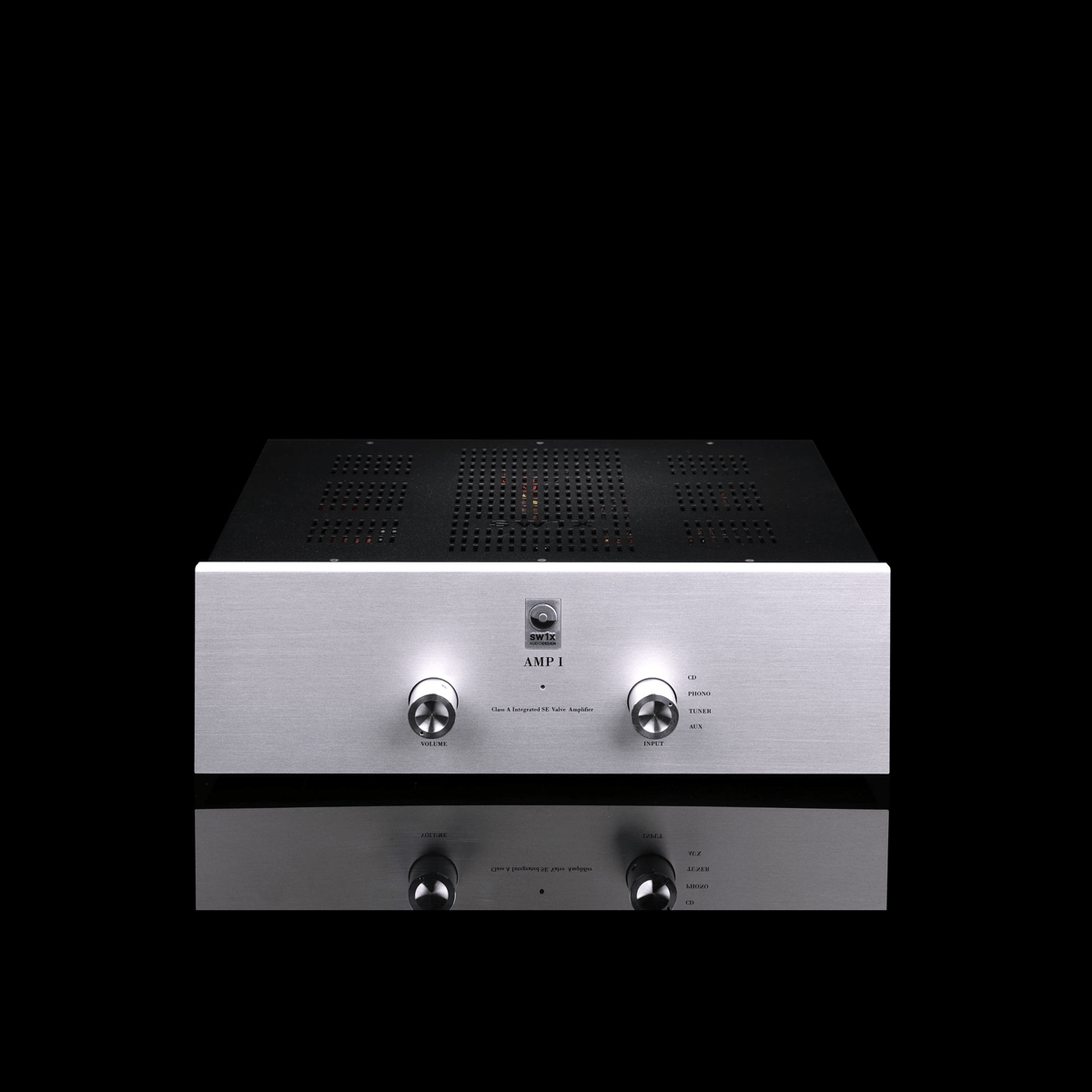

SW1X Audio Design™ AMP I "Genie"

Performance Level 1/2

Integrated Amplifier

AMP I is essentially a 2 gain stage Power Amplifier coupled with a High Quality Pre-amplifier.

EL84 power pentodes are known for their energetic and musical qualities being a very popular tubes due to their usage in the guitar amplifers and radious in the 1960s.

The Triode Connected EL84 maintains that musical & energetic sound character plus adds the refinement and drive of our higher performance amplifier range.

Available in different output stage topologies and versions: PSE and the Push Pull (PP) version with integrated Phono (LPX) or DAC (DX) options and different power output transformer options.

SW1X Audio Design™ AMP I Integrated Amplifier Features:

• Specially Selected and Harmonically Matched Component & Material Quality
• Single Ended, Parallel SE Zero NFB or Push Pull, Class A, Power Pentode (Triode Connected) Valve Power Amplifier
• Only 2 Amplification Gain Stage Design
• 1 x 6N6P Triode driver/input Stage valves driving the 2 x El84 Triode Connected Power Pentode Valves
• SW1X Audio Design™ Custom Designed Copper wound M6 EICore (50 Watt) Signal Output Transformers
• Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
• Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
• Internally wired exclusively with our SW1X Genesis and Opus conductors
• Orient grain M6 EI core mains Transformers & Chokes

Tube Compliment SE version: 1 x 6N6P, 2 x EL84, 1 x 5U4G

Tube Compliment PSE version: 2 x 6N6P, 4 x EL84, 2 x 5U4G

Tube Compliment PP version: 2 x 6N6P, 4 x EL84, 1 x 5U4G

SW1X Audio Design™ AMP I LPX Phono Integrated Features:

• As the AMP I SE above but additionally with a LPU I Phono stage to match
• MM Phono Pre-amplifier is suitable for all moving magnet (MM) or moving coil (MC) in combination with a matching SUT
• Classic 2 Gain Stage Pentode Input-RIAA-Triode Output Design
• Based on 2 x EF86 Pentode Valves on the Input and 6N6P/5687 Double Triode on the Output
• Pure Class A, Zero NFB, Single Ended, all Valve Amplification RC Circuit Topology
• Active Series-Resistor-less RIAA Equalization
• 5Y3 Valve Rectified CLC2RC (choke filtered) B+ Power Supply
• Maximum Input Voltage: 350mV
• 47K Input Impedance

Additional Tube Compliment: 2 x EF86, 1 x 6N6P / 5687, 1 x 5Y3

SW1X Audio Design™ AMP I DX DAC Integrated Features:

• As the AMP I SE above but additionally with a DAC I stage to match
• Pure NOS (Non oversampling – zero digital domain filtering) design
• Based on 1x TDA1543 – one of the most musical and purist DAC chips ever made directly connected to CS8414 S/PDIF receiver
• Pure Class A, Anode Follower, Zero Negative Feedback, Single Ended RC (resistive loaded, capacitive de-coupled) Valve Amplification Topology
• 6N6P Double Triode Driver Valve Output Stage
• Valve rectified CLC (choke filtered) HV power supply
• Discrete Transistor, Shunt Voltage Regulated Low Voltage Power Supplies
• Supports up to 24Bit/96kHz digital coaxial S/PDIF signal input

Additional Tube Compliment: 1 x 6N6P, 1 x 6X5

Optional Extras

• SW1X Audio Design™ Custom Designed Super HiB DC core Signal Output Transformers
• SW1X 24 Step Discrete Attentuator Volume Control
• Fully Hardwired Tube Output Stage on the Bakelite Board
