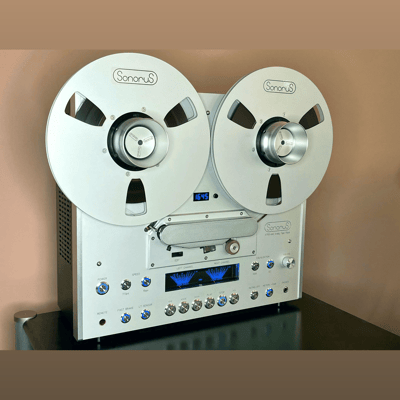

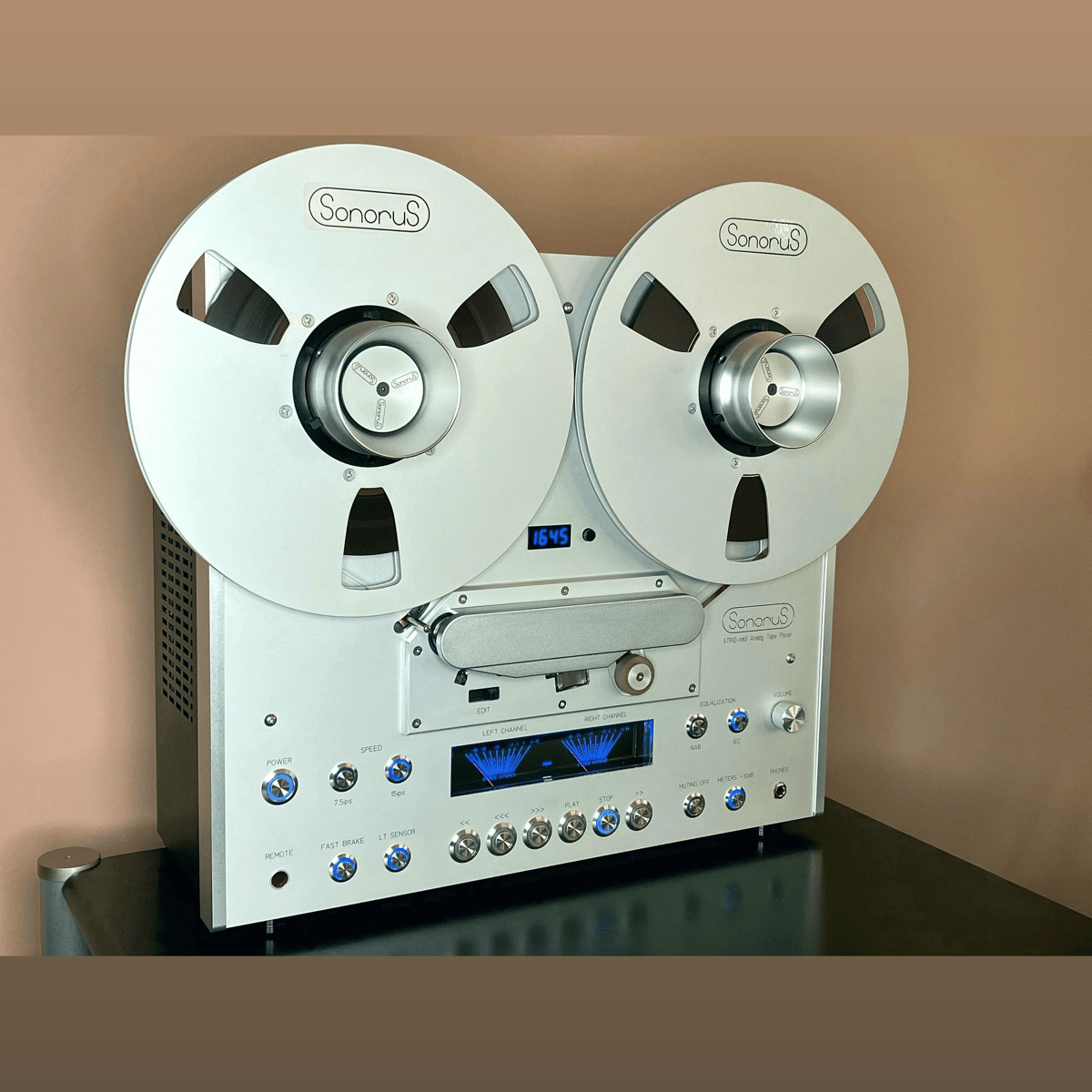

Sonorus Audio ATR10 mkII #1
Sonorus Audio ATR10 mkII variant 1
Sonorus Audio ATR10 mkII variant 2
Sonorus Audio ATR10 mkII variant 3
Sonorus Audio ATR10 mkII variant 4
Sonorus Audio ATR10 mkII variant 5
Sonorus Audio ATR10 mkII variant 6

Sonorus Audio ATR10 mkII: What Critics Say | HiFi Hub

United States flag

Although at its core still based on proven Studer motors and heads, all electronics and many mechanical parts have been redesigned to meet and exceed any modern day high-end and audiophile expectations. Regulated tape tension and strategically placed rolling tape guides provide the same stable tape transport as professional studio tape machines.


Vacuum tube playback electronics utilizing our unique, newly developed DC Coupled Stabilized Loop Gain Technology delivers a remarkable combination of dynamic bass impact, normally only associated with solid state systems, with the mid-range clarity, transparency and sense of realism of vacuum tube systems.


The ATR10 mkII sporting two carbon fiber reels from RX Reels in cobalt blue. These reels are very flat and sturdy and are dynamically balanced during manufacturing resulting in a very quiet and smooth winding performance.


Playback board of the ATR10 mkII, including the newly developed 'DC Coupled Stabilized Loop Gain Technology', a technology that conserves the mid-range clarity, transparency and the natural sound characteristics of well designed tube circuitry while delivering a dynamic bass impact from tubes, normally only associated with well designed solid state circuitry.


This board also includes our 'head-wear compensation' circuitry, which keeps the playback performance stable over the lifetime of the head.


Read full description
View at Sonorus Audio
Specifications9 reviews & sources

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

YouTube Reviews

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

Line voltage
120VAC @ 60Hz
Ambient temperature
25°C
Tape speeds
15 ips (38.1 cm/s)\n7.5 ips (19.05 cm/s)
Tape speed deviation
< +/- 0.2%
Tape slip
< 0.1%
Tape reels
Max. diameter: 10.5” (26.5cm)\nMin. hub diameter: 2.34” (60mm)
Tape width
¼” (6.35mm)
Wow and flutter
Weighted according DIN 45507.\n15 ips: <0.05%\n7.5 ips: <0.07%
Winding time
Fast Forward / Fast Rewind: Approx. 90 sec. for 2500ft (762m) tape\nSlow Forward / Slow Rewind (Library Wind): Approx. 5 min. for 2500ft (762m) tape
Stopping time from spooling
Measured around the middle of a 2500ft (762m) tape on metal 10.5” (26.5cm) NAB reel.\nNormal Braking: Approx. 6 sec.\nFast Braking: Approx. 2 sec.
Tape tension
Electronically regulated. Tested with 10.5” (26.5cm) reels.\nSupply reel side: 0.45N +/-0.05N\nTake-up reel side: 0.60N +/-0.05N
Outputs
RCA/XLR outputs: Output impedance: 75Ohm\nLoad impedance: 5kOhm min.\nHeadphones output: Output impedance: 180Ohm\nLoad impedance: Any
Output level
RCA/XLR outputs: 0.55Vrms @ 0dBVU\nHeadphones output: max. 6.4Vrms
Equalizations
NAB and IEC (CCIR), switch selectable
Equalization time constants
NAB (7.5ips): 50/3180 µs\nNAB (15ips): 50/3180 µs\nIEC (7.5ips): 70/16000 µs\nIEC (15ips): 35/16000 µs
Frequency response
15ips: 18Hz – 25kHz (+2/-3dB)\n7.5ips: 14Hz – 21kHz (+2/-3dB)
Signal-to-noise ratios
RMS, weighted according to ASA-A reference to +6dBVU (510nWb/m)\nNAB (7.5ips): 71dB\nNAB (15ips): 73dB\nIEC (7.5ips): 71dB\nIEC (15ips): 73dB
Distortion
THD measured at 1kHz\n15ips, 0dBVU: <0.15%\n15ips, +6dBVU: <0.5%\n15ips, +13dBVU: <3%
Power consumption
Stop: 55W\nPlay: 120W\nSpooling: 130W\nLibrary Wind: 160W
Operating temperatures
50°F – 104°F (10°C – 40°C)
Relative humidity
20% - 90%, non condensing
Weight
44 lbs. (20kg)
Reel-to-Reel Playback
Headphone Output
Balanced Output
Speed Control

Manufacturer's Description — Sonorus Audio

Although at its core still based on proven Studer motors and heads, all electronics and many mechanical parts have been redesigned to meet and exceed any modern day high-end and audiophile expectations. Regulated tape tension and strategically placed rolling tape guides provide the same stable tape transport as professional studio tape machines.


Vacuum tube playback electronics utilizing our unique, newly developed DC Coupled Stabilized Loop Gain Technology delivers a remarkable combination of dynamic bass impact, normally only associated with solid state systems, with the mid-range clarity, transparency and sense of realism of vacuum tube systems.


The ATR10 mkII sporting two carbon fiber reels from RX Reels in cobalt blue. These reels are very flat and sturdy and are dynamically balanced during manufacturing resulting in a very quiet and smooth winding performance.


Playback board of the ATR10 mkII, including the newly developed 'DC Coupled Stabilized Loop Gain Technology', a technology that conserves the mid-range clarity, transparency and the natural sound characteristics of well designed tube circuitry while delivering a dynamic bass impact from tubes, normally only associated with well designed solid state circuitry.


This board also includes our 'head-wear compensation' circuitry, which keeps the playback performance stable over the lifetime of the head.
