A true 110 Ohm cable that employs 20 AWG pure silver polished surface conductors and features our new rhodium-plated tellurium copper connectors.

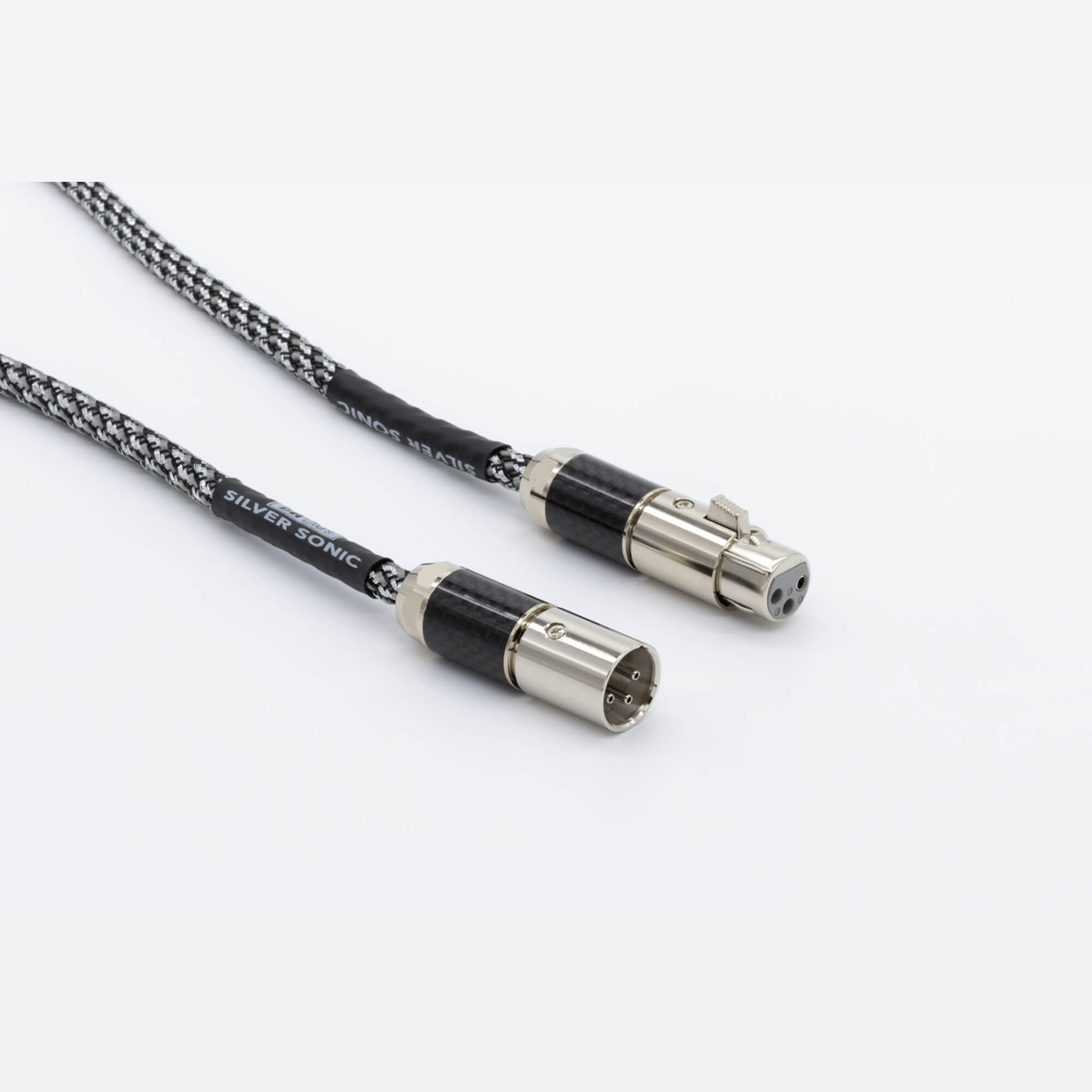

The NEW handcrafted D-110 AES/EBU – SILVER REFERENCE is a true 110 Ohm cable that employs 20 AWG PURE SILVER polished surface conductors (99.9999% purity).  This cable is MADE IN USA and also features our new rhodium-plated tellurium copper XLR connectors.

A critical goal of a digital interface cable is to maintain perfect uniform impedance and ultra-low capacitance. The combination of a PTFE tape-wrapped foam dielectric, a solid spacer (for constant impedance) and perfectly concentric configuration yields the finest 110 Ohm digital cable available from any manufacturer at any price.

Specifications:

• 110-ohm Nominal Impedance
• Special PE Solid Filler Rods maintain constant 110 Ohm impedance
• Capacitance: 11 pF/ft
• Tape-Wrapped PTFE (Teflon) Foam Dielectric
• 20 AWG, Solid Core Silver (99.9999% purity) USA
• Hand assembled with true silver solder
• Custom DH Labs Rhodium Plated/Tellurium Copper XLR Connectors
