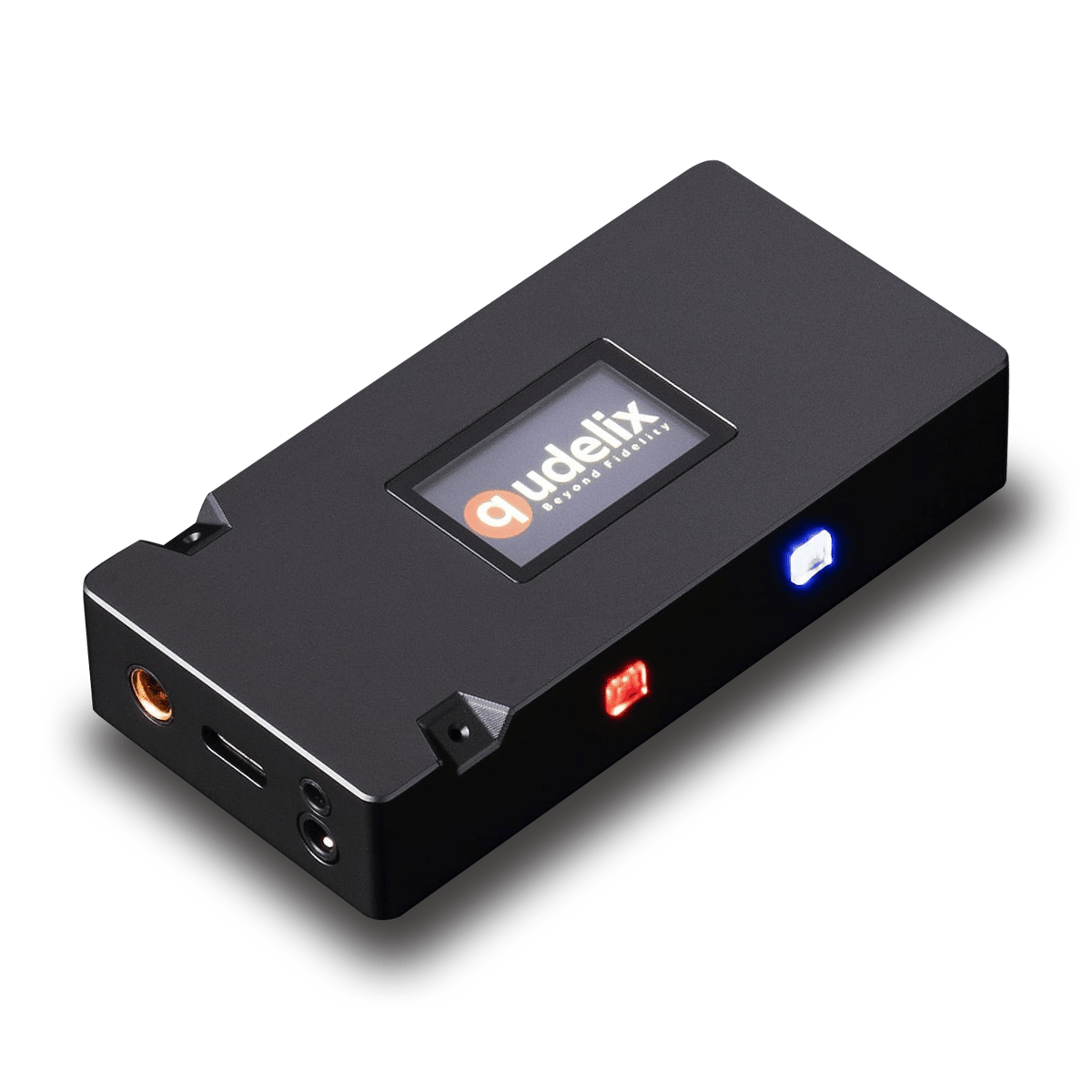

qudelix Qudelix-T71 USB DAC AMP

• Qudelix-T71 WiKi

• Qudelix-T71 PDF Manual

• Amazon Store

• NXP iMXRT600 ARM + DSP Core
• Four ES9219C SABRE HiFi® DAC
• Two Texas Instruments INA1620 AMP
• Balanced output max. 8V RMS (2.5 & 4.4mm)
• 4~10 hours battery time (1000mA Battery)
• 2.0 Channel Stereo Mode 384KHz / 32-bit
• 7.1 Channel Surround Mode 96KHz / 32-bit
• 20-band Double Precision PEQ/GEQ
• Two High Sensitivity MEMS Microphones
• PC Chrome App Windows/macOS/Linux
• Android Mobile App
• 84 x 40 x 16mm / 75g

Four ES9219 & Two INA1620

Fully Balanced Architecture

T71, integrated with four ES9219 Sabre DACs and Two INA1620 OPAMPs, is designed to build a fully balanced audio signal chain. It helps cancel out common-mode noise, provide better signal integrity, and minimize interference and noise.

It offers improved audio quality and clarity and plenty of output power. It can drive any demanding IEMs or Headphones with enough headroom and without any hiss or noise.

Versatile Interface

4.4mm & 2.5mm BAL output

3.5mm UNBAL output

Built-in Dual MEMS microphnes

Four LED Buttons

240 x 135 Full Color LCD

20-Band Equalizer

Qudelix-T71 supports 20-band Equalizers, which are independently adjustable per each audio channel. (The PC Chrome App and Android App are supported. *The iOS App is not supported.)

T71 stores every setting, including EQ presets, on its flash memory. Users can restore the stored EQ presets without the app through the device button & LCD UI.

1000mA Battery for mobile use

Portable, but Desktop Grade

Balanced max. 8VRMS

Unbalanced max. 4VRMS
