Miller Audio Dyna-70 / Dyna-120 Choke – Smoothing Filter

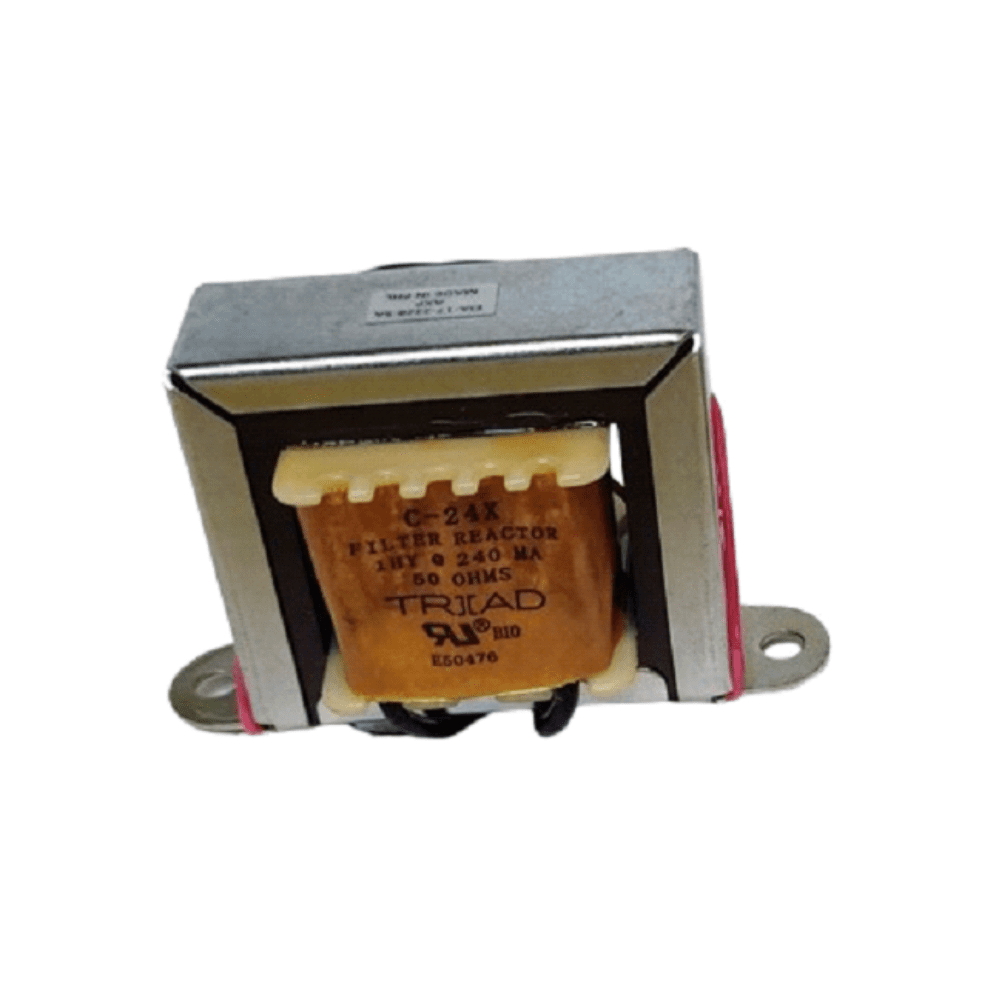

Triad C-24X DC Choke / Smoothing Filter Specifications:

Low-Cost alternative to the C-354; performs well in the Dyna Ultimate Upgrade;

Inductance*: 1.00 Henry

Max. Current Capacity: 240mA DC

Resistance: 50 ohm

Max. Operating Voltage: 400 vdc

Specification Tolerance: -20%/+50%*

Price: $23.00



Original Dynaco C-354 DC Choke / Smoothing Filter Specifications:

Features enclosed bell ends for lower RF/EMI noise;

Inductance: 1.75 Henry

Max. Current Capacity: 200mA DC

Resistance: 62 ohm

Max. Operating Voltage: 400 vdc

Specification Tolerance: 10% +/-

Price: $44.00



Note 1: Both Chokes are drop-in replacements for Dynaco ST-70, Mark III & Mark IV mono block amplifiers.

Note 2: The Dyna-70 requires one Choke; The Dyna-120 requires two Chokes.

Note 3: Mounting Information-  C_24X-1892581.pdf
