McIntosh Labs MTI100 Integrated Turntable: What Critics Say | HiFi Hub

United States flag
  • A modern home audio system for modern lifestyles
  • Turntable, preamplifier and amplifier all in one
  • Includes Bluetooth and auxiliary inputs
  • Just add your music and speakers

Turntable?
Amplifier?
Vacuum tube preamplifier?
Phono preamplifier?
Analog input?
Digital inputs?
Bluetooth receiver?
Speaker outputs?
Subwoofer output?
Headphone jack?
McIntosh engineering?
What else do I need? Just add your music and speakers.

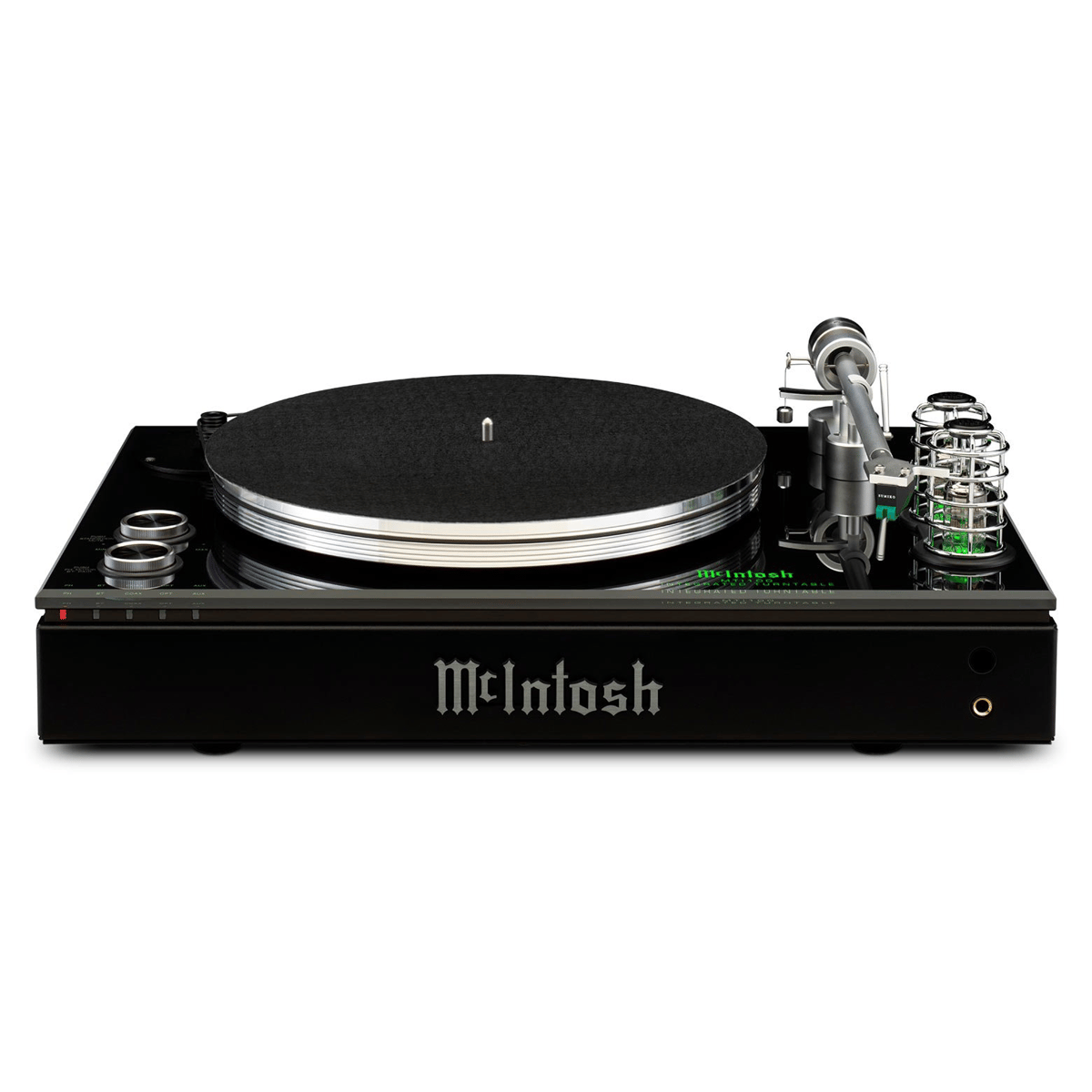

At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice (such as our XR50 bookshelf or XR100 floorstanding speakers) and you’ll have a complete and comprehensive audio system.


Besides the turntable that plays both 33-1/3 and 45 rpm vinyl records, the MTI100 also includes a power amplifier, a vacuum tube preamplifier section, a shielded phono preamplifier, an unbalanced auxiliary input, digital audio coaxial and optical inputs, a Bluetooth receiver, a subwoofer output, stereo speaker outputs for sharing your music with friends, and a headphone jack for personal listening.


The 7 pound (3.18 kg) machined aluminum platter resides on the top of the unit. This and the matching machined aluminum tonearm with anti-skate sit atop a 3/8” (9.5mm) thick piece of glass – the same glass found in the front panels of our larger amplifiers; this in turn sits atop a custom 1/4” (6.35mm) thick metal plate that adds stability. The combined heftiness of both the platter and metal plate helps resist and absorb noise that could be caused by external vibrations.


The belt drive platter with manual speed change is driven by an industrial grade permanent magnet AC synchronous motor with a 2 speed pulley. With this motor, the platter speed is precisely synced to the AC power line’s frequency to deliver precise rotational speeds for playback accuracy. The MTI100 comes with a Sumiko Olympia Moving Magnet cartridge, whose upgraded stylus and cantilever assembly allow for more dynamic punch and improved frequency response.


A Class D amplifier that’s rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms is used to drive a pair of speakers (sold separately) that are connected via the back panel speaker binding posts. Two 12AX7 vacuum tubes power the main preamplifier section, while a separate dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal. Together, the vacuum tube preamplifier and shielded phono preamplifier are a perfect choice to help make your vinyl albums sound their best.


To combine playing vintage vinyl records with modern playback methods, you can also stream music to the MTI100 via its High Definition Bluetooth 4.2 input that ensures you receive the best sound quality possible from your Bluetooth device. An external Bluetooth antenna helps achieve optimal reception and signal quality. The analog and digital audio inputs allow external sources, such as a TV, tuner or CD Player, to be connected. Not to overlook the impact that low sound frequencies can add, a subwoofer output is also included. Finally, for personal listening, the front panel includes a headphone jack that is powered by our High Drive headphone amplifier, which features increased gain and output power and is optimized for virtually all headphone types.


Power, volume and input selection can be controlled by either the included remote or via two knobs on the unit. An illuminated McIntosh logo is located in the top glass panel, while a classic McIntosh-styled die cast aluminum name badge adorns the front of the chassis. Contact your local dealer to learn more about making the MTI100 the center of your home audio system.


Read full description
View at McIntosh Labs
Specifications21 reviews & sources

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

YouTube Reviews

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

Cartridge Type
Moving Magnet
Output Level
4mV at 1kHz
Load Impedance
47k Ohms
Frequency Response
12Hz to 30kHz
Channel Separation
30dB at 1kHz
Compliance
12 x 10-6 cm/dyne
Recommended Tracking Force
2.0 g
Channel Difference
Less than 1dB at 1kHz
Total Mass
6.5 g
Stylus
Elliptical
Cantilever Material
Aluminum
Bearing
Cardan bearing arrangement with ball bearings used for lateral and Sapphire/Tungsten for vertical bearing
Arm Tube
Machined aluminum
Counterweight
Concentric
Adjustments
None
Playback Speeds
33-1/3 and 45 rpm
Motor Type
Permanent magnet AC synchronous
Speed Control
Manual speed change via a 2 speed pulley
Platter
Aluminum
Platter Bearing
Inverted hardened steel shaft and axial ball arrangement with bronze bushing
Signal To Noise Ratio
35dB - 40dB
Wow & Flutter
0.1%
Stereo Outputs Unbalanced
1 (bridged to AMP IN)
Stereo Inputs Unbalanced
1
Digital Coaxial Inputs
1
Digital Optical Inputs
1
Subwoofer Outputs
1
Wireless Input
High Definition Bluetooth 4.2
Power Control Inputs
0
Power Control Outputs
1
Platter Light
N/A
Speed Control Fine Adjustment
No
Power Output per Channel
50 Watts into 8 Ohms80 Watts into 4 Ohms
Number of Channels
2
Speaker Impedance
4 or 8 Ohms
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
Amplifier: 0.2% maximum harmonic distortion at any level from 250 milliwatts to one-half of rated power output, 20Hz to 20kHz;0.5% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHzPreamplifier: 0.2% from 20Hz to 20kHz
Dynamic Headroom
1.0dB (8 Ohms)1.3dB (4 Ohms)
Frequency Response +0,-0.7dB
20Hz to 20kHz
Signal To Noise Ratio (Moving Magnet)
75dB
Signal To Noise Ratio (High Level)
90dB
Damping Factor
8 Ohms: >2004 Ohms: >100
Maximum Output (Balanced / Unbalanced)
9V Unbalanced
Dust Cover Included
No
Unit Dimensions (W x H x D)
19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
Unit Weight
33.5 lbs (15.2 kg)
Shipping Weight
40.5 lbs (18.4 kg)
Phono Stage
Bluetooth
Built-in Preamp
Built-in Power Amplifier

Manufacturer's Description — McIntosh Labs

  • A modern home audio system for modern lifestyles
  • Turntable, preamplifier and amplifier all in one
  • Includes Bluetooth and auxiliary inputs
  • Just add your music and speakers

Turntable?
Amplifier?
Vacuum tube preamplifier?
Phono preamplifier?
Analog input?
Digital inputs?
Bluetooth receiver?
Speaker outputs?
Subwoofer output?
Headphone jack?
McIntosh engineering?
What else do I need? Just add your music and speakers.


At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice (such as our XR50 bookshelf or XR100 floorstanding speakers) and you’ll have a complete and comprehensive audio system.


Besides the turntable that plays both 33-1/3 and 45 rpm vinyl records, the MTI100 also includes a power amplifier, a vacuum tube preamplifier section, a shielded phono preamplifier, an unbalanced auxiliary input, digital audio coaxial and optical inputs, a Bluetooth receiver, a subwoofer output, stereo speaker outputs for sharing your music with friends, and a headphone jack for personal listening.


The 7 pound (3.18 kg) machined aluminum platter resides on the top of the unit. This and the matching machined aluminum tonearm with anti-skate sit atop a 3/8” (9.5mm) thick piece of glass – the same glass found in the front panels of our larger amplifiers; this in turn sits atop a custom 1/4” (6.35mm) thick metal plate that adds stability. The combined heftiness of both the platter and metal plate helps resist and absorb noise that could be caused by external vibrations.


The belt drive platter with manual speed change is driven by an industrial grade permanent magnet AC synchronous motor with a 2 speed pulley. With this motor, the platter speed is precisely synced to the AC power line’s frequency to deliver precise rotational speeds for playback accuracy. The MTI100 comes with a Sumiko Olympia Moving Magnet cartridge, whose upgraded stylus and cantilever assembly allow for more dynamic punch and improved frequency response.


A Class D amplifier that’s rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms is used to drive a pair of speakers (sold separately) that are connected via the back panel speaker binding posts. Two 12AX7 vacuum tubes power the main preamplifier section, while a separate dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal. Together, the vacuum tube preamplifier and shielded phono preamplifier are a perfect choice to help make your vinyl albums sound their best.


To combine playing vintage vinyl records with modern playback methods, you can also stream music to the MTI100 via its High Definition Bluetooth 4.2 input that ensures you receive the best sound quality possible from your Bluetooth device. An external Bluetooth antenna helps achieve optimal reception and signal quality. The analog and digital audio inputs allow external sources, such as a TV, tuner or CD Player, to be connected. Not to overlook the impact that low sound frequencies can add, a subwoofer output is also included. Finally, for personal listening, the front panel includes a headphone jack that is powered by our High Drive headphone amplifier, which features increased gain and output power and is optimized for virtually all headphone types.


Power, volume and input selection can be controlled by either the included remote or via two knobs on the unit. An illuminated McIntosh logo is located in the top glass panel, while a classic McIntosh-styled die cast aluminum name badge adorns the front of the chassis. Contact your local dealer to learn more about making the MTI100 the center of your home audio system.
