McIntosh Labs MEN220 Room Correction System: What Critics Say | HiFi Hub

United States flag
  • Elevates sound quality with precision engineering
  • Uses sophisticated RoomPerfect™ Room Correction Technology
  • Room correction, custom EQ, and two-way adjustable crossover
  • Precise measurement and correction for up to 8 listening positions

ELEVATING SOUND QUALITY WITH PRECISION ENGINEERING

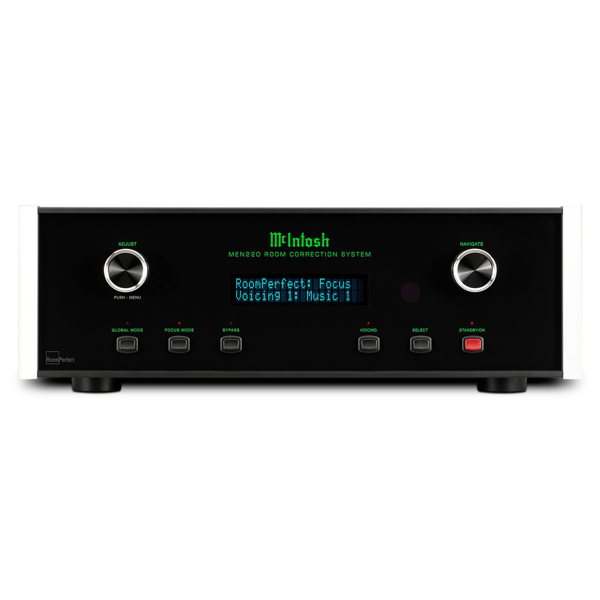

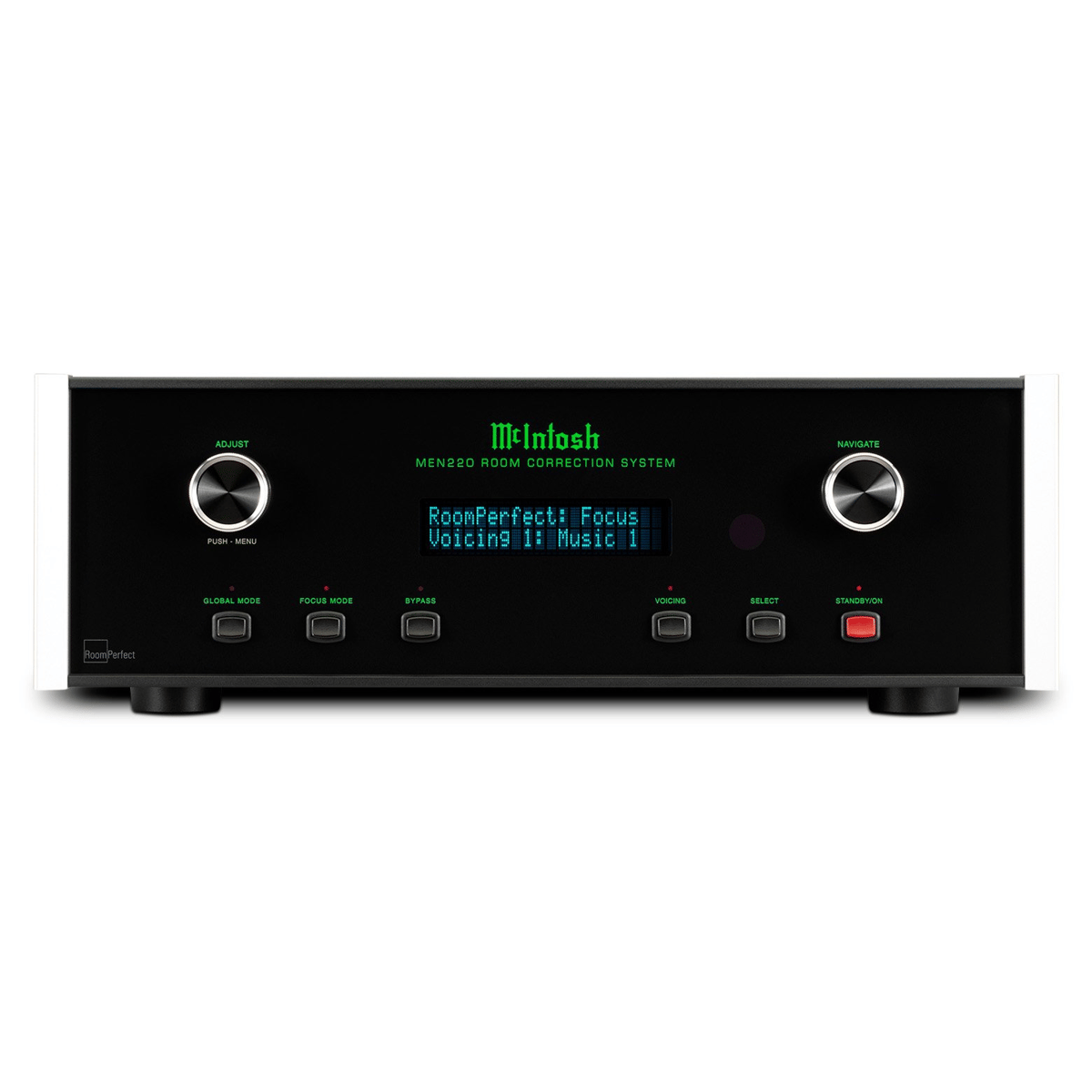

The MEN220 Room Correction System offers an all-in-one solution for sophisticated room correction, custom EQ, and two-way crossover functionality in an accessible stereo component. Each individual feature of the MEN220 has the capability to enhance the acoustic performance of high-quality audio systems; however, when combined, these features unveil an unparalleled level of clarity and precision.


IMPROVE YOUR SOUND

At the heart of the MEN220 is RoomPerfect, one of the most advanced systems for adapting a sound system to the unique acoustic environment of your room. RoomPerfect intelligently analyzes the audio characteristics of your speakers and the specific acoustic traits of your space, then adjusts the audio signal for a sound profile precisely tailored to the room’s size, shape, and acoustic qualities.


This technology allows for flexible speaker placement without compromising sound quality. Position your speakers against a wall, in open space, or asymmetrically from the listening position, and RoomPerfect will adjust the audio to deliver optimal sound performance.


The MEN220 supports precise measurement and correction for up to eight distinct listening positions and provides a Global Room Correction mode for listening from any point in the room. It includes six preset EQ curves tailored for different music genres and allows for the creation of up to six additional custom EQ profiles.


ENHANCED FUNCTIONALITY

The MEN220’s adjustable crossover simplifies bi-amping your speakers, featuring two pairs of balanced and unbalanced outputs to connect to your power amplifier(s). Additionally, it offers both balanced and unbalanced inputs for seamless integration with your preamplifier via balanced cables or unbalanced cables


Operation is straightforward, with control options available through the front panel, the included remote control, or a web interface. Power Control ports enable synchronized on/off functionality with other McIntosh components via Power Control cables


The MEN220 showcases McIntosh's signature design, with a black glass front panel, rotary knobs, push buttons, and an illuminated logo. Contact your local dealer to add the MEN220 Room Correction System’s transformative capabilities to your audio system.


Manufactured under license from Lyngdorf Audio A/S. RoomPerfect is a registered trademark and the RoomPerfect logo is a trademark of Lyngdorf Audio A/S. (C) Lyngdorf Audio A/S 2009.


Read full description
View at McIntosh Labs
Specifications7 reviews & sources

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

YouTube Reviews

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Total Harmonic Distortion
0.002% from 20Hz to 20,000Hz
Maximum Input Voltage
4.5V Unbalanced and Balanced
Output Voltage
2.0V Unbalanced and Balanced
Maximum Output Voltage
4.5V Unbalanced and Balanced
Signal To Noise Ratio (A-Weighted)
100dB
Input Impedance
10K ohms Unbalanced and Balanced
Voltage Gain
0dB
Output Impedance
50 ohms
Crossover Filter Types, Order and Slope
Butterworth, 1st order, 6dB/octaveButterworth, 2nd order, 12dB/octaveButterworth, 4th order, 24dB/octaveLinkwitz-Riley, 2nd order, 12dB/octaveLinkwitz-Riley, 4th order, 24dB/octaveLinkwitz-Riley, 8th order, 48dB/octave
Balanced Input
1
Balanced Output
1 (High)1 (Low)
Unbalanced Input
1
Unbalanced Output
1 (High)1 (Low)
Balanced Microphone Input
1
Network Connections
1
USB Inputs
1 (For Service Only)
USB Input Type
Type A
Power Control Inputs
1
Power Control Outputs
1
Data Input
1
Rear Panel IR Sensor Inputs
1
Microphone and stand included
Yes
Power Requirement
100V ~ 50/60Hz at 35 watts110V ~ 50/60Hz at 35 watts120V ~ 50/60Hz at 35 watts220V ~ 50/60Hz at 35 watts230V ~ 50/60Hz at 35 watts240V ~ 50/60Hz at 35 watts
Standby Power Requirement
<0.5 Watts
Unit Dimensions (W x H x D)
17-1/2" (44.45cm) x 6" (15.24cm) x 16-1/2" (41.9cm)
Unit Weight
15 lbs (6.8 kg)
Shipping Weight
24.5 lbs (11.1 kg)
Room Correction
Display
Parametric EQ
DSP Crossover
Balanced Output
Balanced Line Output

Manufacturer's Description — McIntosh Labs

  • Elevates sound quality with precision engineering
  • Uses sophisticated RoomPerfect™ Room Correction Technology
  • Room correction, custom EQ, and two-way adjustable crossover
  • Precise measurement and correction for up to 8 listening positions

ELEVATING SOUND QUALITY WITH PRECISION ENGINEERING

The MEN220 Room Correction System offers an all-in-one solution for sophisticated room correction, custom EQ, and two-way crossover functionality in an accessible stereo component. Each individual feature of the MEN220 has the capability to enhance the acoustic performance of high-quality audio systems; however, when combined, these features unveil an unparalleled level of clarity and precision.


IMPROVE YOUR SOUND

At the heart of the MEN220 is RoomPerfect, one of the most advanced systems for adapting a sound system to the unique acoustic environment of your room. RoomPerfect intelligently analyzes the audio characteristics of your speakers and the specific acoustic traits of your space, then adjusts the audio signal for a sound profile precisely tailored to the room’s size, shape, and acoustic qualities.


This technology allows for flexible speaker placement without compromising sound quality. Position your speakers against a wall, in open space, or asymmetrically from the listening position, and RoomPerfect will adjust the audio to deliver optimal sound performance.


The MEN220 supports precise measurement and correction for up to eight distinct listening positions and provides a Global Room Correction mode for listening from any point in the room. It includes six preset EQ curves tailored for different music genres and allows for the creation of up to six additional custom EQ profiles.


ENHANCED FUNCTIONALITY

The MEN220’s adjustable crossover simplifies bi-amping your speakers, featuring two pairs of balanced and unbalanced outputs to connect to your power amplifier(s). Additionally, it offers both balanced and unbalanced inputs for seamless integration with your preamplifier via balanced cables or unbalanced cables


Operation is straightforward, with control options available through the front panel, the included remote control, or a web interface. Power Control ports enable synchronized on/off functionality with other McIntosh components via Power Control cables


The MEN220 showcases McIntosh's signature design, with a black glass front panel, rotary knobs, push buttons, and an illuminated logo. Contact your local dealer to add the MEN220 Room Correction System’s transformative capabilities to your audio system.


Manufactured under license from Lyngdorf Audio A/S. RoomPerfect is a registered trademark and the RoomPerfect logo is a trademark of Lyngdorf Audio A/S. (C) Lyngdorf Audio A/S 2009.
