More fun with PC audio. Easy control of high-resolution sound quality at your fingertips.

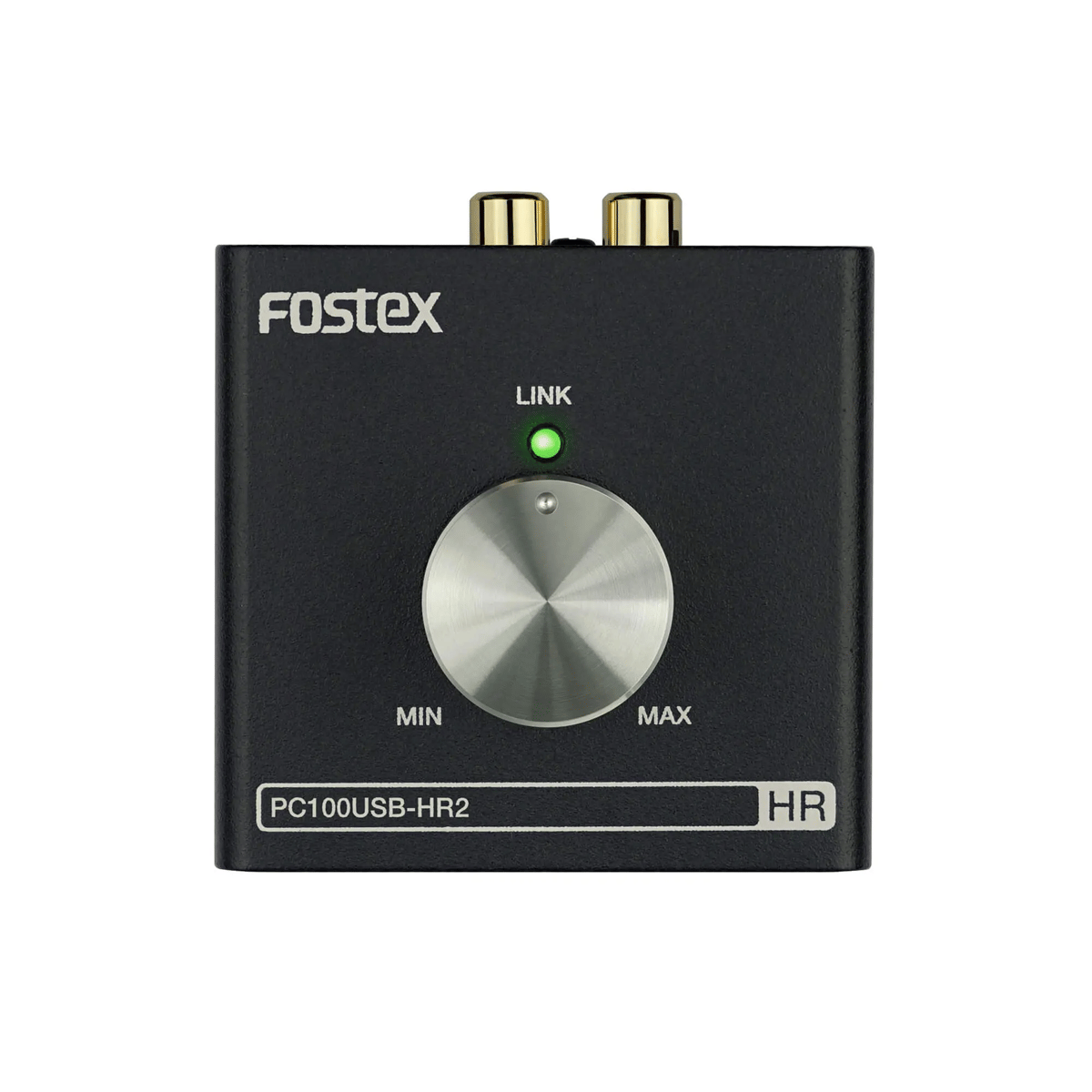

The PC100USB-HR has undergone a model change and now shares the same design as the "PC Hi-Res" series. The new model adopts a fearless square form with a small black body and a large silver volume knob made of machined aluminum.

Note for use with Mac

Operation may become unstable on some Macs with the M1 chip.

There is a high possibility that this symptom is caused by hardware and is not expected to be resolved by software updates, etc.

The problem can be resolved by connecting through a USB hub.

Features

Main Features

The PC100USB-HR has undergone a model change. The PC100USB-HR shares the same design as the PC100d-HR with optical digital input and the PC200USB-HR with built-in amplifier in the “PC Hi-Reso” series. The new PC200USB-HR shares the same design as the PC100d-HR with optical digital input and the PC200USB-HR with built-in amplifier in the “PC Hi-Reso” series. It is a gadget that you want to always have by your side without getting in the way on your desktop.
Basic functions are the same as those of PC100USB-HR.

PC100USB-HR is a 24bit/96kHz Hi-Resolution compatible version of PC100USB, which has become a standard PC gadget with convenient volume control at your fingertips. The PC100USB-HR is a 24bit/96kHz high-resolution version of the PC100USB, which is a standard PC gadget with convenient volume control at the user’s fingertips.

It is equipped with a DAC, RCA pin jacks (output) for connection to active speakers such as the PM series, and a PHONES jack for connecting headphones. It can also be used as a headphone amplifier.
When headphones or other devices are connected to the PHONES jack, they are not output to the RCA pin jacks (output).

USB bus-powered operation eliminates the need for a separate power source. It is also a simple high-resolution device that operates with Windows and Mac OS standard USB audio drivers (compatible OS: Windows 7 or higher, Mac OS X V10.6 to macOS10.12Sierra).

Depending on the OS and playback software used, it may be necessary to select (switch) the device as a playback device in the settings, etc.

*Cannot be used with playback software that uses a dedicated driver other than the OS standard USB Audio driver.

Includes one USB 2.0 cable (AB type/1m) and two RCA pin cables (1m). ●One USB 2.0 cable (AB type/1m) and two RCA pin cables (1m) are included for immediate use by connecting to a PC or active speakers without the need to purchase additional cables.
