Fostex P1000K

Easy speaker craft experience The "Kansupi" series.

The clear mid-high range and moderately damped bass, achieved by the use of a lightweight cone and high-loss rubber edge, allow the listener to enjoy the localization and sense of sound field that only a small-diameter full-range speaker can provide.

Features

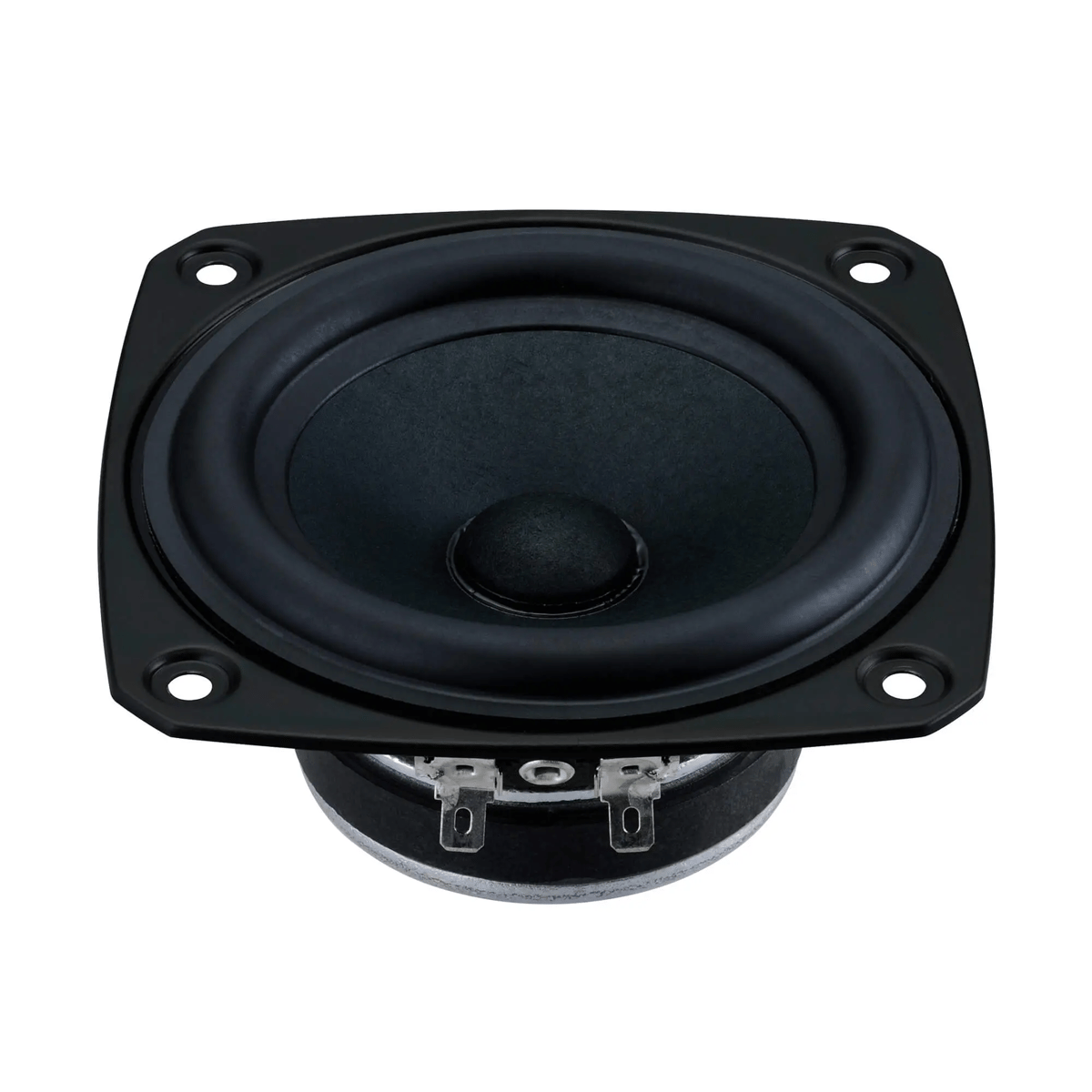

Enjoy the appeal of full-range speakers with ease 10cm diameter full-range speaker unit

Banana pulp blended lightweight cone / High-loss foam rubber edge
The cone paper is made of banana pulp mixed with wood pulp adjusted to two different physical properties to provide sufficient rigidity and loss in spite of its light weight. The edge is up-rolled to achieve a high stroke, and a high-loss foam rubber edge is used as the material.

●Mechanical 2-way center cap
The center cap is made of the same material as the cone paper to enhance tonal uniformity. It is directly connected to the voice coil bobbin and has a mechanical 2-way structure to extend the reproduction bandwidth of the high frequency range.

●Faston 205 connection terminal
Faston 205 type terminals are used for input terminals.
