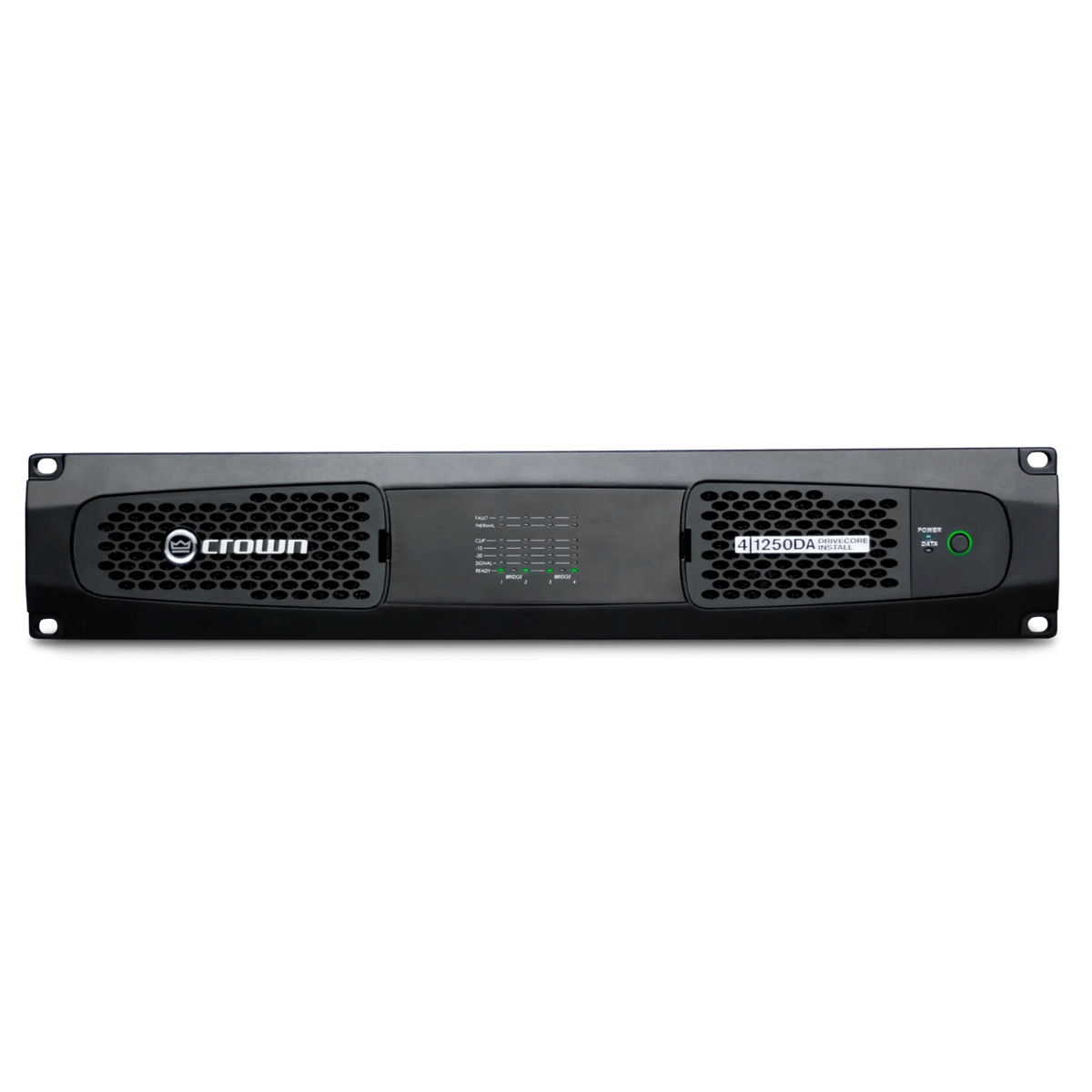

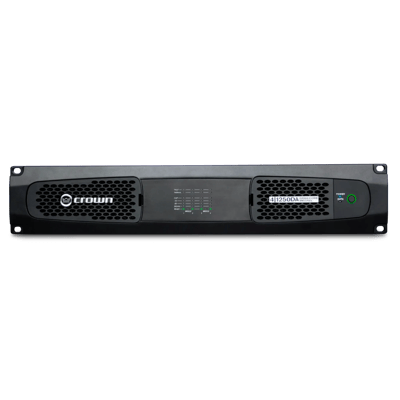

Crown DCi 4|1250DA

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp's advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport. This amplifier is EN 54-16 Compliant for life safety applications.

INTEGRATED DANTE™ / AES67 NETWORKED AUDIO

Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers.

NETWORK CONFIGURATION, MONITORING & CONTROL

Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.

PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORT

GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.

DIGITAL SIGNAL PROCESSING

DSP capabilities include the following:

• LevelMAX Limiters
• Input/Output EQ
• Crossover
• Delay
• Matrix Router
• Speaker Line Monitoring

EN 54-16 COMPLIANCE

Part 16 of the European Union's (EU) EN 54 standard for fire detection and alarm systems has a specific requirement for voice alarms, which output messages in the form of a voice message rather than a traditional siren. This amplifier is certified as part of an EN 54-16 VACIE*, meeting the stringent requirements of a life safety system to serve the needs of hospitality, large venue and other markets.
