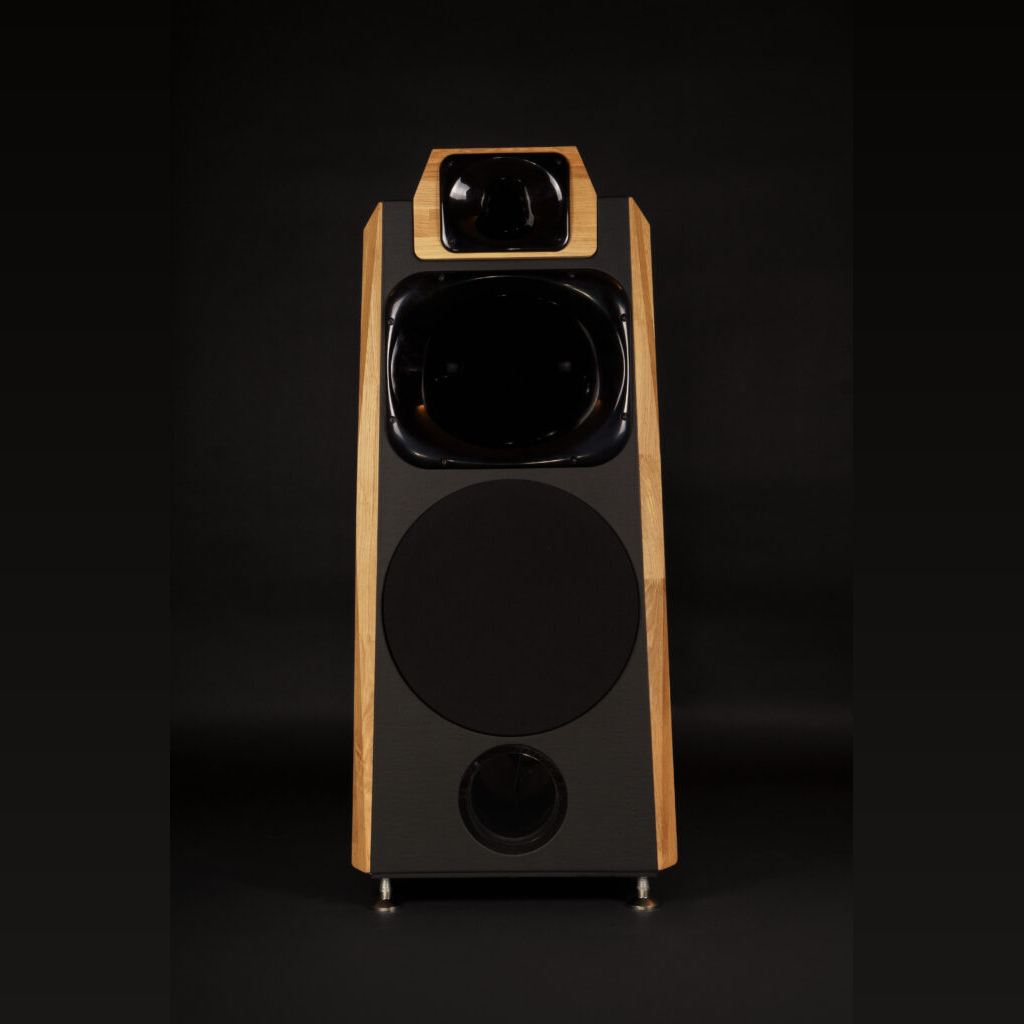

Atlantis Lab AT 38 PRO

Features

• Impedance : 8 Ω
• Sensitivity : 98 dB
• Frequency Response (±1 dB) : 30 Hz – 20 kHz
• Power : 1500 W
• Peak Power : 3,000 W
• Recommended amplifier power : 6 – 1000 W (compatible with tube, transistor and digital amplifiers)

Transducers

• Tweeter : 1-inch Neodymium Eighteen Sound compression driver with horn, covering 6 kHz – 20 kHz
• Midrange Speaker : 1.4-inch compression driver with Eighteen Sound diaphragm, covering 400 Hz – 6 kHz
• Woofer : 38cm Eighteen Sound neodymium paper cone, covering 30 Hz – 400 Hz

Usage Tips

Adjustable Bass Reflex Port

• Factory setting : 14.2 cm
• Adjustment options : Lengths of 10.3 cm, 11.0 cm, 12.3 cm, 13.3 cm, or 14.6 cm for optimal results depending on your room.

Speaker Placement

• Supports being against the wall
