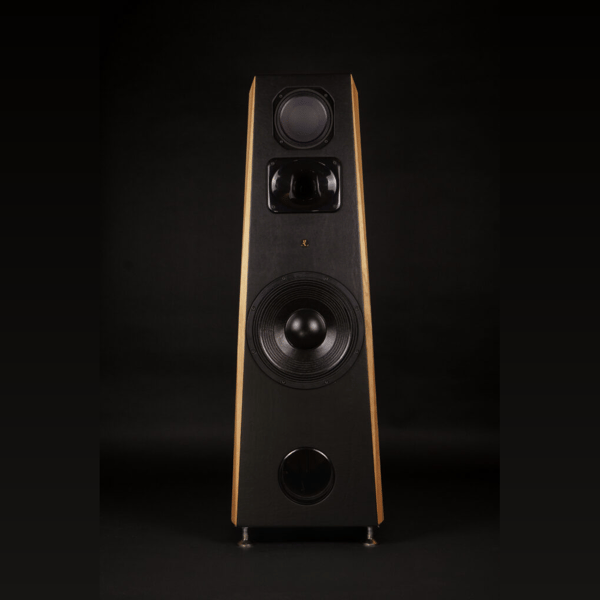

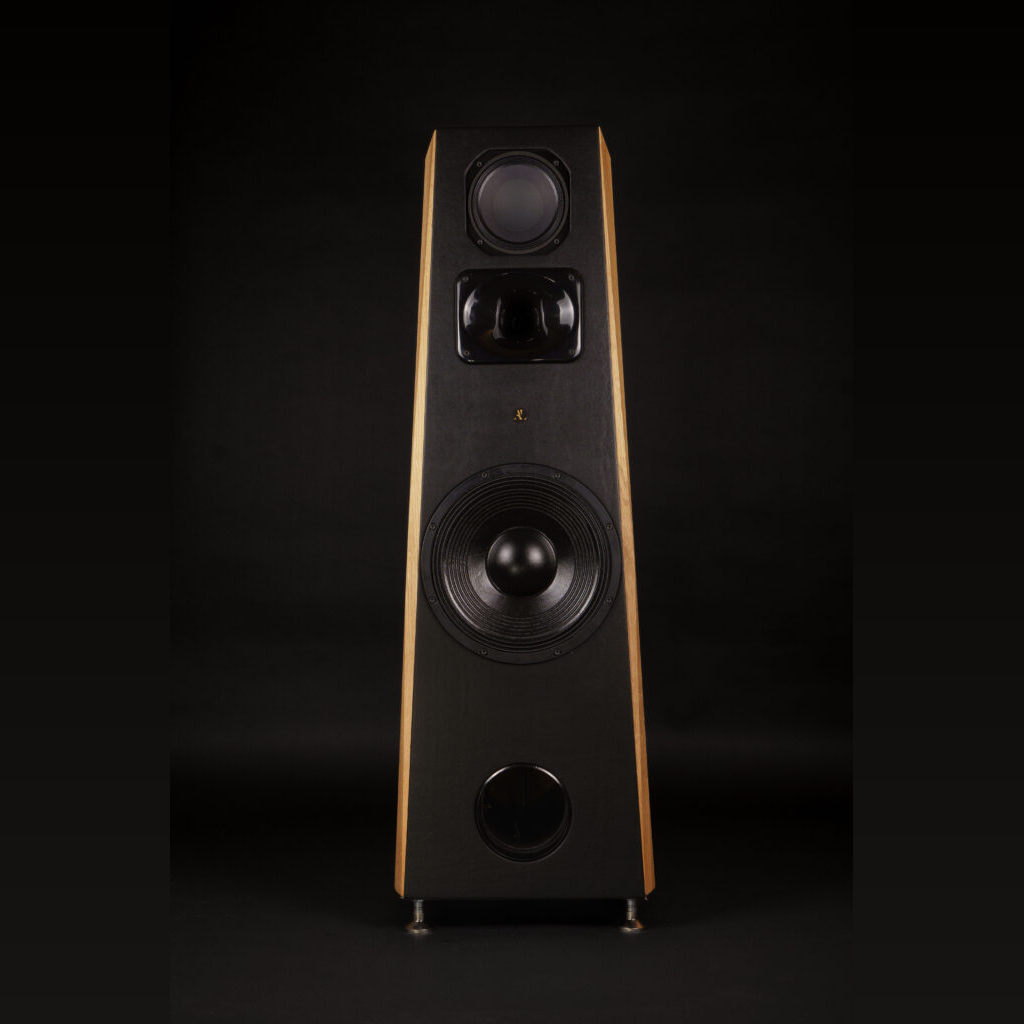

Atlantis Lab AT 31 PRO

Features

• Impedance : 4 Ω
• Sensitivity : 101 dB
• Frequency Response (±1 dB) : 30 Hz – 20 kHz
• Power : 800 W
• Peak Power : 2,000 W
• Recommended Amplifier Power : 6 – 1000 W

Transducers

• Tweeter : 1-inch compression driver with neodymium polypropylene diaphragm and horn
• Midrange Speaker : 16 cm Eighteen Sound Paper Cone
• Woofer
  • 31cm Neodymium Paper Membrane Eighteen Sound (front)
  • 26cm Ferrite paper cone Eighteen Sound (rear)

Usage Tips

Adjustable Bass Reflex Port

• Factory setting : 10.3 cm
• Adjustment options : A length of 12.3 cm may also give good results depending on your room.

Speaker Placement

• Supports being against the wall
