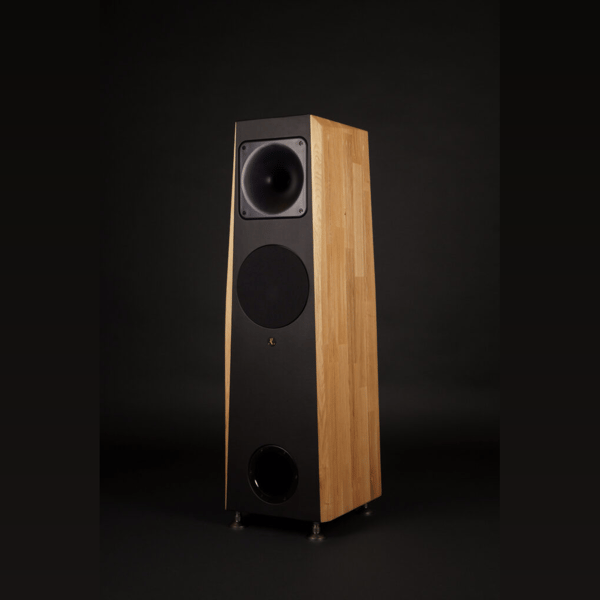

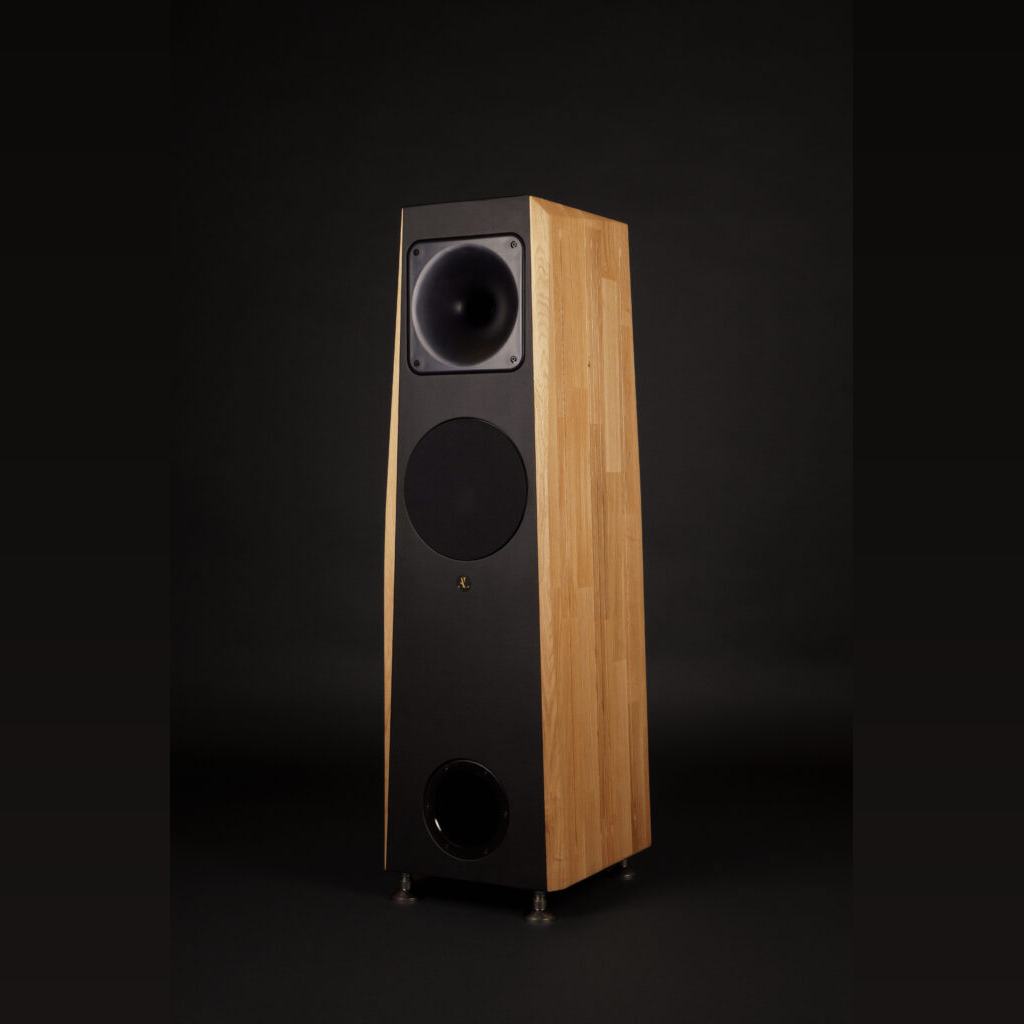

Atlantis Lab AT 23 PRO

Features

• Impedance : 4 Ω
• Sensitivity : 96.5 dB
• Frequency Response (±1 dB) : 33 Hz – 20 kHz
• Power : 300 W
• Peak Power : 600 W
• Recommended Amplifier Power : 6 – 300 W

Transducers

• Tweeter : 1-inch compression driver with 90x90 degree Dolby Atmos horn
• Woofer
  • 21cm lightweight paper cone Eighteen Sound (front)
  • Eighteen Sound 21cm paper membrane with neodymium magnet (rear)

Usage Tips

Adjustable Bass Reflex Port

• Factory setting : 23.0 cm
• Adjustment options : Lengths of 19.5 cm, 21.5 cm, 23.0 cm, 23.5 cm, or 26.5 cm may also give good results depending on your room.

Speaker Placement

• Supports being against the wall
