Aiyima AIYIMA A01 Pro: What Critics Say | HiFi Hub
The A01 Pro brings flexible tone shaping, capable Bluetooth, and subwoofer-ready line output to an ultra-compact system. Cheap Audio Man found it can play loudly without obvious clipping with sympathetic speakers, while its bass, middle and treble controls make it especially useful for relaxed, warmer bookshelf pairings and easy porch, garage or desktop listening.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Kinda Soggy
Sound Quality
68/100
Build Quality
50/100
Features Connectivity
88/100
Value for Money
74/100
Pros
Tone controls and good Bluetooth performance make it easy to tailor an enjoyable casual-listening setup.
Played loudly into ELAC bookshelf speakers without audible clipping or distortion in the reviewer's test.
Variable line output adds useful flexibility for an active subwoofer, external power amp, or preamp-style use.
Cons
Upper frequencies can sound overly forward and gravelly with brighter speaker pairings, even after tone adjustment.
Bluetooth output level is lower than the RCA input.
Its value is less compelling for a full wired system when a separate DAC is required.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
What Reviewers Are Saying
SOUND QUALITY PERFORMANCE 68/100
This amplifier appears sensitive to system matching. The review found a somewhat gravelly, unnatural upper range with Sony speakers, while a more relaxed-sounding pair brought the presentation into better balance; percussion also lacked convincing attack behavior.
Transparency Resolution
75/100
With the Sony SS-CS5, the reviewer heard a top end that was overly prominent and somewhat gravelly rather than fully natural. Switching to the more relaxed BIC America speakers made the sound appreciably more agreeable, suggesting the result depends strongly on speaker pairing.
Tonal Balance Musicality
76/100
The reviewer could not make the A01 Pro sound natural with one speaker pairing even after using its tone controls. With the BIC America BS41, however, its more relaxed treble helped the amplifier sound considerably more balanced, and the reviewer said it can sound pretty good with the right match.
Dynamics
72/100
Percussive initial attacks were described as too forward and not fully in line with the rest of the presentation. On the positive side, the reviewer was able to turn the amplifier all the way up into ELAC speakers without audible clipping or distortion.
Soundstage Imaging
50/100
The review does not meaningfully discuss stereo width, depth, image focus, or layering.
Assessments of Build Quality, Usability, and Overall Propositions.
Build Quality
50/100
The review does not meaningfully address chassis construction, internal components, thermal behavior, or long-term reliability.
Features Connectivity
88/100
The compact A01 Pro provides RCA and Bluetooth 5.1 inputs, with aptX HD and other Bluetooth codecs supported. It also includes tone controls and a line output that can feed an active subwoofer or another power amplifier; the reviewer found Bluetooth sound quality good, though with lower output level than RCA.
Value for Money
74/100
At its roughly $65-$80 asking price, the reviewer felt the proposition was not especially compelling once the cost of a separate DAC is included. The review does not name a specific rival, but its conclusion indicates that buyers comparing complete budget systems should consider alternatives that reduce the need for extra source hardware.
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Mode
- A01 PRO
- Chipset
- TPA3116*2+NE5532*4+QCC3034*1
- Bluetooth
- 5.1 Bluetooth support: 16-24bit 44.1-48khz Supported format: sbc/aac/aptx/aptx-ll/aptx-hd
- Replaceable OP amp chips
- SRT3609SM, OPA2604, OPA2314, LM4562, JRC5532, OP275GSZ, OPA1612AIDR, etc.
- Distortion
- 4 ohm/1W/0.03%
- Signal-to-noise ratio
- 100dB
- Frequency response
- 20Hz-20kHz (±1.5dB)
- Input sensitivity
- 0.775V
- Speaker impedance
- 4-8 ohms
- Output power
- 80Wx2 /4 ohm
- Input mode
- RCA, Bluetooth
- Supported equipment
- computer, CD, mobile phone, MP3, etc.
- Output mode
- speaker output (passive speaker) Line out output
- Line out
- Connect an active subwoofer or power amplifier
- Working power supply
- DC15-24V, 3A or more
- Size
- 130*90*33MM

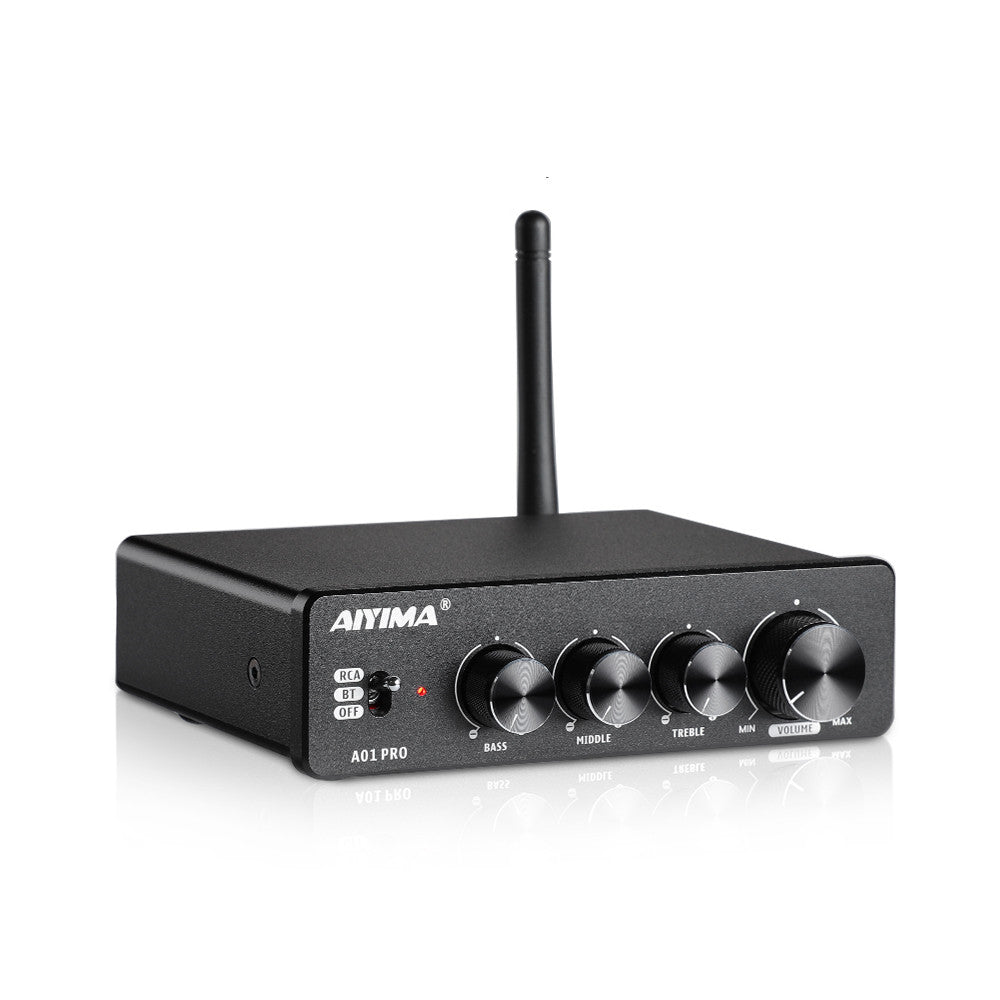

Manufacturer's Description — Aiyima
Feature
1. With two audio inputs, one AUX input is convenient to connect to traditional wired analog signal inputs; there is also one Bluetooth wireless input, which can be easily connected to Bluetooth devices such as mobile phones and computers, without being bound by wires, and easily enjoy music.
2. Adopt treble, midrange, and low tone design: increase the treble, midrange, and low tone so that all frequency bands of the audio source are within an adjustable range. Users can enhance or attenuate the midrange, treble, and low frequencies according to their personal preferences until they achieve the best sense of experience. (Most of the treble and bass frequencies on the market).
3. Increase the output of the active device that can be connected, so that the active subwoofer or the next active power amplifier device can be added (which can bring you the continuity of 2.1/4.1 channels).
4. Two TI TPA3116 power amplifier chips are used, and one TPA3116 is used for PBTL mode for each channel: the distortion is lower, it can support greater output power, and the speaker output can support the lowest energy to 2 ohm impedance (most of the market is a TPA3116). 3 NE5532 op amps are used internally.
5. The Bluetooth part adopts imported Qualcomm QCC3034 high-quality Bluetooth 5.1 receiving chip, which brings you low latency, APT-X HD lossless high-definition sound quality.
6. The output power inductor uses shielded inductors to better protect the wires, loops, and coils from the influence of external magnetic fields, as well as to weaken the interference of the electromagnetic fields generated by the circuit to other components.
7. Supply voltage: DC15V-24V, 3A or more. Voltage socket 5.5*2.5mm, negative outside and positive inside. The DC seat uses all-metal materials with fireproof flowers, which is safer to power on and provides a guarantee for stable work with high power.
8. No switch on and off machine impact sound, protect your speaker.
9. Large heat sink, long-term high-power stable work to provide a guarantee.
10. The knob functions are from right to left: total volume adjustment, left and right channel treble adjustment, left and right channel mid-tone adjustment, left and right channel bass adjustment.
Package included
1 Pcs A01 PRO Bluetooth Amplifier
