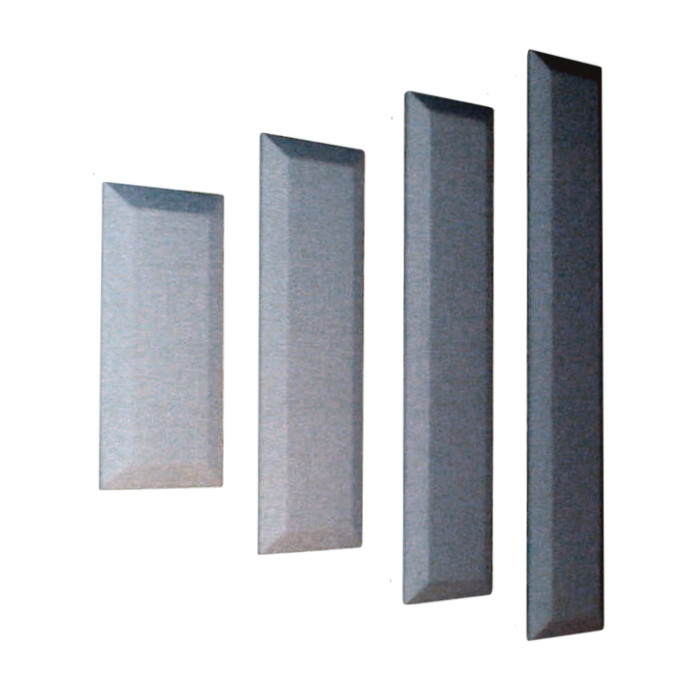

ASC CinemaPanel

​Reflection Control – with Style!

CinemaPanels reduce echo, reverberation, comb filtering, and flutter in your media room. Equally suited to Theater and HiFi use, CinemaPanels improve your room acoustics and decor at the same time! Pick up a 6-pack today for the following uses:

• Improved dialogue clarity in Theater use
• Improved imaging via sidewall reflection control in HiFi use
• Reverberation control in band/rehearsal rooms – better distinction between instruments
• Praise band stage noise control in churches – hear the PA instead of the blurry stage sound
• Improved spaciousness via rear wall diffusion in Control/Mix room use
• Flutter echo control in studio live room recording – calm but not dead
• General reverberation control throughout the home – hear everything better!

Note: CinemaPanels can be purchased individually for $159/each.

Description

Precise machining and hardening is used to achieve the classic edge bevel which defines the CinemaPanel look.  All fibers are then sealed tightly within the unit, preventing leakage of irritating fibers throughout the lifetime of the product.  It is important at ASC that the health and comfort of our customers is not compromised in the name of acoustic treatment. It is also important that our products provide the intended acoustic function.  Our choices of adhesive and fiber-seal material allow the fibers to stay trapped and the sound to be absorbed.

ASC includes specular HF diffusion in each panel, giving you a bright and lively theater experience.  Since the CinemaPanel has a flat absorption response curve above approximately 300 Hz, your room will not be over-deadened.  The 50% efficiency roll-off is 190 Hz.

The rear of each CinemaPanel is finished with clean black fabric, suitable for permanent glue-up applications if desired.  Mounting grommets are included for use with a hanger screw, for easy horizontal or vertical mounting.

Designed For Home Theaters

CinemaPanels are useful in any application where appearance is of the utmost importance.  Repeated requests from Architects inspired our R & D department to design a sound absorbing panel which met three goals: 1) bring sonic and visual calmness, 2) blend well into a home theater, and 3) pass the WAF. We tried dozens of ideas, polling staff, consultants, and customers alike to find the broadest aesthetic appeal.

Finally, we arrived at the CinemaPanel.  At 2″ thickness, this panel will not require adjustment of your seating arrangement to fit.  The standard size is 12″ x 48″ and can be mounted vertically or horizontally depending on your visual and sonic needs. Line both walls of your Theater room with CinemaPanels spaced about one foot apart to bring the true cinema experience to your Home Theater. Lose yourself in the movie as the 3D imaging is perfectly tuned for every seat in the room.
