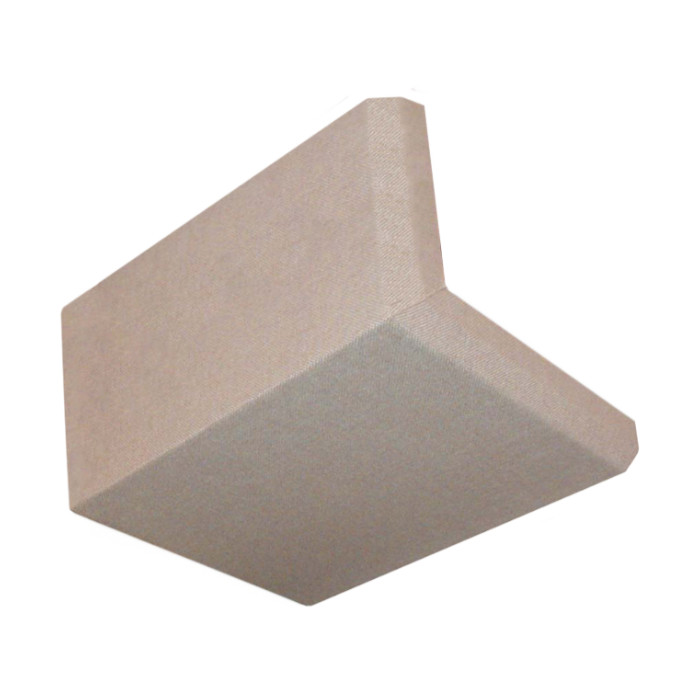

ASC AcousticSoffit System

The ASC AcousticSoffit is a true broadband acoustic device that may be all your room needs!  Hear the benefits of TubeTraps in the wall/ceiling bi-corners and SoundPlanks on the walls without consuming any floor or wall space. Your friends and family may not even know you installed acoustic treatment!

The AcousticSoffit excels in these types of rooms, with these benefits:

• Home Theaters – clear dialog, even bass levels, reduced harshness
• HiFi Listening – articulate bass, sparkly overhead ambience, improved imaging
• Music/Jam Space – less midrange congestion, better instrument separation, less hearing fatigue
• Recording/Mixing – more accurate bass levels, less comb filtering, cleaner signal-to-noise

Cost is determined per section, with typical full-perimeter installations costing $6,000 – $10,000, and single-wall from $2,000 – $3,000.  See Pricing tab below for more details.

Description

With hundreds of hours of real world testing, ASC’s unique solution is the best acoustical soffit available anywhere. Acousticians and architects have known for hundreds of years that a soffit is an excellent sound diffuser.  ASC improved the idea to include deep bass & midrange absorption and lateral scattering in the treble range. As a bonus, the hollow interior allows you to install lighting, conceal wire runs & conduit, or build around HVAC ducts.

The bulk of an AcousticSoffit system is usually built in 24″ long sections. Subtract 16″ for each of the “corner tiles” and then determine how many pieces you need for your wall’s length. We build all but one of the pieces for each wall segment, and you provide final measurements for us to build you a perfect-fitting “keystone” to complete the installation.

Why Install the AcousticSoffit?

Here is your bare room. These are its sonic characteristics.

• Excessive bass buildup in corners = booming & slurring
• Poor stereo imaging
• Low intelligibility/musical articulation
• Poor balance between mains & surrounds

Front Wall AcousticSoffit

• Head-end ringing control = less upper bass and midrange glare
• Room mode reduction = more even bass notes with less boom
• Improved intelligibility = a musical bassline and clear, tight rhythm

Front Wall Soffit + TowerTraps

• Further improved head-end ringing control
• Two-axis mode control
• Great for dual subwoofer installs
• Dramatic look, like a theater proscenium

Full-Perimeter Acoustic Soffit

• Substantial bass control with ZERO footprint
• Upper corner treble range reflection control
• Lateral diffusion = improved ambience, big sound
• Improves balance between mains & surrounds
• Smooth architectural look – does not look like acoustic treatment!

Full-Perimeter + TowerTraps

• For use with a larger sound system
• Ultimate mode control
• Striking appearance

When floor real estate is precious, the ASC AcousticSoffit is the answer to your bass trapping, treble control, and diffusion needs.  By utilizing a large air cavity surrounded by a flow-resistive membrane made from porous absorptive material, the AcousticSoffit provides the benefits of flat wall panels and large-diameter free standing TubeTraps in a tidy, easy-to-install package.

This is a custom engineered product, sized specifically to integrate into your room and make it sound and look its best.  Our standard size unit protrudes 16″ from the wall and 10″ down from the ceiling, which works very well for most rooms. This treatment is roughly equivalent to installing 16″ TubeTraps along the entire length of your wall/ceiling intersection!

ASC engineering has taken care of the math to ensure that your room remains sonically controlled without becoming over-deadened.  You will hear much more sonic detail from your speakers, from fine string work in orchestral passages to crystal-clear movie dialog and singers.  True broadband control can be yours as musical bass lines emerge and sparkling ambience surrounds you.
