Yukiseimitsu Audio - Yuki AP-01

Control board

The electronic circuit board – the heart of the platter control – has been redesigned to achieve even greater rotational stability.

Conductive Platter

The platter itself is conductive, suppressing static electricity. A unique sound field can be obtained by listening to a record directly on the platter without using a turntable sheet

Magnetic bearing structure

A non-contact bearing is used in the rotating section from the platter to the shaft by means of a permanent magnet, which is in contact with only one sphere at the lowest point. Magnetic repulsion maintains a constant spacing around the bearing, enabling quiet, sustained rotational motion without bearing noise.

Independent pitch control

Pitch control is independent for each line number, allowing individual pitch adjustment and storage of pitch settings for each 33, 45, and 78 rpm.

Exclusive tone arm with hysteresis brake

This particular arm designed specially for this turntable incorporates a non-contact brake with a unique mechanism that uses the power of magnets. The arm retainer is shielded by an anti-vibration material so that external vibration does not affect the arm. Various measures are taken to extract only the pure sound groove information.

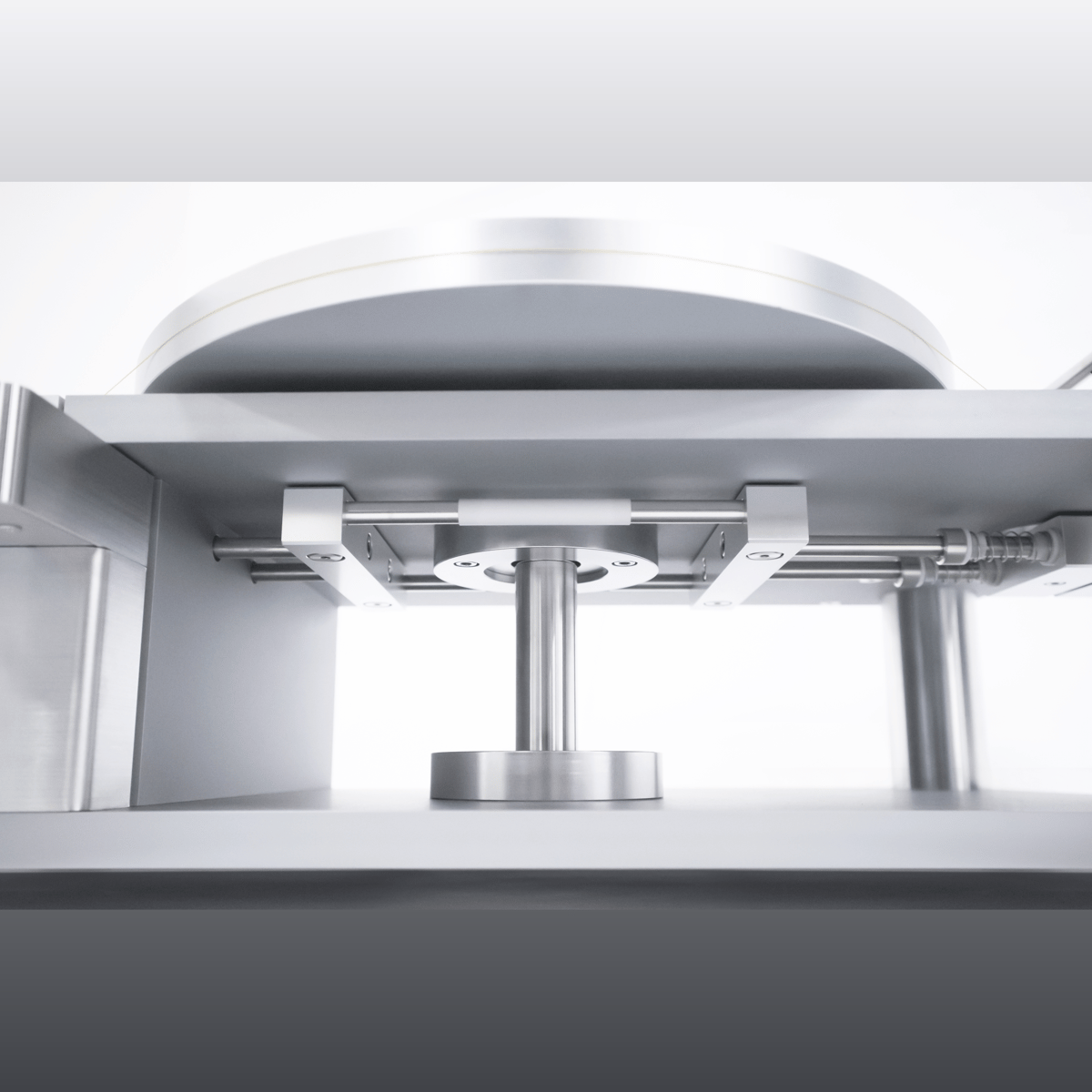

Drive thread with symmerical layout

Only the rotational power is transmitted to the platter by suppressing the moment in the tipping direction. Two horizontally connected shafts balance the tension received from the drive thread.
