The headphone amplifier for excellent music enjoyment

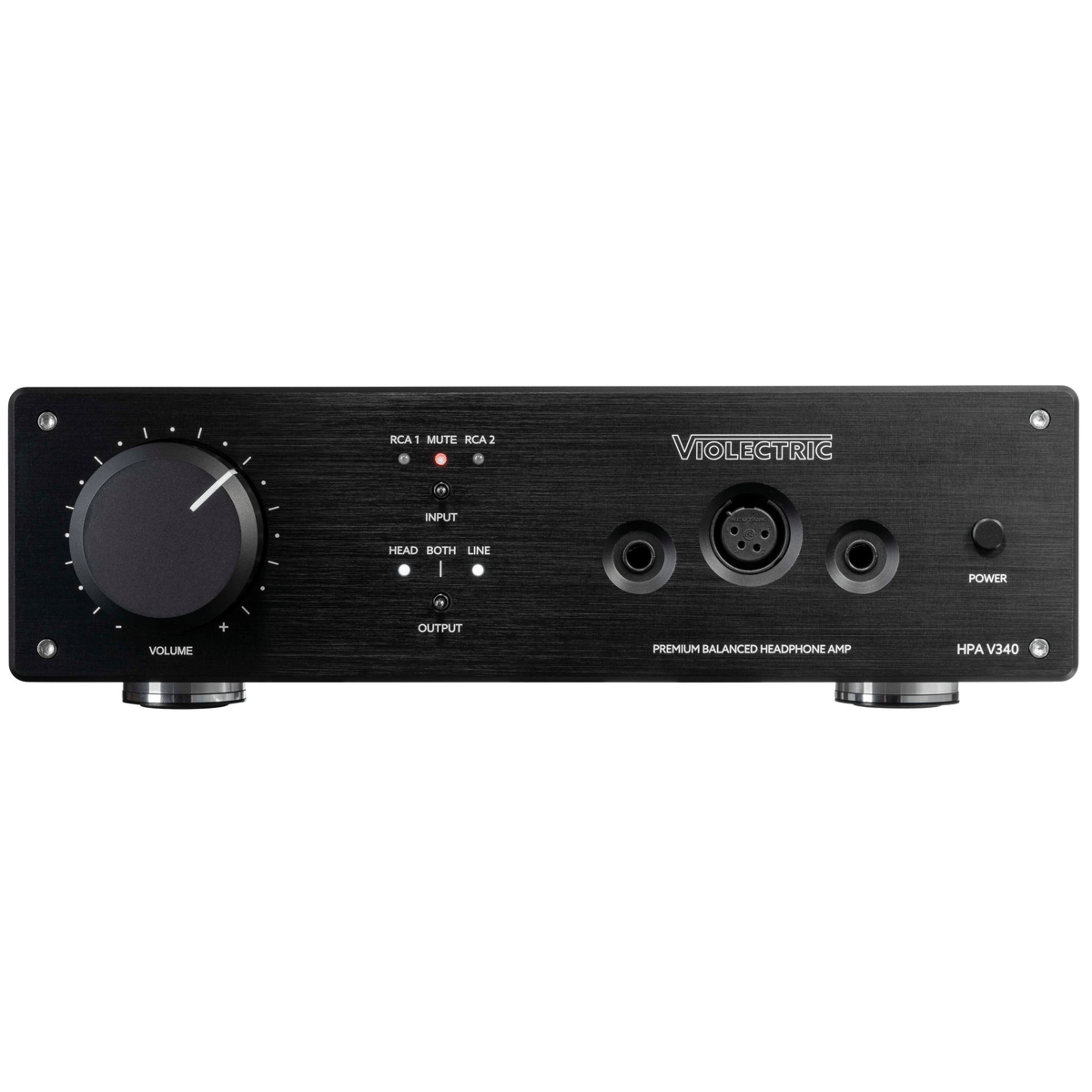

The Violectric HPA V340 is a high-end headphone amplifier for audiophiles. The new model offers the brilliant circuitry of its big brother, the V550. This makes the HPA V340 ideally suited to power any headphone design and driver technology. With high output voltage and high output power, both low-impedance and high-impedance headphone types can be operated effortlessly – even magnetostats are no problem for the Violectric HPA V340. Violectric's typical pre-gain circuit also allows the level of the amplifier to be adjusted to the preferred headphone model for the perfect symbiosis of amplifier and driver. Developed and manufactured in the German factory using first-class components, the HPA V340 impresses in every respect.

Inputs & outputs

Inputs analog, stereo:
-> 2x RCA unbalanced

+++ Inputs switchable on front with switch +++

Outputs headphones:
-> 2x jack 6.3 mm, unbalanced
-> 1x XLR 4-pin, female, balanced

Outputs analog, stereo:
-> 1x RCA unbalanced
-> 1x XLR male balanced

+++ Outputs switchable on front with switch (Head / Both / Line) on back with button (Line Pre / Post) +++

Balanced headphone output

When listening to music over loudspeakers, you are part of the auditorium. When listening to music over “normal” headphones, you are in the shoes of the conductor. When listening to music over “balanced” headphones, you are part of the orchestra.

When headphones are operated symmetrically, the channel separation is increased even further. Balanced headphones usually have a 4-pin XLR connector or a Pentaconn plug. For true balanced operation, a high level of effort is required in the form of four built-in power amplifiers.

PRE-GAIN

The headphone amplifier is positioned between the music source and the headphones. The source can have different levels of power, and the headphones can have different levels of sensitivity. The Lake People PRE-GAIN is used to compensate for these differences and to optimize the headphone amplifier for every conceivable combination. This is expressed in minimal noise, the lowest distortion factor and the best channel balance.

The PRE-GAIN adjustment on the Violectric HPA V340 is located on the back and can be individually set in 7 levels (-18, -12, -6, 0, +6, +12, +18 dB)

Perfect protection of the headphones

Various circuits protect the headphones from unclear operating states, DC voltage, excessive operating temperature and overload:

Delayed ON, Instant OFF
Every headphone amplifier causes interference during the switch-on and switch-off process. This interference can damage the connected headphones. The headphones are connected to the amplifier with a delay via relays and the associated electronics and are disconnected immediately after switching off. This protects the headphones themselves from the device electronics as long as no clearly defined conditions are to be expected.

DC Monitoring
The outputs are monitored for harmful DC voltage. As soon as a predefined value is exceeded, the headphones are switched off.

Overload Monitoring
The power consumption is constantly measured during operation. If predefined parameters are exceeded, the headphones are switched off.

The unique Violectric technology

• Lowest noise - due to a very small internal amplification. This makes the amplifier's own noise inaudible.

• High output voltage - due to an internal operating voltage of 50 volts. This makes it ideal for high-impedance headphones.

• High output power - due to powerful amplifiers that can deliver far more power than even the most demanding headphones require. Therefore, ideally suited for headphones with low impedances as well as magnetostats.

• High damping factor - due to the lowest output impedance. Therefore, ideally suited to drive even the most difficult headphones without influencing them. The advantage for an uncompromising frequency response.

Violectric – the brand for music lovers

• Violectric brings decades of expertise and the uncompromising quality standards of professional Lake People products to the world of hi-fi – and with passion! Music lovers around the world rave about the seamless integration into their systems: from a convenient and versatile input section to precisely adjustable gain control and digital interfaces with first-class converter technology at broadcast level – no wish remains unfulfilled.

• The entire Violectric portfolio impresses with intuitive usability, which is otherwise only known from professional audio technology. And there are no compromises when it comes to quality either: every single component is carefully selected to guarantee the highest sound fidelity.

• But Violectric not only stands for outstanding technology, but also for timeless elegance. The products are integrated into a noble, high-quality housing and fit perfectly into any sophisticated hi-fi setup. For audiophile perfectionists who refuse to compromise, the Niimbus series offers the ultimate – at the very highest level, both visually and technically.

Features

• 2 unbalanced inputs via gold-plated RCA jacks
• PRE-GAIN: 7-stage internal gain adjustment
• High-performance balanced stereo amplifier (4 output stages)
• Compact and extremely robust aluminum housing
• Made in Germany
