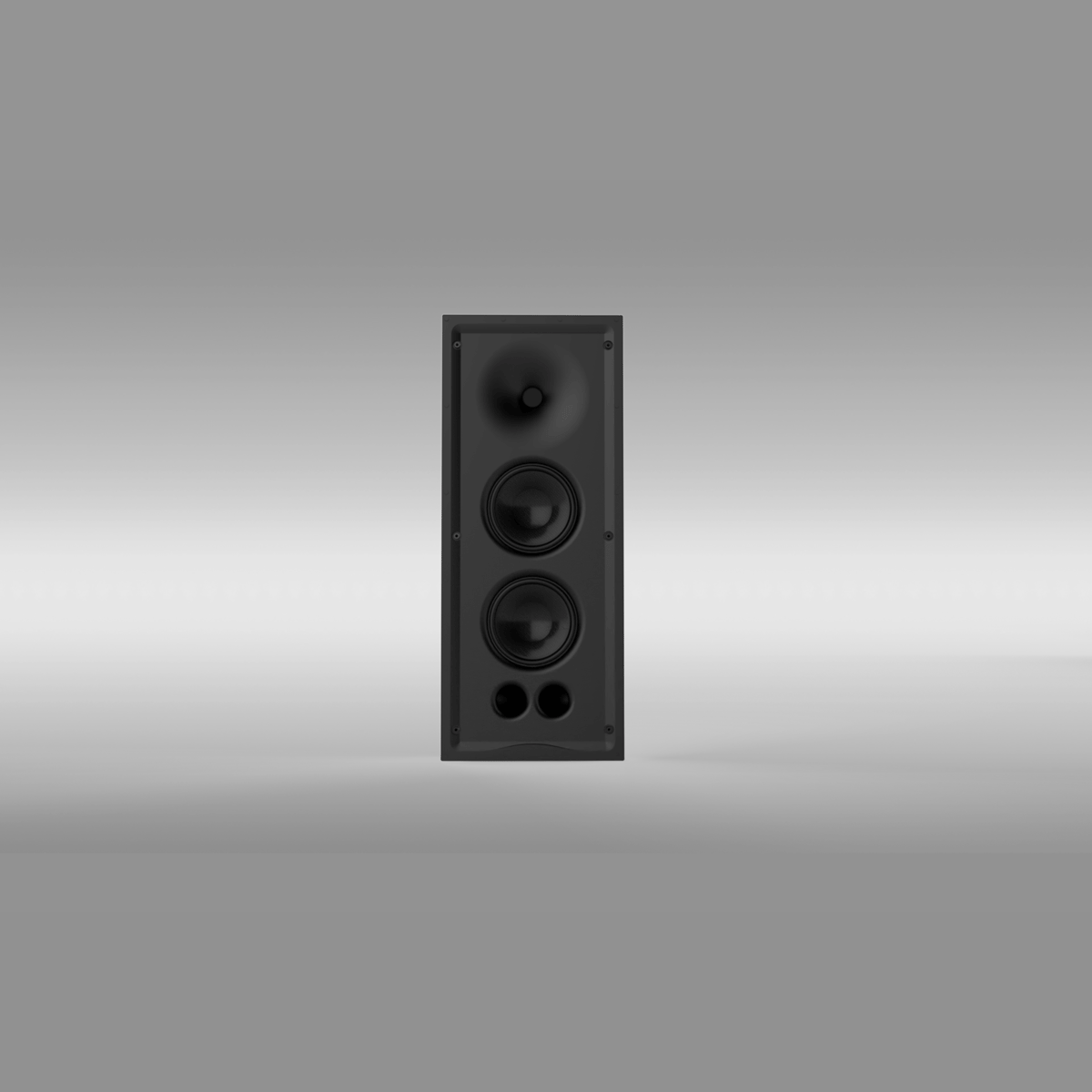

Theory Audio Design iw25 High-Output In-Wall Loudspeaker System
The iw25 fully-enclosed in-wall loudspeaker is the remarkable sb25 model, with a mechanical enclosure to adapt it to in-wall mounting. All of the sb25’s performance attributes remain: robust, wide-bandwidth and dynamic sound with uncanny accuracy and naturalness. The ability of the iw25 to fill large spaces with full-bodied, thrilling sound is shocking. Finally big sound in background and foreground applications does not have ugly, or even visible!
The iw25 in-wall loudspeaker can be operated at low-Z (4-ohms impedance) or by employing its included internal power transformer at hi-Z (70V/100V) at 60W, 30W, 15W and 7.5W.
Like its sister product, the sb25, the iw25 discreet in-wall loudspeaker will have you rethinking how you deploy audio in your premium system designs.
IS THAT REAL? YES, IT’S REAL.
The iw25 Listening-Axis Frequency Response is astonishingly flat and extended insuring the highest accuracy and highest-resolution available. This is the most accurate in-wall loudspeaker available.
(SOUND)POWERFULLY GOOD.
The CEA2034 or “Spinorama” data encapsulates the performance of a loudspeaker in a typical room. The iw25 “Listening Window” and Sound Power responses are ruler-flat, exactly the response that delivers accurate timbre, unmatched detail and coherence to the listener’s ears.
ACCURATE ALL THE WAY TO NINETY.
The iw25 horizontal off-axis response is predictable and smooth all the way to 90 degrees.
EVEN THE REFLECTIONS SOUND GOOD.
Horizontal reflections are the room reflections you hear the “most”. Ceiling and floor reflections typically factor into perceived sound quality to a much lesser degree. You can see the Total Horizontal Reflections (green) is extended and smooth indicating that the reflected sound from an iw25 loudspeaker is neutral in timbre and wide in bandwidth.
OVERLAPPING CIRCLES.
The iw25 offers wide dispersion all the way to the very top audio octave. Everyone hears wide-band, detailed sound.
GAIN CONTROL.
The “Directivity Contour Plot” shows the speaker’s dispersion characteristics using color to represent output magnitude. A quick inspection of the iw25’s contour plot reveals its very wide, but very uniform dispersion.
“SEE” THE SOUND.
Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself. The 0° axis represents the axis perpendicular to the speaker baffle.. The iw25 coverage is very wide and uniform, all the way to the top audio octave: >120° at -6dB even at 12kHz! Everyone in a broad area receives full-range sound with delicate, extended treble response. Only -90 to +90 is shown because the iw25 is an in-wall loudspeaker.
AS TALL AS IT IS WIDE.
The iw25’s vertical directivity is wide and predictable - especially for a two-way speaker with multiple LF drive units - making it easy to get uniform, broad-band coverage in every listening location.
Dealers selling Theory Audio Design near you
Theory Audio Design iw25 — High-Output In-Wall with Pro-Level Headroom
The iw25 High-Output In-Wall Loudspeaker System is built to deliver exceptional SPL and controlled low-end from a slim in-wall footprint, making it a go-to for demanding residential and commercial installs. Dual 5" carbon-fiber woofers, a 1.4" polymer compression high-frequency driver and an integral back can yield surprisingly deep, defined bass and projecting highs while preserving vocal clarity when paired with the required model-specific DSP.
Performance highlights include very high sensitivity (spec'd 94–108dB) and robust AES/continuous/peak power handling that support authoritative dynamics and long-term headroom. Wide conical coverage (125°/160° figures) favors even dispersion across seating areas and outdoor patios, while DSP tuning lets installers tailor the midrange and treble for accuracy in-room.
Construction is pro-grade: molded ABS frame, powder-coated steel back can, Euroblock terminals with parallel output, and six retractable dog ears simplify installation. Weather-resistant grille options and a 15 lb chassis make the iw25 suitable for indoor/outdoor use when properly equipped. For systems that require high SPL, tuned voicing and installer-friendly hardware, the iw25 offers a compelling, purpose-built solution.
Pros
- Class-leading low-end for an in-wall form factor driven by dual 5" carbon-fiber drivers and an integral back can, delivering controlled bass down to the mid-40Hz range.
- Exceptional dynamics and headroom thanks to very high sensitivity (94–108dB) and robust AES/continuous/peak power ratings, enabling sustained high SPL without obvious strain.
- Professional, installer-friendly build — molded ABS frame, powder-coated steel back can, Euroblock terminals, selectable 4Ω/70V/100V operation and retractable dog ears streamline installation and rugged use.
&
Cons
- Requires a Theory-certified DSP loudspeaker processor and a matching Theory loudspeaker controller amp, adding system complexity and cost compared with standalone passive speakers.
Sound Quality
88/100
Bass
89/100
Dual 5" carbon-fiber low-frequency drivers plus an integral back can and a stated bandwidth to 46Hz (-10dB) deliver class-leading low-end for an in-wall form factor. High sensitivity and AES power ratings support loud, controlled bass without obvious strain. Given the 5" driver sizes, this sits in the 'excellent-for-size' band rather than tower-level performance.
Mid
89/100
1.4" polymer compression HF with dual carbon-fiber LFs and model-specific DSP processing imply focused, clean midrange and tuned voicing. The requirement for Theory-certified DSP suggests the midband is intended to be corrected and accurate in-room, preserving vocal clarity and body.
Treble
87/100
Compression driver extends to ~23–24kHz per the spec sheet, offering strong HF extension and projection. With DSP correction required, highs can be smoothed and de-emphasized if needed; absent DSP tuning, compression drivers can sound forward to some listeners.
Soundstage Imaging
86/100
Wide conical coverage figures (125°/-6dB; 160°/-12dB) promise broad, even dispersion — good for coverage in-room or outdoors. As an in-wall design, image depth/three-dimensionality will be more room-dependent than free-standing speakers, but controlled dispersion supports consistent staging across seating positions.
Dynamics
90/100
Very high sensitivity (spec range up to 108dB) and robust AES/continuous/peak power ratings (200W/400W/800W) point to excellent macro- and micro-dynamic capability and headroom. The design is explicitly 'High-Output' and intended to reach >117dB SPL, though optimal dynamics depend on using the required controller amp and DSP.
Show Less
Build Quality
90/100
Molded ABS frame, powder-coated steel integral back can, Euroblock terminals, and 6 retractable dog ears reflect professional-grade construction and installer-friendly engineering. Weather-resistant grille options and a substantial 15 lb chassis further support ruggedness for indoor/outdoor installs.
Features Connectivity
81/100
Passive in-wall speaker baseline applied (passive single-connection baseline). Euroblock connector with parallel output, selectable 4-ohm or 70V/100V operation, and engineered mounting hardware justify a small positive adjustment from baseline.
Value for Money
82/100
At the listed $1,500 price point this is a premium, pro-/high-end residential/commercial in-wall product; the combination of high output, rugged build, selectable Hi-Z, and required model-specific DSP makes it a strong value for installers and projects needing high SPL and tuned performance, but less cost-effective for casual buyers.
