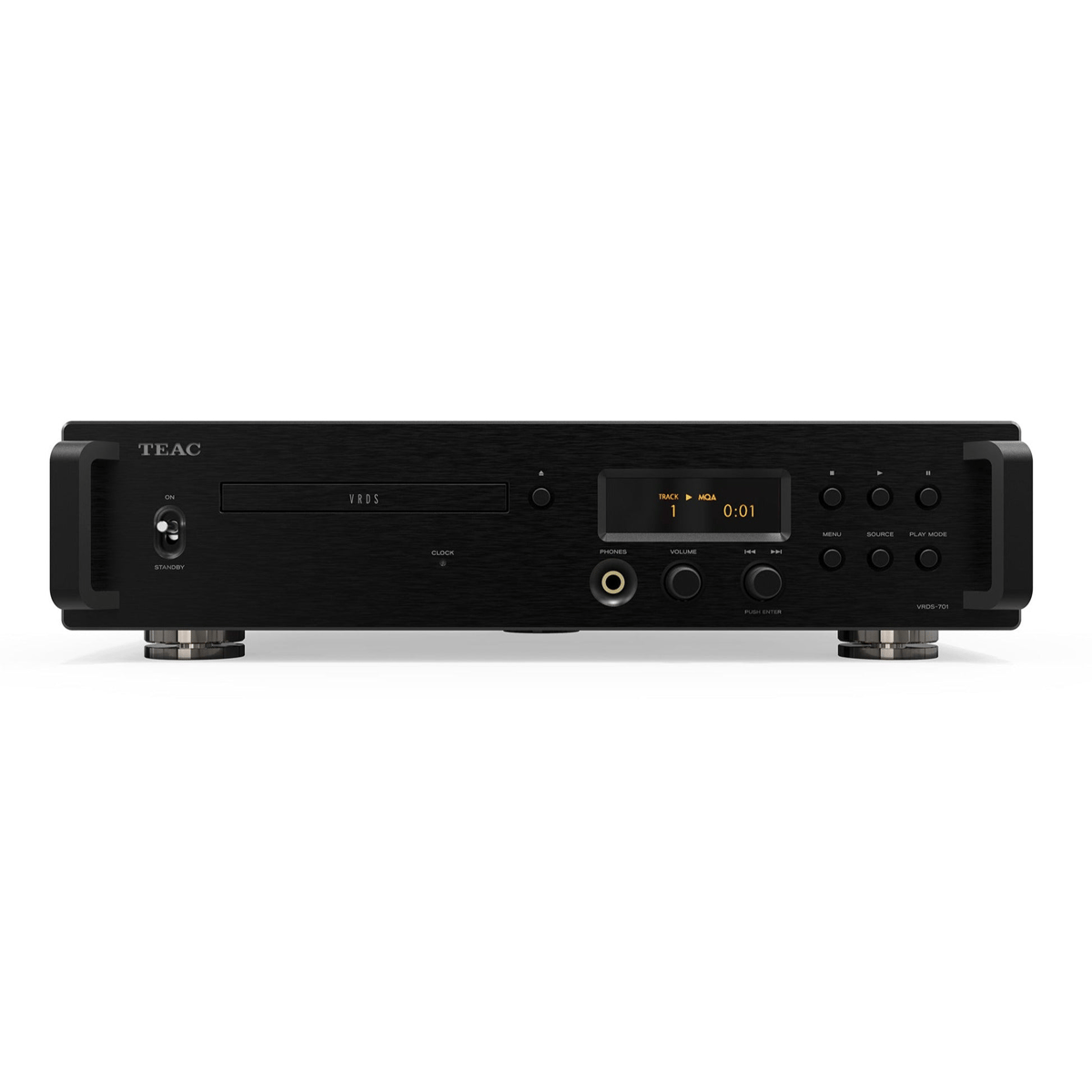

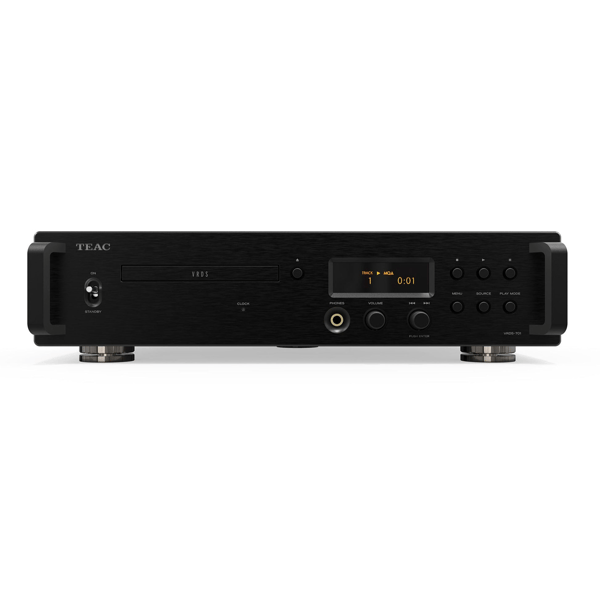

The VRDS-701 does it all. As a dual mono USB digital-to-analog convertor (DAC), pre-amplifier, headphone amplifier, and CD player, this product captures all the information you need to hear music just the way it was intended.

The VRDS-701 utilizes TEAC's proprietary ΔΣ (Delta Sigma) 32-bit discrete DAC which is comprised of discrete circuitry using field-programmable gate array (FPGA) and incorporating original algorithms on both channels. The end result? Improved signal to noise (S/N) ratio – each channel processes in monaural mode and delivers DSD512 (22.5MHz) native and 384kHz/32-bit pulse-code modulation (PCM) playback capabilities.

With a full MQA decoder built-in, your highest res file formats such as FLAC and WAV will playback with all the quality and depth of the original recording. Great for those seeking a powerful and refined approach to high fidelity home entertainment.

The pinnacle in CD transport technology, this single-well CD Player utilizes a Vibration-Free Rigid Disc-Clamping System (VRDS) derived from the TEAC’s flagship HiFi line, Esoteric. Incorporating our newly developed Delta Sigma 32-bit discrete DAC and functioning as a preamplifier, the VRDS-701 matches seamlessly with the TEAC AP-701B Stereo Power Amplifier.

This TEAC-original CD drive mechanism reduces rotation vibration of the disc itself, as well as unwanted mechanism vibration by clamping the CD to an aluminum turntable with the same diameter and maximizing inertial mass in order to stabilize rotation. Servo current is reduced with the turntable by correcting disc warping and distortion and improving the relative optical axis precision of the pickup and disc pit side. This realizes reduced disc reading errors and creates outstanding audio quality.

Four TEAC HCLD buffer amp circuits allow different drive modes (fully balanced and parallel), working in-sync with TEAC QVCS volume control for ideal sound quality. The VRDS-701 also features three upconversion settings: 2x, 4x, and 8x.

Featuring a dedicated driver that uses a high-output circuit with low distortion, the VRDS-701’s headphone amplifier achieves a high S/N ratio and 2000V/μs through rate, equivalent to a current transmission enhancing output line driver. This will maximize the potential of your headphones so you can kick back and relax in perfect stereo.

Ensure accurate timing and synchronization with dual on-board clocks.

Using Bulk Pet USB transmission technology, the VRDS-701 achieves constant transmission at a fixed data volume, enabling steady data transmission by smoothing the loads for processing via transmitting computer and receiving USB DAC. Since the audio quality can be altered by changing the load on the computer, four preset transmission modes can be chosen according to the desired audio quality.

CD section

Supported Media

Audio CD, CD (CD-R/CD-RW * CD-DA format)

(8cm CDs not supported)

Analog outputs

Analog LINE audio

Connector

XLR x1 (L/R), RCA x1pair (L/R)

Impedance

XLR：220Ω, RCA：180Ω

Maximum output level

FIXED 0dB, XLR/RCA: 2.0Vrms

(1kHz, Full scale, 10kΩ loaded)

FIXED +6dB, XLR/RCA: 4.0Vrms

VARIABLE, XLR: 12Vrms, RCA: 6Vrms

Frequency response

5Hz - 80kHz (+1dB/ −6dB)

S/N ratio

105dB (A-Weight, 1kHz)

Total harmonic distortion

0.002% (1kHz, LPF: 20 - 20kHz)

Input signal: DSD 11.2MHz, Measured output: RCA

DSD LPF: FIR1

Headphone Amp section

1/4” (6.3mm) stereo jack x1

Maximum output

500mW+500mW (into 32Ω)

Digital inputs

USB

1 (Type-C, USB2.0 or more)

Input signal type

Linear PCM, 44.1/48/88.2/96/176.4 /192/352.8/384kHz

16 bit, 24 bit, 32 bit, DSD.2.8/5.6/11.2/22.5MHz

COAXIAL

RCA x1

Input level

0.5Vp-p

Input impedance

75Ω

Linear PCM, 32/44.1/48/88.2/96/176.4/192kHz, 16 bit/24 bit DSD2.8MHz

OPTICAL

TOS (JEITA RC5720C) x1

-24.0 to -14.5dBm peak

Linear PCM, 32/44.1/48/88.2/96/176.4/192kHz

16bit/24 bit, DSD2.8MHz

Clock sync input

BNC x1

Input frequency

10MHz

50Ω

Rectangle wave: equivalent to TTL level,
Sine wave: 0.5 to 1.0Vrms

Digital outputs

Output level

Output impedance

External control

Trigger input (12V TRIGGER IN)

3.5mm Mono mini jack x1

12V, 1mA

Trigger output(12V TRIGGER OUT)

12V

Maximum current supply

100mA

General

Power

AC 120V, 60Hz

AC 220-240V, 50/60Hz

Power consumption

40W

Standby power

0.4W

Overall dimensions

444 x 111.3 x 333.6mm (including protrusions)

Weight

11.8kg

Operating temperature

+5℃ to +35℃

Operating humidity

5％ to 85％ (no condensation)

Storage Temperature range

−20℃ to +55℃

Accessory

Accessory AC cord x1, Remote (RC-1338) x1, Dry battery (AAA) x2, Foot pad x3, Manual x1
