The Pre-amplifier-Streaming-DAC

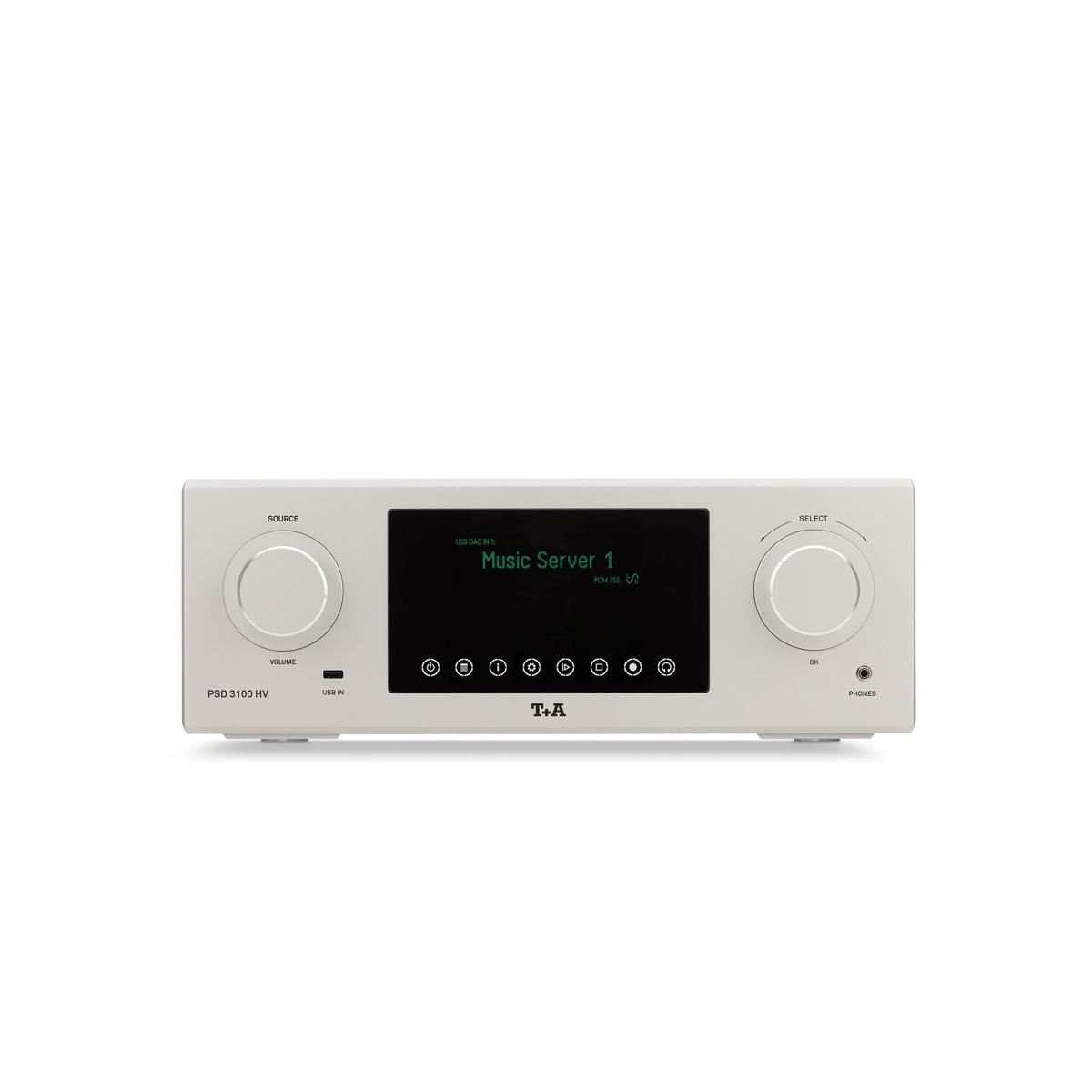

The PSD 3100 HV was developed with the requirement to combine the performance of our finest pre-amplifiers and converters with the convenience of use of a multi-source player. With an array of professional digital inputs, FM, FM-HD, DAB+ radio, Bluetooth and Connect services, and streaming for local and global Internet and network sources, the PSD 3100 HV is capable of directly converting everything digital into top-quality analogue signals. As such it can be considered as the consistent audiophile answer to all those whose music collection has left the age of the CD behind. The PSD 3100 HV is the universal control centre for a High-End system, requiring only the connection of suitable power amplifiers or active loudspeakers. At the same time the device embodies our uncompromising scientific methodology: optimum reproduction quality without harmful interaction between the various analogue and digital sub-assemblies is only possible in a multi-function device if it is based on unique technologies and our many decades of expertise.

Streaming & Sources

The core of the PSD 3100 HV is the network circuit board, designed with audiophile standards constantly in mind. Its task is to process incoming WLAN, LAN and USB master-mode signals, and provide access to high-quality streaming services such as Tidal, Qobuz and Deezer. For local applications the new third-generation T+A streaming client directly streams PCM data at a quality of up to 384/32 (HD) from the network, and DSD files with a resolution up to DSD 256.
As well as extraordinarily high reproduction quality, the design of the streaming client concentrates on an equally high level of operating convenience: the streaming services, managed by the free airable Service, and Internet radio stations, can be managed completely automatically in the background.
The contradiction between mobile data transmission and reproduction quality is a long-standing problem, but the PSD 3100 HV overcomes it by employing high-quality transmission and cast protocols, which are even capable of handling uncompressed Flac files without loss of quality.
In addition to Internet radio access, which is integrated into the streaming client, the PSD 3100 HV provides three further radio services: FM, FM-HD and DAB+. These services offer unusually high sound quality thanks to the digital intermediate frequency, demodulation and stereo decoder output stage employed, while the circuit’s high sensitivity enables the PSD to receive even weak signals and process them cleanly: this, the most classic of all signal sources, can only sound so wonderful - via cable and through an aerial - because all these qualities are combined intelligently.

Pre-amplifier & Outputs

The PSD 3100 HV also operates as a top-class pre-amplifier, since it features a Class-A pre-amplifier of discrete construction employing HV technology, a relay-controlled volume control with Balance and Loudness function, switchable tone controls and “State of the Art” double mono output stages. Its high-quality XLR and asymmetrical RCA outputs deliver the signal to power amplifiers and active loudspeakers, while headphones can be connected using a symmetrical 4.4mm Pentaconn headphone output. This derives its signal from a special high-performance headphone amplifier which delivers a very stable voltage and constant current as well as sounding excellent, enabling it to control any dynamic headphones effortlessly, with ample reserves.

Digital inputs

The Digital Connecting Board of the PSD 3100 HV handles the full bandwidth of all modern digital sources: professional AES/EBU, BNC plus optical and co-axial SP/DIF inputs are present, as are two HDMI inputs and one HDMI output. All of them enable the user to connect any type of external source, such as set-top boxes, disc mechanisms and memory devices. The IPA-LINK socket is intended for connection to our PDT 3100 HV reference SACD disc mechanism, whose data it handles in full resolution; in contrast to the SP/DIF inputs it therefore also copes with SACD files. The USB B (Device Mode) input based on the Thesycon chip provides a means of processing ultra-high resolution formats from the PC up to DSD 512 and PCM 768 by means of subsequent converter modules.

Path Separation Technology

We are firm believers in utterly faithful sound reproduction, for this is the only method of conveying the intention of the performer, without adding or subtracting anything. This means that the converters have a crucial role to play, since they are required to restore the original analogue music from the digital data whilst remaining as close to the original as possible. That is why we honour the fundamental sonic differences between the current digital audio formats of PCM and DSD, by using dedicated converters for each format, instead of opting for one converter to handle both formats. We term that technological feat Path Separation Technology:. PCM formats are converted using our double differential quadruple converter at up to 32 bit / 768 kSps, while DSD formats employ the unique T+A True 1-bit DSD D/A converter at up to DSD 512 (24.6 MHz).

Converters & Filters

The goal of the PSD 3100 HV is to deliver a breath-taking level of resolution, dynamism, linearity and freedom from distortion, even when dealing with critical passages and minute musical details. Therefore, the PCM quadruple converter features a double symmetrical circuit with eight 32-bit BurrBrown converters, which correct non-linearities at an above-average standard, and reduce the already minimal residual noise by a further 6 dB. Despite being a high-performance audiophile instrument, the quadruple converter is also able to be tuned to the listener’s taste: Various oversampling algorithms, give the user the opportunity to fine-tune the system’s sound characteristics individually in terms of timing and frequency range. Four filter types are available; the Bezier filters developed by us in-house have optimum timing, and no trace of oscillation in the analogue signal.
Our T+A True 1-Bit DSD converter is also absolutely unique because it broke with convention: standard converters process DSD signals by converting them into PCM and reproducing them in PCM mode. In our opinion this process causes the innate quality of DSD recordings to be lost. We therefore developed the True 1-Bit DSD converter: this circuit handles the DSD data in native form rather than converting them, and completely retains the audible advantages of a bitstream.
