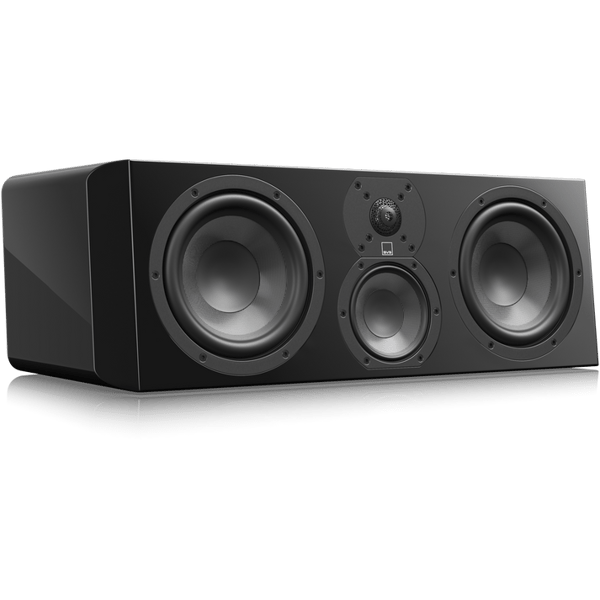

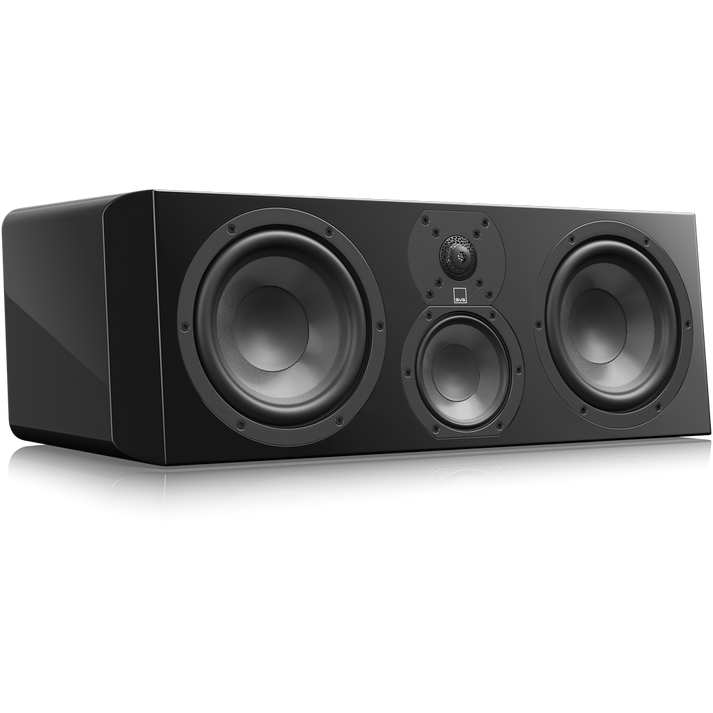

SVS SVS Ultra Evolution Center

Specifications

Frequency Response / Acoustic Data

• Frequency Response: 40 Hz-40 kHz (+/-3 dB). • Nominal impedance: 6 ohms. • Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 225 watts

Speaker Specs

• Center Channel Loudspeaker • Piano gloss black, piano gloss white, real black oak veneer finish options • Dual gold-plated 5-way binding posts • Dual 1.6” wide-flared rear-firing ports  • Cloth grille with magnetic retention system • Elastomer stick-on bumper feet • Cabinet Dimensions: 7.68” (H) x 22.05” (W) x 11.39” (D) / 195mm (H) x 560mm (W) x 289.4mm (D) • Overall Dimensions: 7.83” (H) x 22.05” (W) x 11.78” (D) / 199mm (H) x 560mm (W) x 299.2mm (D) (includes grille, feet, and binding posts) • Shipped Dimensions: 12.0” (H) x 25.8” (W) x 16.3” (D) / 306mm (H) x 655mm (W) x 414mm (D) • Weight Unboxed: 26.8 pounds / 12.2 kgs • Shipped Weight: 30.9 pounds / 13.6 kgs

Driver Specs

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity. • Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response. • Silver tinsel leads for optimal signal transfer and power handling. • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband. • Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation. • Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response. • Long stroke motor and suspension for high output. • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband. • Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation. • Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover & Cabinet Specs

• 3-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board • Tweeter-to-Midrange crossover: 2.2 kHz • Midrange-to-woofer crossover: 450 Hz • Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage. • Vertically Aligned Tweeter-Midrange array creates perfect on and off-axis frequency response and blending for clear vocals and the largest possible “Sweet Spot” ensuring transparency and clear vocals at every listening position. • Dual 6.5” woofers drive deep, accurate bass for the most demanding center-channel content. • 4.5” midrange driver in a dedicated acoustic-suspension sub-enclosure ensures pristine midrange output and blending with woofers and tweeter. • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response • Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers. • FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
