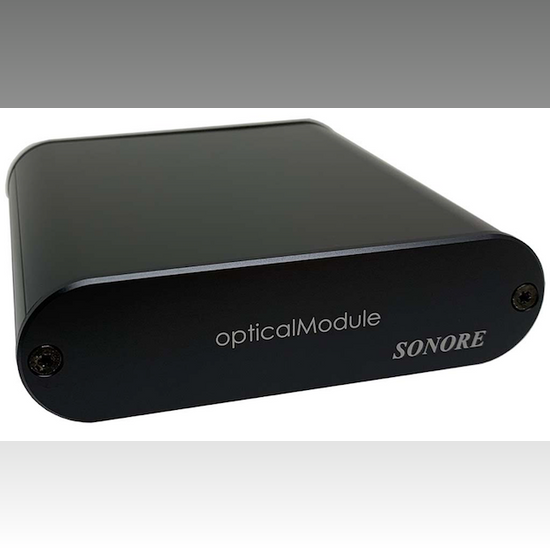

The Sonore opticalModule Deluxe is a bi-directional fiber media converter or FMC. The opticalModule has an SFP fiber optic transceiver and an RJ45 connector on the same side. The unit can be used to add fiber-optic networking to your existing wired network or convert your existing fiber optic network to a wired network. The unit can be used with all Sonore products or any other network server or endpoint.

The opticalModule Deluxe is systemOptique Certified.

FEATURES

• Supports both 100 speed and 1000 speed network devices
• Supports flow control for NAA streaming
• Enclosure matches the ultraRendu and opticalRendu
• Compatible with the Sonore Rendu (ethernet input with USB output and SPDIF/i2s output)
• Compatible with the Sonore endPoint (ethernet input with SPDIF/AES-EBU output)
• Compatible with 100 speed Ethernet DACs and DDCs (PS Audio Direct Stream, dCS Network Bridge, etc.)
• Compatible with any music server
• Improved circuit layout
• Supports the use of the Sonore dual faceplate
• Includes a link LED
• Includes LEDs on the ethernet connector that indicate 100/1000 speed streaming
• All connections are on the rear faceplate
• Four (4) high-quality ultra low noise linear regulators
• Fixed frequency high-quality ultra low jitter FEMTO oscillator
• External power input jack
• RJ45 connector
• systemOptique Certified
• SFP cage with generic SFP fiber optic transceiver included
• Power connector: 2.1mm x 5.5mm (center +)
• Power input: 5-9 VDC
• Dimension: 3.5"x2.2"x.7"

TYPICAL USAGE

Optical Ethernet to Cable Ethernet Converter

Cable Ethernet to Optical Ethernet Converter
