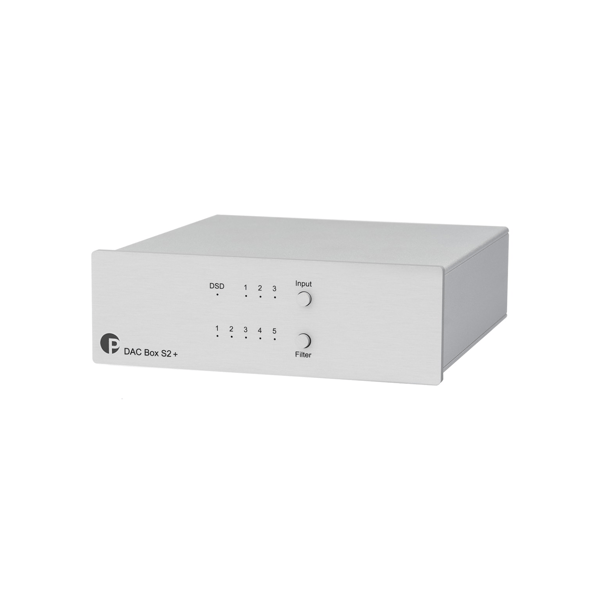

Pro-ject Audio Systems - USA DAC Box S2 +

High End DAC with 32bit and DSD256 support

miniature high quality digital to analogue converter!

DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the asynchronous XMOS USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can’t affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!

DAC Box S2 + comes in silver or black.

Features

• High end ESS Sabre ESS9038 DAC
• Proprietary clock circuity design
• Organic polymer capacitors and thin film miniMELF resistors
• 32bit / 768kHz PCM support
• DSD64, DSD128 & DSD256(DSD over PCM)
• Up to 24bit/192kHz for optical & coax inputs
• 5 selectable digital filter characteristics
• 1 proprietary optimum transient digital filter
• Synchronization of all internal oscillators
• Jitter as low as 100 Femtoseconds!
• Gold plated four layer PCB
• Full alu/metal sandwich casing in silver or black
