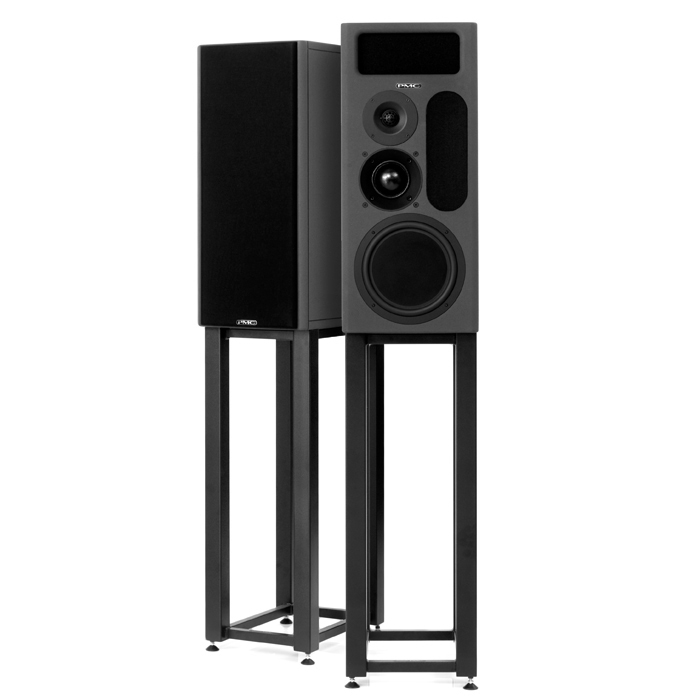

PMC IB2S-AII

The three-way IB2S-AII offers discerning users all the attributes of PMC’s large ATL™ reference active monitors but in a more compact form

The three-way IB2S-AII offers discerning users all the attributes of PMC’s large ATL™ reference active monitors but in a more compact form. They are ideal for high-end reference monitoring in both stereo and surround formats.

The DSP-controlled, Class-D powered cabinets make use of PMC’s ATL™ (Advanced Transmission Line) bass-loading technology, providing a smoothly controlled, high-resolution low-frequency response. Each cabinet features PMC’s hand-built preparatory drivers - the 10-inch carbon-fibre/Nomex™ piston, 75mm fabricdome mid, and the 34mm soft-dome tweeter. The power is supplied by PMC’s ultra-low distortion devices that are conveniently rack mountable, providing HF 275W, MF 550W and LF 1200W of acoustically transparent power.

This single cabinet monitor features user-adjustable HF and LF shelving filters, ±8dB input level trim, and an AES3 digital input, as standard. The input sensitivity of the balanced analogue inputs can also be adjusted from +4dB to +16dB. In addition, the EQ, level trims and analogue/digital input  election settings can be adjusted from a distance using an RJ45-connected remote, which is supplied as standard.

• Type: 3-way ATL™ active reference monitor

• Frequency response: 25Hz-25kHz

• Analogue & digital (up 96kHz) inputs

• Power per channel: 2025W (HF 275W, MF 550W, LF 1200W)

• Effective ATL™ length: 2.4m(8ft)

• Maximum SPL: 125dB

• Three personal balance presets for multiple users

Options:

• Dedicated vertical and horizontal centre channel versions

• Tailor made, high mass, 33” Studio Frame Stands
