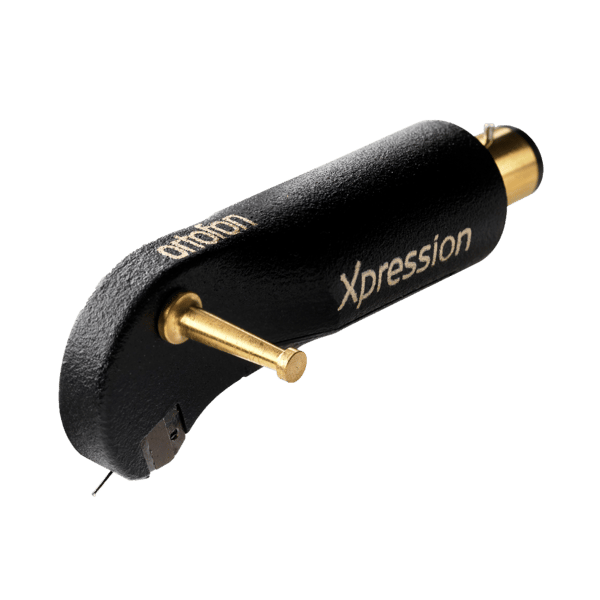

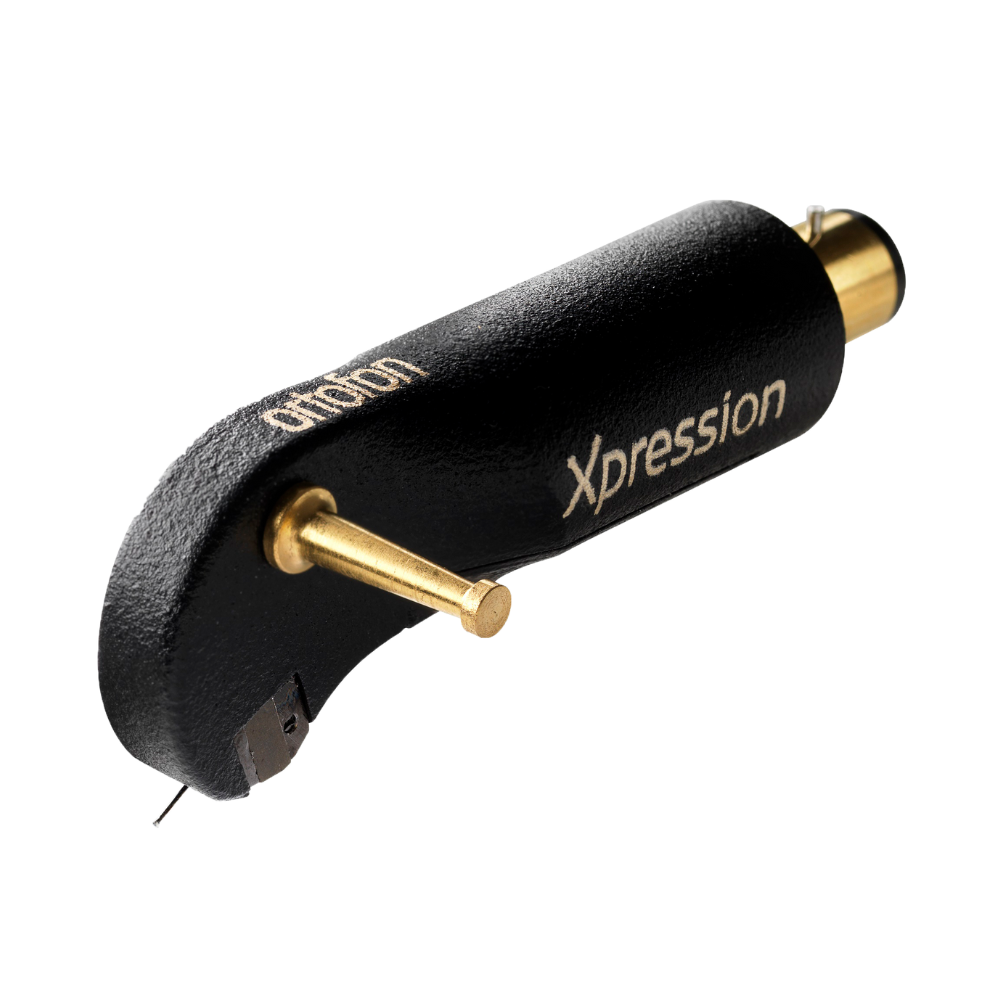

The Xpression cartridge bridges the gap between the SPU-type cartridges and High-End cartridges like the MC A90 and the MC Windfeld designed for headshell mounting.

The result is a high-performance moving coil cartridge with the convenience of a standard headshell connector, which provides a simple and elegant method of directly connecting the generator and tonearm via the Xpression’s one-piece body.

Accuracy level

The Xpression, although derived from the materials and techniques employed with the A90 cartridge, finds a superb sonic balance between the literal precision of the A90 and the powerful dynamics and fluid body of its SPU predecessors.

Because of the nature of SLM-based construction, each cartridge body is cosmetically unique and will show small dimples or lines under close examination.

Stylus

The Xpression features an ultra-fine and extra polished version of the unique Ortofon Replicant 100 stylus on Boron Cantilever. The Replicant 100 is also used in the MC A90, MC Windfeld, MC Anna, and MC Cadenza Bronze cartridges, providing more responsive and transparent sound reproduction.

One of the preconditions for linear reproduction with a wide frequency range and optimal tracking performance is a diamond - the shape of which is as close as possible to the original cutting needle.

This diamond is incredibly small and light but has an extraordinarily large vertical contact surface despite its minimal radius of rounding. Correctly fitted at a vertical angle of 23 degrees, an Ortofon Replicant Stylus 100 will read the musical information in the grooves of a record with a greater degree of accuracy than any other kind of needle.

Cartridge body

By combining the utilization of this SLM process and our WRD system, we are confident that the perfect mechanical integration of this cartridge with your tonearm will result in a significant and breathtaking increase in dynamics, staging, resolution, and richness. Ultrahigh purity silver is used for the internal wiring between generator and standard headshell connector.

Finally, the bottom cover has been constructed from a special proprietary TPE (Thermo-Plastic Elastomer) material, which provides extremely high damping. You simply experience more drama and greater breadth, height, and depth in the sound scenario.

Boron cantilever

Using Ortofon’s Aucurum coils of gold-plated, 6NX oxygen-free copper allows for zero-loss transmission of the diamond’s movements via its Boron cantilever. This combination, which has also been employed for use in the MC Windfeld, MC A90, and MC A95 cartridges, combines low moving mass with an extremely high degree of rigidity.

Magnet system

The magnet system is based on the designs used in such acclaimed cartridges as the MC Windfeld and the MC A90.The magnet system is based on an extremely strong, compact neodymium magnet, which makes the generator system both compact and lighter through its minimal dimensions.

Ortofon’s Field Stabilizing Element, a small cylinder of conductive material strategically placed inside the magnet system, guarantees that the force field remains stable regardless of the movement of the armature. FSE improves the channel separation, while at the same time minimizing dynamic distortion and intermodulation. The result is the fantastic dynamics and even more elbow room between the musicians.

Rubber suspension

Adding to the list of important components is Ortofon’s patented Wide Range Damping (WRD) system. In this system, a small, heavy platinum disc is sandwiched between two rubber absorbers, both with different properties. This ensures not only an exceptional tracking performance, but also creates a perfect damping through the entire frequency spectrum. Because of this, distortion and resonance are virtually eliminated entirely.

The Wide Range Damping system, which was originally introduced in the MC 20 Mk II in 1979 and was also used in the MC A90, the MC Windfeld and many of Ortofon’s other top-tier cartridges, is one significant reason why the Xpression, while achieving the most linear frequency response and a high upper frequency limit, at the same time tracks a fantastic 90 μm at a vertical tracking force of 2.6 grams.
