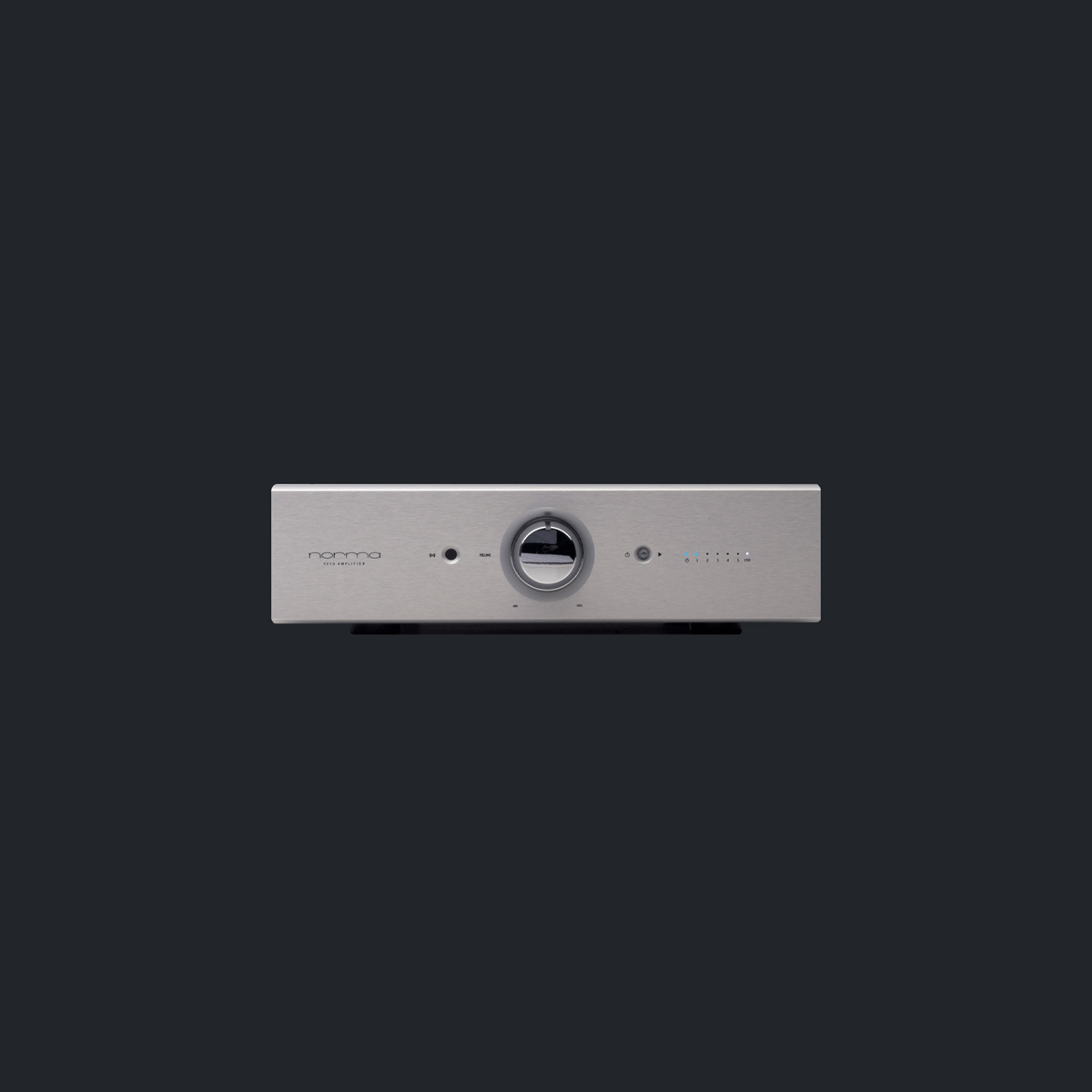

Norma Audio REVO IPA-140

– Extreme low noise, high speed schematic topology and wide band ( >2 MHz ).

– High current MOS-FET power device (150 A output peak current).

– 12 power device for a total rated 1.500 W power handling capability.

– Separate power supply for Gain, Driver and Output stage.

– High speed and low noise regulated power supply for gain and driver stage.

– High filtering capacity (70.000 uF) with numerous (24) low impedance capacitors.

– Full aluminium non-magnetic frame

– Toroidal power transformer specially designed for audio applications, low dispersion flow. low mechanical noise, high permeability magnetic core with consequent low output impedance, 2 x 400 VA.

– Input configurable as Direct Inputs, for Home Theater use.

– Outputs configurable as Pre Out, Active or Passive, for use with Power Amp and/or with Active Subwoofer.

– XLR balaced input.

– Remote control of all functions with NORMA RC-4 remote control.

– Two-speed volume control (Fine and Fast).

– Possibility oto set the PHONO board inside, with 2 mono boards for Left & Right channel.

– High quality phono stage, for MM and MC pick-up.

– Possibility to set the high quality USB-DAC board inside, 192 KHz, 24Bit.

– Protection for DC signal sensitive speakers.

– Inputs selection by relay with GOLD/PALLADIUM contacts.

– RCA solid core gold plated plug connector for any signal connections.

– Stand-by mode switches off the microprocessor one the command is executed, so as to annul any interference towards analogue signal.
