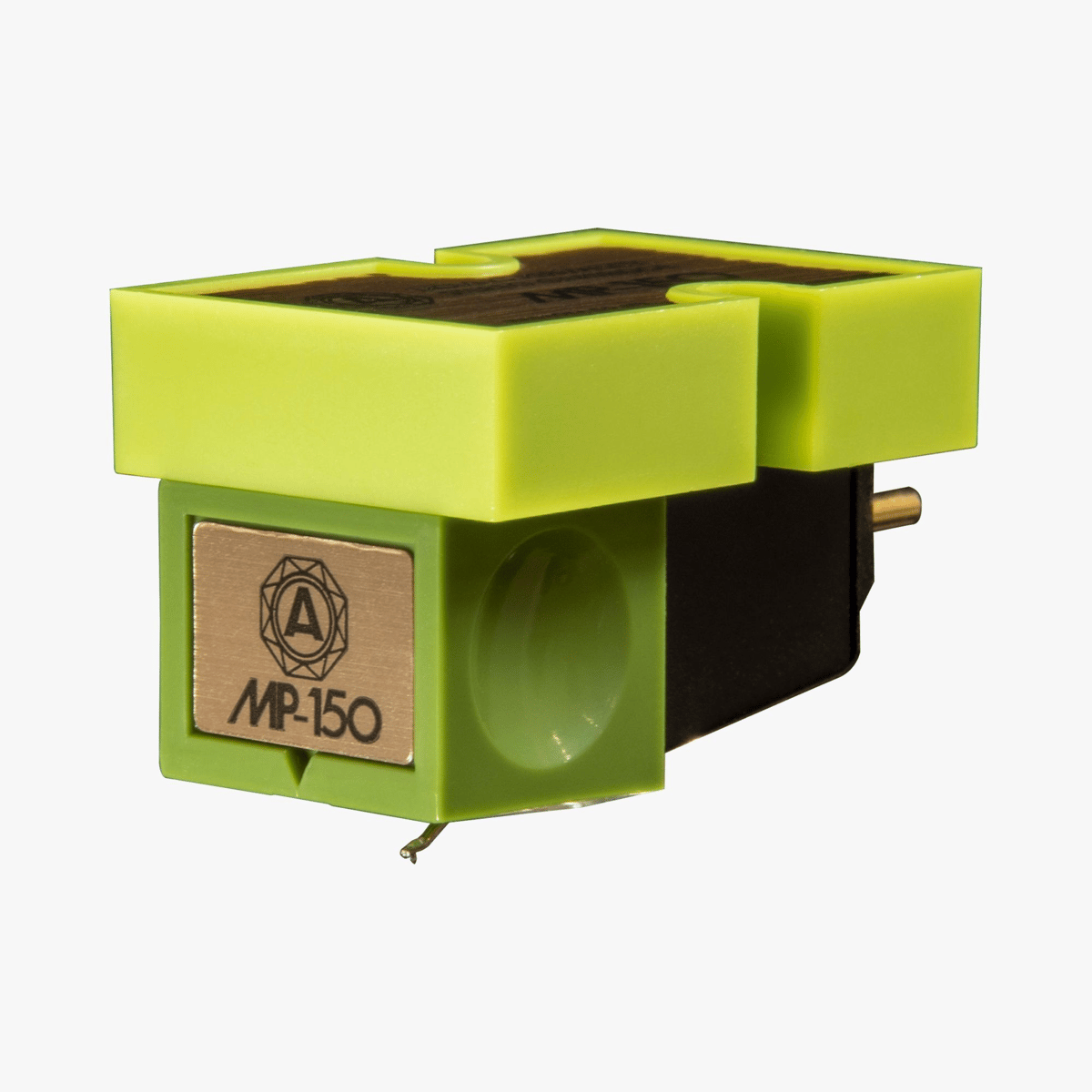

Nagaoka MP-150

A powerful wide-band sound model featuring a lively feeling of popping

An ambitious work using a cantilever made of tapered aluminum alloy and an elliptical diamond needle.
Characterized by a firm sound.

Specifications:

• Output voltage: 4.5 mV (5 cm/sec)
• Frequency response: 20Hz~20,000Hz
• Channel separation: 24 dB (1 kHz)
• Channel balance: 1.5 dB or less
• Load resistance: 47 kΩ
• Load capacitance: 100 pF
• Cantilever: Hardened tapered aluminum alloy
• Needle tip: 0.4×0.7mil ellipse/diamond
• Appropriate needle pressure: 1.5~2.0g
• Cartridge weight: 6.5g
• Weight with head shell: 16.5g
