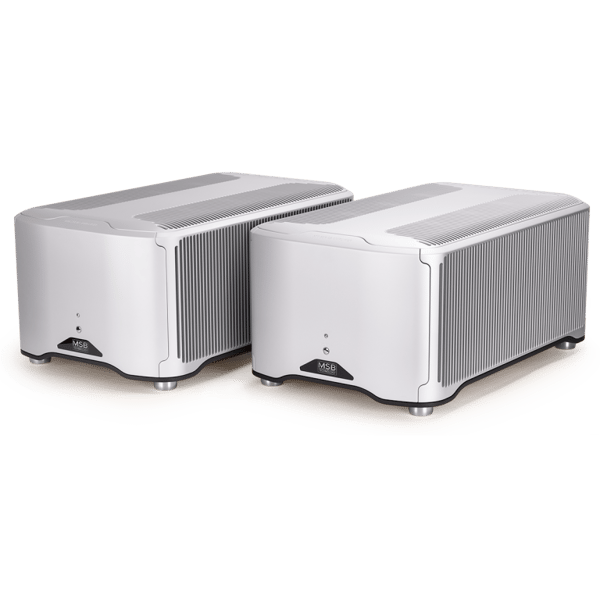

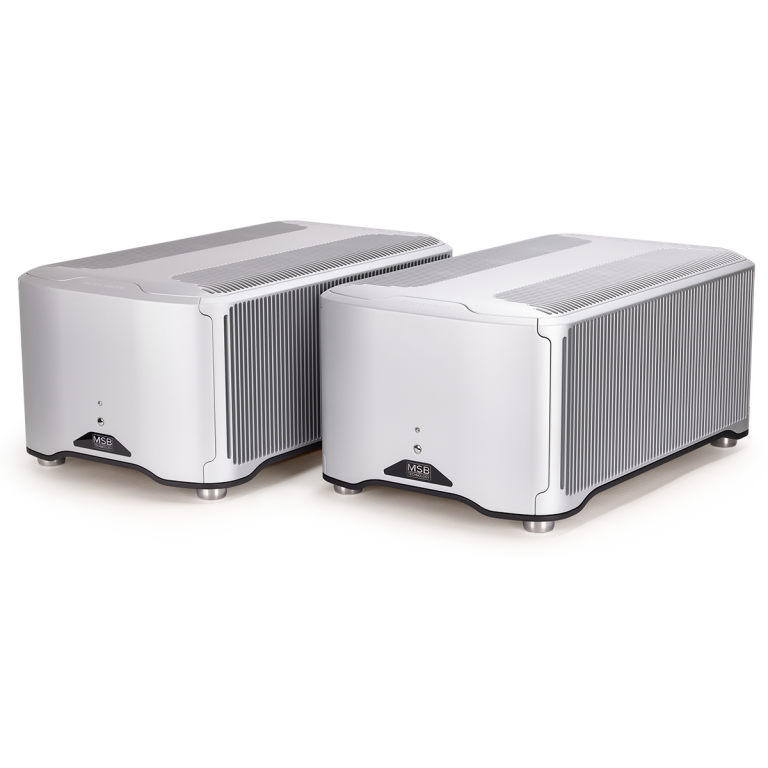

MSB Technology M500 MONO
Powered by innovation.
The world’s leading DACs needed an amplifier to match. The result was a clean slate design that could meet our DAC’s ultra high dynamic range head on. With the amplifier’s architecture optimized in critical areas, audio performance, longevity, and an ability to drive any speaker became our principal design parameters. We redefined the idea of what an amplifier can be, embedding the M500 with a fully modular design alongside a 1.0 Farad Power Core, a matched impedance input stage and an all billet CNC case. The finest amplifier we’ve ever created, the 500 series redefines excellence and sets a new bar in the industry.
Design without compromise.
The M500 features a discrete design featuring a class A matched impedance input stage. This result is a product with minimized signal reflections, input noise, and distortion while also maximizing power transfer and dynamic range in a zero negative feedback design. With custom low-noise high-current toroidal transformers and rugged high-current output buffers, the M500 provides a transparent, holographic listening experience that’s completely fatigue free. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.
Billet CNC heatsink.
The 500 series amplifier is designed and lovingly crafted in our factory based in California. Each of the heatsinks start out as a 51lb aluminum block before sixty percent is removed over eight hours of machining, resulting in 17.5 lbs of refined aluminum. This high efficiency design provides a surface area of over 10,000 in² per amplifier. What’s more–the fin thickness is slightly varied to help reduce resonances and ringing in the heatsinks, while multiple high power heat pipes distribute heat evenly for optimal thermal and electrical performance.
Core values.
Building the 500 series amplifiers with a core enclosure greatly improved their reliability and performance. Upon completion, the cores are rigorously tested and stocked for orders, ensuring the highest quality product is ready at a moment’s notice. With this segmentation, your system is optimized for performance and resilience.
Smart control features.
The M500 is equipped with a simple, user-friendly control interface. Intuitive push buttons, remote commands, and the 12V triggers guarantee control over power and standby modes. Further control of amplifier “power on” timers and soft-start circuits allow a multi-amplifier system to power up without putting strain on your listening room’s electrical system.
Powerful configurations.
Intuitively oriented speaker lugs direct your speaker cables in the right direction without strain. Multiple ground posts enable EMI reduction strategies, including shielded cables and system star grounds. A 20 amp IEC connection is provided for high current delivery, while three gain settings optimize dynamic range for any speaker.
Trade in program
While we’re committed to long lasting products that hold their value, we realize audio systems are always evolving. That’s why we’re thrilled to offer high trade-in values for existing MSB products when upgrading to a higher performing series. If you currently have an MSB DAC or amplifier that you love, but are looking to experience more from your system, please reach out to your local dealer. We’ll build a personalized offer for your existing MSB products that count towards a new DAC or amplifier. Let us do the work of refurbishing and finding your current electronics a new home–they’ll continue to be enjoyed for years to come.
Anodized Finishes
Elegant yet commanding, our finishes are available in a matte silver or matte black anodize. Our products include our in-house designed viton feet, but any audiophile M6X1 foot can be installed to personalize your system.
The 12V Trigger Adapter
The 12V trigger adapter provides a multitude of ways for connecting your MSB product with other 12V trigger systems.
Dealers selling MSB Technology near you
MSB Technology M500 MONO
MSB Technology's M500 MONO is a purpose-built, trophy-class monoblock that combines enormous headroom with ultra-low noise and surgical transparency. Boasting 500 W continuous into 8 Ω (1,000 W into 4 Ω), a quad-balanced Class-A input stage feeding high-bias Class-AB outputs, and SNR >136 dB, it promises authoritative dynamics and an almost inaudible noise floor. The press documentation on Audiophil-Online highlights its transparent, holographic presentation and meticulous engineering — massive machined heatsinks, billet CNC chassis, a 1.0 Farad Power Core and independent transformers — which underpin long-term reliability and thermal control. Suited to flagship DACs and hard-to-drive speakers in high-end systems, the M500 is aimed at listeners seeking reference dynamics, imaging, and build quality. For buyers prioritizing uncompromising power and neutrality, the M500 stands as a statement monoblock.
Pros
- Enormous continuous power and headroom (500 W into 8 Ω / 1,000 W into 4 Ω) for driving demanding, low-sensitivity speakers.
- Very low noise and high transparency (SNR >136 dB, EIN 0.5 µV, zero negative-feedback matched input stage) that support a near‑silent background and detailed resolution.
- Premium engineering and thermal design — massive machined heatsinks, billet CNC case, 1.0 Farad Power Core and independent transformers — aimed at longevity and stable performance.
Sound Quality
91/100
Dynamics
92/100
Manufacturer specifications and engineering details point to very strong dynamic capability: 500 W continuous into 8 Ω (1,000 W into 4 Ω), very low output impedance (0.07 Ω), quad-balanced Class-A input driving a high-bias Class-AB output, and custom high-current toroidal transformers. The mono-block topology and large heatsinks/heat-pipe thermal design imply robust headroom and sustained current delivery. NOTE: assessment is cautious because the only provided review is manufacturer/press material; independent listening or measurement corroboration was not available.
Soundstage Imaging
90/100
Manufacturer claims (low-noise, high-current transformers and rugged output buffers) imply stable, holographic imaging and good channel separation — helped by mono configuration. The score recognizes likely excellent spatial presentation but is conservative because claims come from MSB press material rather than independent critical reviews or measurements.
Show Less
Build Quality
93/100
Physical and engineering details are high-end: 135 lb mono chassis, massive machined heatsinks (starting 51 lb blocks), varied fin thickness to reduce resonance, multiple heat pipes, and independent power/transformer per channel. The product design and material choices (heavy transformers, discrete topology) indicate premium construction and thermal/long-term reliability. As above, this draws from manufacturer technical claims; a teardown or third-party build inspection would be needed to fully corroborate all premium claims.
Value for Money
86/100
No independent reviewers commented on price; default neutral baseline applied. The stated price (~$145,000 per mono) places the M500 in the trophy/reference mono-block tier where many competitors offer different design trade-offs; at that level buyers expect exceptional performance and boutique construction. Given the high price and lack of third-party value commentary or direct peer comparisons in the supplied material, a conservative/neutral value score is appropriate.
