SAT MK3.3 | OUR CHEF D’ŒUVRE

Tentative specifications

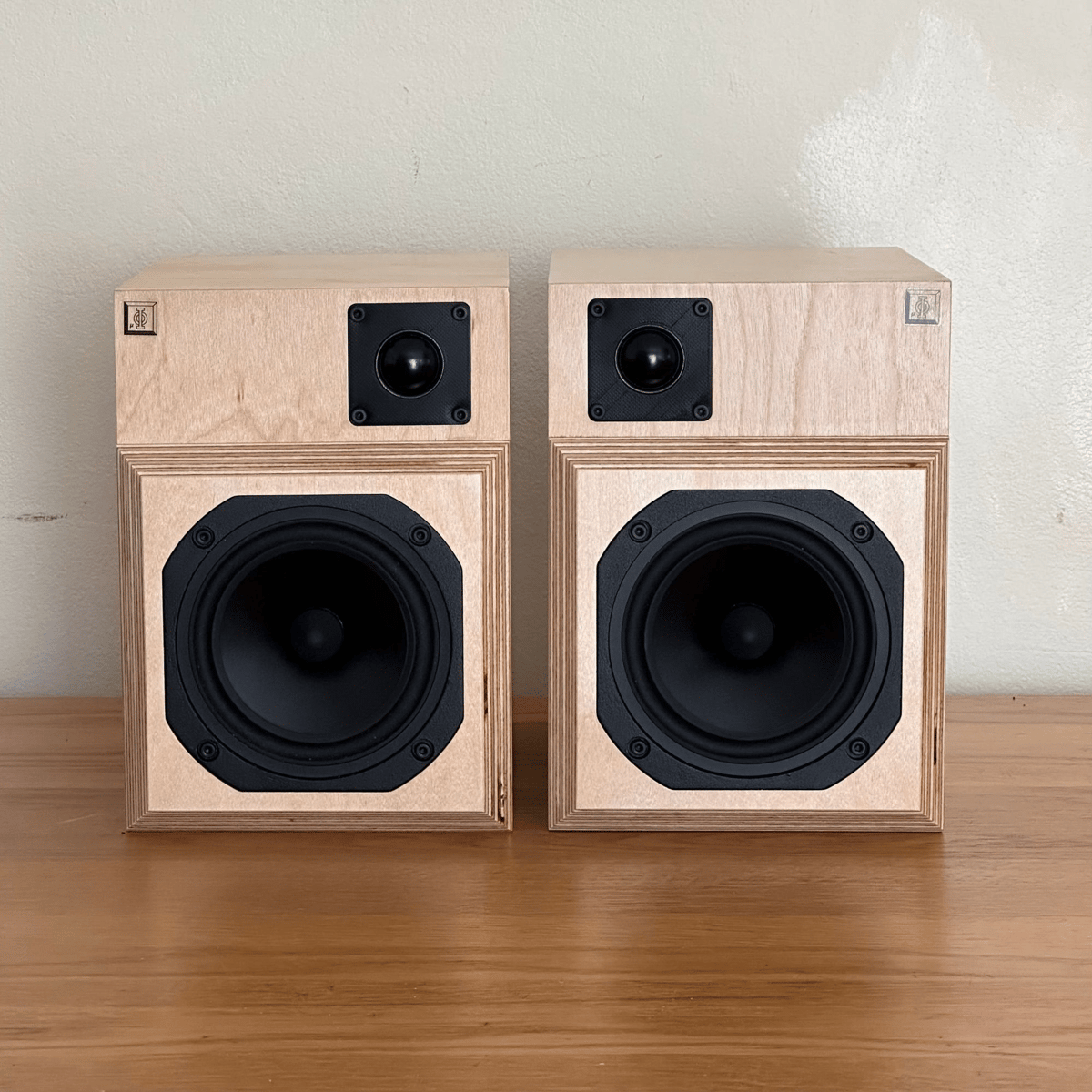

3-way miniature monitor, with bi-wiring and time aligned tweeter in a marine grade birch plywood cabinet with a clear polyurethane finish

The main full range driver - 13cm - has a paper membrane and phase plug specially designed for us by AUDAX in France.

The back driver is a 17cm also from Audax with a paper cone specially assembled for MAD.

The tweeter is also from AUDAX, as in our SAT MK1

Dimensions : 180x250x250mm

Frequency response: 70Hz - 20KHz +/- 6 dB

Efficiency: 90dB/1W/1m

Phase: +/- 18 degrees from 20Hz to 40KHz

Impedance: Nominal 4 ohms

Crossover frequencies: 400Hz/12dB/oct, 4KHz/ 12dB/oct, Linkwitz-Riley phase alignment,

Power handling: 100W

• 3200 Euros/pair + freight and duties/taxes in Europe/🇬🇧
• 6270AUD - the 🇦🇺🇳🇿 price includes delivery and GST anywhere in Australia or New Zealand.

Estimated delivery: Four weeks at reception of deposit
