Specifications
- Audio Inputs
- Meridian SpeakerLink (RJ45) & RCA phono digital inputs accepting 32kHz to 96kHz sampling rates at up to 24-bit
- Audio Outputs
- Meridian SpeakerLink (RJ45) & RCA phono digital outputs delivering 32kHz to 96kHz sampling rates at up to 24-bit
- Performance
- Peak SPL: 118dB at 1m (music material) Noise less than 15dB SPL Frequency response in-room within 3dB: 30Hz to over 32kHz
- Amplifiers
- 4 x 150W (600W) Overall distortion typically <0.02% at any frequency or level
- Bass Drivers
- 2 x 200mm long-throw
- Mid Driver
- 160mm polypropylene
- Beryllium Dome Tweeter
- 25mm (1”) Meridian piston in short-horn, beryllium dome with silver voice-coil.
- Display
- Eight-character display with additional status indicators; can be blanked in use
- Dimensions / Weight
- HEIGHT; 1072mm [42.2in] (Without feet/spikes) WIDTH: 178mm [7in] tapering to 350mm [13.8in] DEPTH: 220mm [8.7in] tapering to 422mm [16.6in] FOOTPRINT (W x D): 350mm [13.8in] x 422mm [16.6in] WEIGHT: 55kg [121lbs]
- Power
- 20VA standby; 600VA max
Manufacturer's Description — Meridian
The Special Edition DSP7200 offers reference-level performance from its classic design format of four forward-firing drive-units.
Loudspeakers

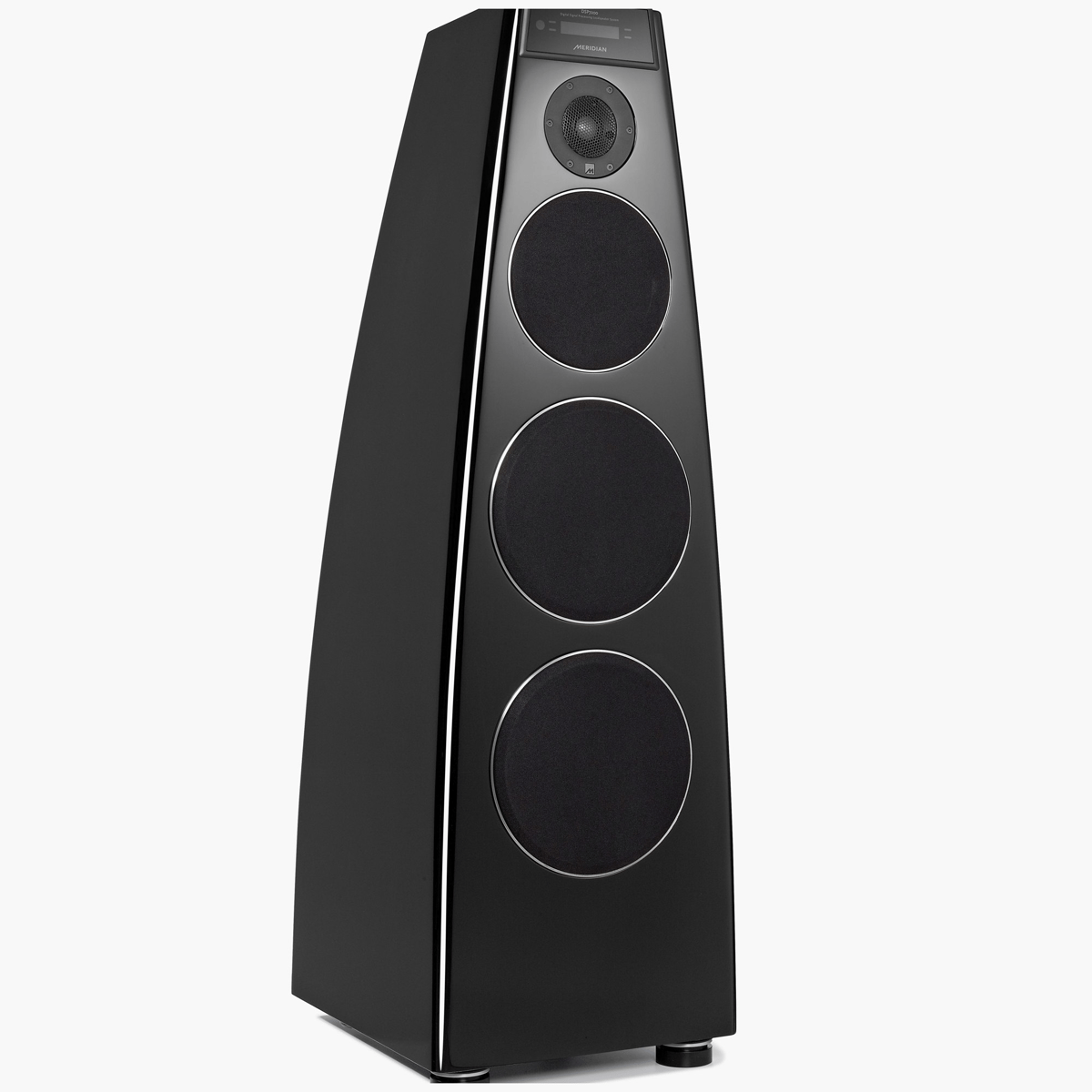

Special Edition DSP7200
The DSP7200SE contains a complete matched audio system, giving the highest overall quality, lower power consumption and the performance of a traditional passive loudspeaker several times the physical volume. Finished as standard in piano lacquer black, our Select finishing option means Special Edition loudspeakers can also be supplied in the colour of your choice. Full-range floorstanding and horizontal centre-channel options are offered, for audio or home cinema solutions.
Bespoke Signal Mapping
Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.
E3 Bass
Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
FFA
FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.
Q-Sync
Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.
Pro-Active Bass
Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units
Pro-Active Thermal
Meridian Pro-Active Thermal monitors the audio being sent to the mid-range drivers and tweeters and limits the overall volume of the loudspeaker if there is a risk of the drive units getting too hot.
True Time
True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
True Link
Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.
Free-Q
Meridian Free-Q is used to compensate for acoustic problems associated with specific loudspeaker placement conditions.
The Reference Series
With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.
