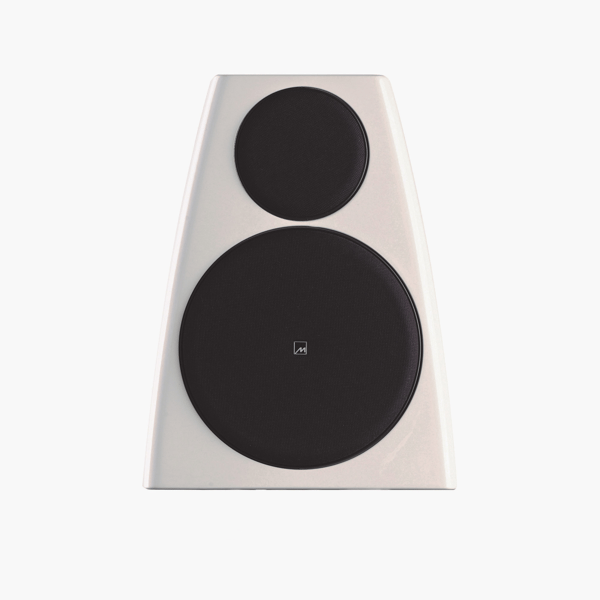

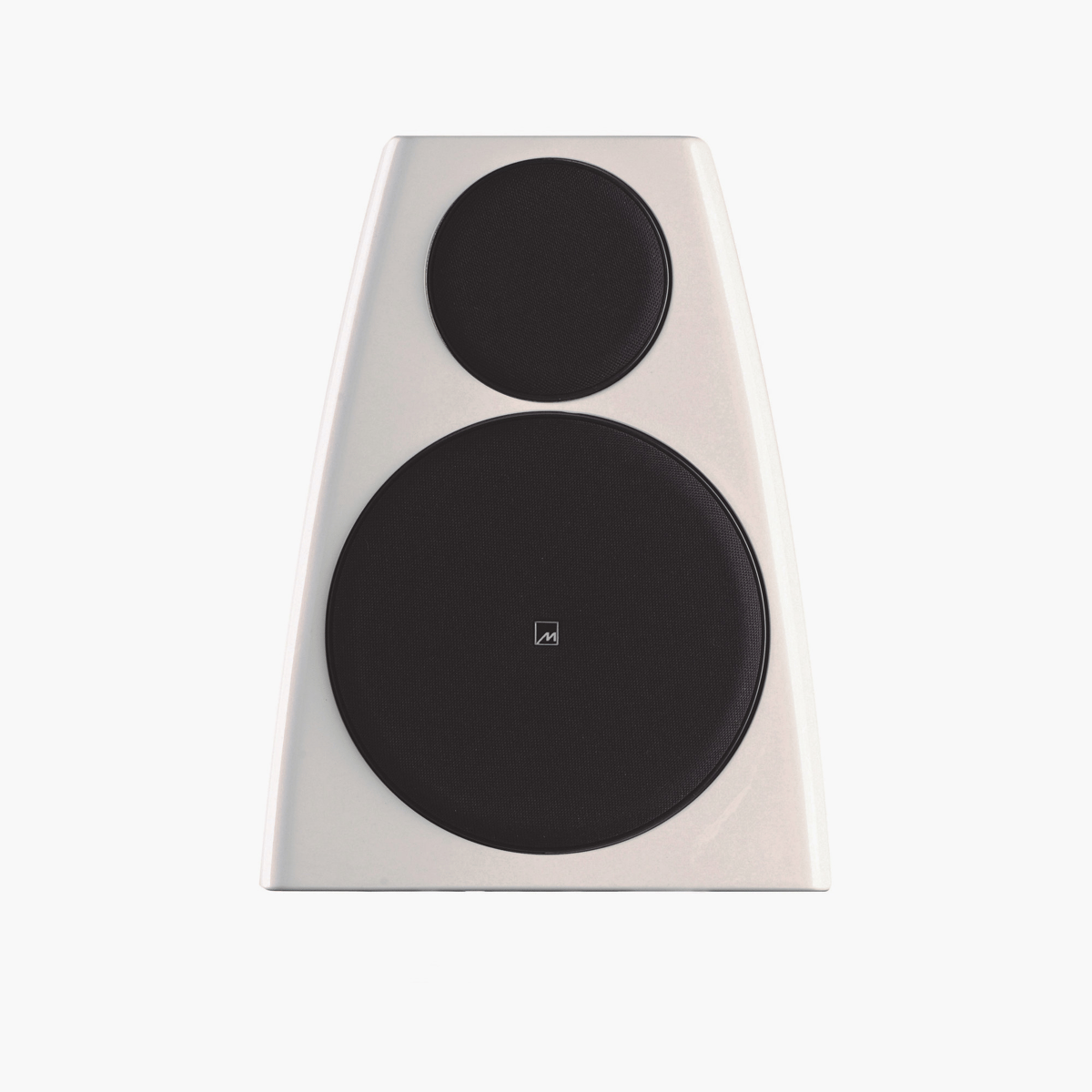

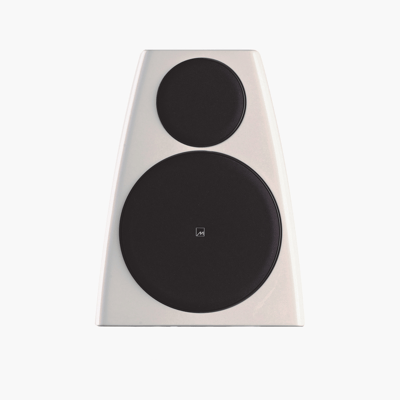

Meridian DSP3200
Meridian’s DSP3200 pairs active DSP control with a compact cabinet to deliver deep, controlled bass, articulate midrange detail and confidently focused imaging. Twin 75W amplifiers, 24-bit/96kHz SpeakerLink connectivity and a 114dB peak output give this digital-first design serious scale, making it a refined solution for listeners who value precision, punch and streamlined high-resolution system integration.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Nicely Roasted
Sound Quality
90/100
Build Quality
91/100
Features Connectivity
90/100
Value for Money
80/100
Pros
Digital active bookshelf configuration with integrated amplification and DSP-based operation.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
SOUND QUALITY PERFORMANCE 90/100
Bass
90/100
6.5" (165mm) long-throw polypropylene bass driver with in-room response to ~45Hz and matched amplification/DSP. For its size the DSP3200 delivers notably deep, controlled low end (claims 45Hz in-room, 114dB SPL) and benefits from active amplification and DSP tuning; expect strong extension and punch for a bookshelf of this driver size.
Mid
90/100
85mm aluminium wide-range driver and very low distortion spec (<0.02%) with dedicated amplification/DSP. Specs indicate clear, articulate midrange with good weight and timbral fidelity; DSP and active amps should preserve vocal clarity and body without obvious shading.
Treble
88/100
Wide-range aluminium cone and Meridian DSP control give extended, detailed treble with low distortion. Expect refined top-end extension and air, with DSP smoothing preventing harshness; not hyper-bright but highly resolving.
Soundstage Imaging
90/100
Active DSP, precise driver alignment and low distortion support wide, well-focused imaging. The design and Meridian tuning imply strong depth and stable imaging for bookshelf positioning, with good coherence between drivers.
Dynamics
90/100
Two 75W amplifiers (150W total) and quoted 114dB peak SPL indicate healthy macro- and micro-dynamics for the form factor. Active amplification and DSP headroom produce punchy transients and controlled output without obvious compression at listening levels.
Assessments of Build Quality, Usability, and Overall Propositions.
Build Quality
91/100
Heavy (~8.5kg) for a bookshelf and Meridian engineering suggest solid cabinetry, quality drivers and crossover/DSP implementation. Physical specs and brand positioning point to high-level fit-and-finish and internal parts quality.
Features Connectivity
90/100
Proprietary Meridian SpeakerLink (RJ45) I/O handling up to 96kHz/24-bit, with digital in/out and internal DSP routing. Excellent high-resolution digital integration and daisy-chain capability for system use; lacks analog/Bluetooth on spec sheet, which is typical for Meridian's digital-first approach.
Value for Money
80/100
Performance and features point to premium positioning, but price was not provided (N/A). Relative value is good if priced near other high-end active DSP bookshelves; without a concrete price or reviewer price comparisons, a conservative mid-high value score is used.
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Audio Input
- 1 x Meridian SpeakerLink (RJ45) accepting 32kHz to 96kHz sampling rates at up to 24-bit
- Audio Output
- 1 x Meridian SpeakerLink (RJ45) delivering 32kHz to 96kHz sampling rates at up to 24-bit
- Performance
- Peak SPL: 114dB at 1m Noise less than 15dB SPL Frequency response in-room within 3dB: 45Hz to over 20Hz
- Amplifiers
- 2 x 75w (150w) Overall distortion typically <0.02% at any frequency or level
- Bass Driver
- 1 x 165mm polypropylene long-throw bass driver
- Wide-range Driver
- 1 x 85mm aluminium cone wide-range driver
- Dimensions / Weight
- HEIGHT: 320mm [12.6in] (without feet) WIDTH: 244mm [9.6in] (Max at base) DEPTH : 246mm [9.7in] (Max at base) WEIGHT: 8.5kg [20lbs]
- Power
- 550W (maximum)
Manufacturer's Description — Meridian
The DSP3200 is a compact loudspeaker that provides a powerful performance well beyond what is expected for its size. It is suitable for intimate listening spaces or as part of a larger installation.
Loudspeakers
DSP3200
Beautifully mirroring the curves of our larger loudspeakers, this compact loudspeaker delivers as much quality sound as a conventional loudspeaker of eight times the physical volume - delivering the atmosphere and emotion of a live performance straight into the home. The precision-manufactured cabinet is finished in high-gloss black and is perfectly suited to an extensive variety of room locations including bookshelf, on wall, as well as on floor stands. Its size makes it the perfect partner to other Meridian DSP loudspeakers in a variety of installations.
Bespoke Signal Mapping
Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.
E3 Bass
Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
FFA
FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.
Q-Sync
Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.
Pro-Active Bass
Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.
Pro-Active Thermal
Meridian Pro-Active Thermal monitors the audio being sent to the wide-range driver and limits the overall volume of the loudspeaker if there is a risk of the drive unit getting too hot.
True Time
True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
True Link
Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.
Free-Q
Meridian Free-Q is used to compensate for acoustic problems associated with specific loudspeaker placement conditions.
With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.
