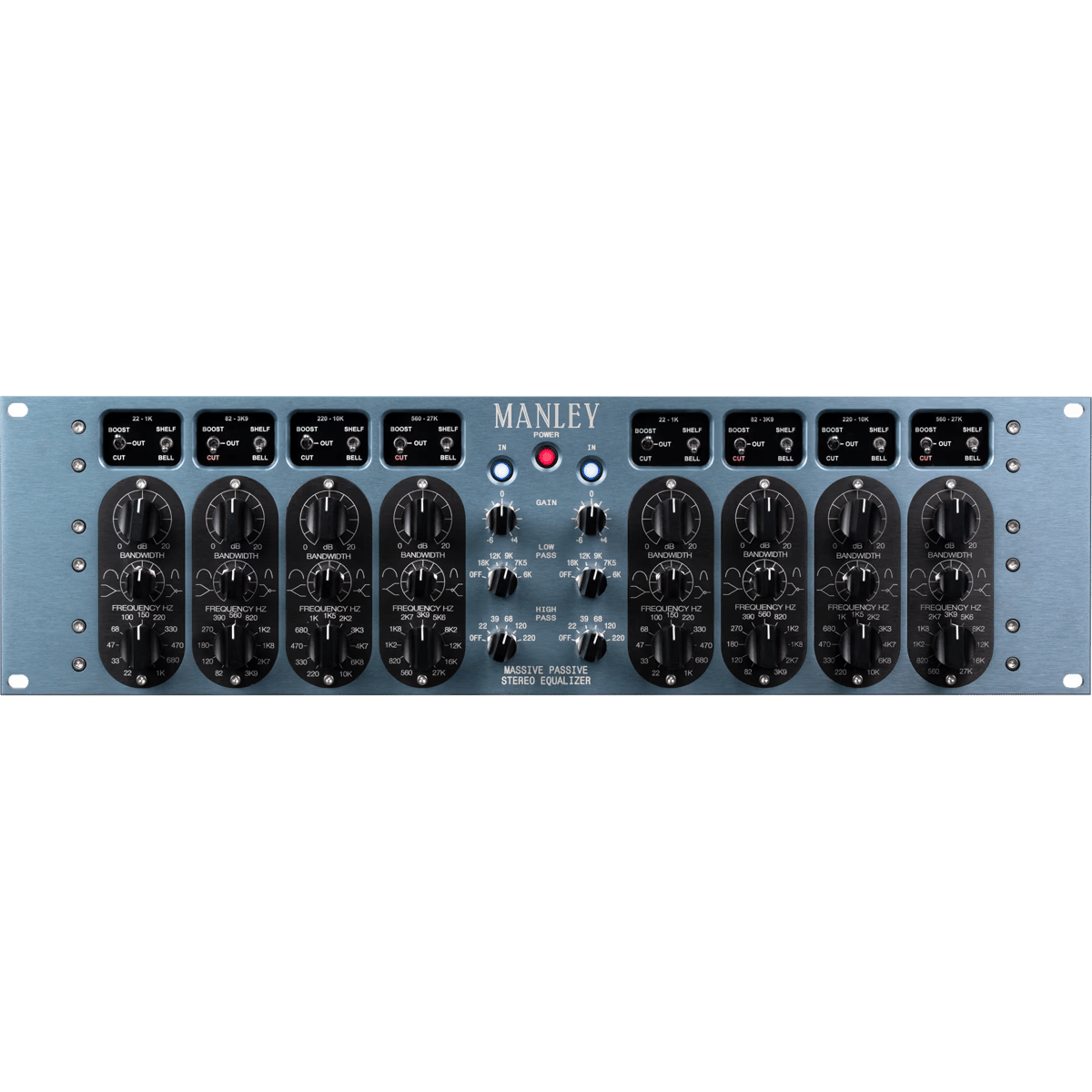

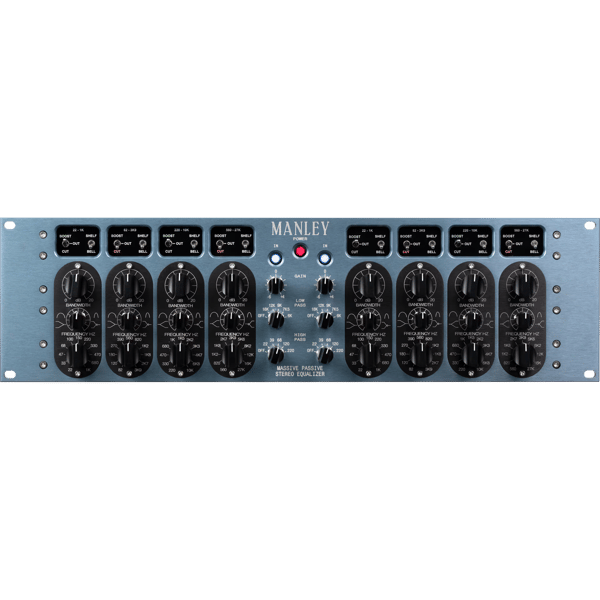

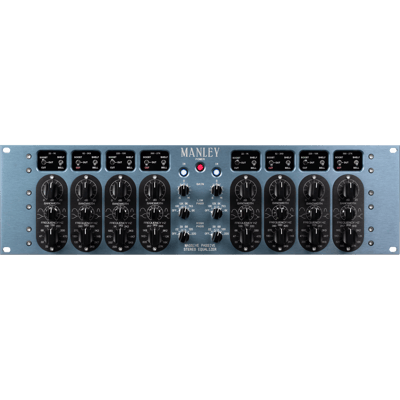

Manley Laboratories Massive Passive EQ

Since its introduction, the Manley Massive Passive has redefined passive tube equalization: organic, musical, and unmistakably powerful. Hand-built in California, it combines metal-film resistors, film capacitors, and hand-wound inductors with all-tube makeup gain stages, to deliver unparalleled tonal sculpting for tracking and mastering. In combination with a Manley Backbone Mastering Matrix this EQ becomes an audio engineer's dream in M/S mode!

The Massive Passive is a truly unique equalizer — it’s passive, parallel, and built with Manley’s signature musicality.Its filter network is entirely passive, using only resistors, capacitors, and hand-wound inductors — no op-amps or active circuitry in the EQ path. A clean tube amplifier stage restores the signal level afterward, giving you the open, effortless tone that’s become a Massive Passive hallmark.

Unlike most EQs with series filter topology, the Massive Passive runs its four bands in parallel. This means you can apply broad or extreme boosts without internal overload — even with multiple bands overlapping.

Every band can operate as a bell or shelf, and the curves interact organically rather than clinically. The result is a rich, musical sound that enhances tone instead of dissecting it — often described as “Pultec on steroids.”

The Massive Passive has the smoothest yet punchiest mid bands in the industry, and don't take our word for it. The lack of phasy midrange, even when pushed a bit, makes it an ideal EQ to use in M/S mode. While it works great with any M/S matrix out there, the combination of the Massive Passive and our Backbone Insert Matrix is a team that needs to be heard and experienced!

The Massive Passive is designed to serve across the entire production chain:

Tracking: Add tone shaping and musical enhancement while recording, with natural warmth and depth from the tubes and passive network.

Mixing: Sculpt instruments or entire buses with broad, organic curves that add space and cohesion without harshness.

Mastering: The Massive Passive Mastering version offers stepped controls for precise recall. It’s ideal for subtle tonal balancing, gentle enhancement, and removing unwanted buildup — all with immense headroom and minimal phase distortion.

In short, the Massive Passive is equally at home on vocals, acoustic instruments, mix buses, or entire masters.

In the Massive Passive, Bandwidth replaces the conventional Q control.It defines how wide or narrow the EQ curve is, but with a twist: the filters are interactive.

Turning Bandwidth counterclockwise creates broader, smoother curves.

Turning it clockwise tightens the curve for more focused adjustments.

In shelf mode, the Bandwidth control also changes the shelf shape — introducing a gentle dip or bump near the corner frequency for more musical contouring.

Unlike a fixed, clinical Q, the Massive Passive’s Bandwidth works dynamically, influencing the tone and interaction of neighboring bands. This makes it more musical than mathematical — you’ll hear results that feel natural, not surgical.

If your Massive Passive is a newer production unit, it likely includes our modern MANLEY POWER® switch-mode power supply (SMPS). You can identify it easily:

A red illuminated push-button replaces the older black rotary power switch.

Universal power input: no voltage selector needed (automatically handles 90–254 VAC, 50/60 Hz).

Updated internal design: revised tube complement, PCB layout, and power section.

If your unit has these features, it’s equipped with MANLEY POWER®. Earlier models used a traditional linear supply.

No.Due to major changes in the power, audio, and mechanical design, it’s not possible to retrofit older units with the MANLEY POWER® SMPS system. The newer chassis, wiring, and PCBs were re-engineered from the ground up.Manley therefore does not offer a conversion service — we recommend continuing to enjoy your classic version or upgrading to a current production unit.

Tube complements vary slightly depending on the production era.

Current MANLEY POWER® version:2 × 5751 tubes (gain stages)4 × 6922 / ECC88 tubes (output and driver stages)

Earlier linear versions:2 × 5751 or 12AX7 tubes4 × 6414, 12BH7, or 12AT7 tubes depending on revision

Always use the correct retube kit for your serial number — older and newer versions are not interchangeable.For replacements, Manley offers matched and tested tube kits via our official service partners.

Radical boosts without artifacts, natural cuts without phase smear

From vocals and instruments to full stereo mixes, the Massive Passive delivers huge high-frequency boosts without sibilance and unbelievable low-end fatness without mud. Its passive topology and vacuum tube amplification ensure every adjustment feels intuitive and sounds transparent

Surgical precision meets vintage warmth

Every band on the Massive Passive offers switchable shelf or bell curves with overlapping, interleaved frequencies across a 22 Hz to 27 kHz range. Balanced XLR I/O, passive high-pass and low-pass filters, and meticulous hand assembly make it essential for any world-class studio
