Small package, big sound

Dual ES9219C DAC chips, with 3.5 + 4.4 dual output interfaces.

• Dual ESS SABRE ES9219C DAC chips and a dedicated high-precision clock crystal oscillator module, which lowers jitter significantly.
• Mode switch between low and high gain, dedicated volume controls on the unit.
• DT03 supports PCM up to 32bit/384Khz and DSD up to 256.
• 3.5 and 4.4 Dual Output Interfaces: High Power Driving Output, Remarkable Sound
• Type-C Interface with Interchangeable Cable Design, Plug-and-Play and no need for special drivers
• CNC milled aluminum shell
• RGB LED sampling rate indicator
• A 12.5cm and an 80cm Type-C to Type-C signal transmission cable and a Type-C to standard USB adapter is included.
• A black faux leather case comes standard as well to protect the surface from scratches.

Dual ESS SABRE ES9219C DAC chips

DT03 is equipped with dual ES9219C chips with amazing performance.

Built-in dedicated high-precision clock crystal module, which can bypass the internal clock of USB the USB interface which significantly lowers jitter.

Combined with the dual DAC chips, it output high-quality digital audio and a clean output.

SNR signal-to-noise ratio: 119 dB.Distortion: 0.0006% (4.4mm).

HD DAC with all the details

High resolution specification gives DT03 the ability to reproduce music as close to the original sound as possible.

Strong resolution that expresses all the details of the sound.

DT03 Headphone Amp supports PCM up to 32bit/384Khz and DSD up to 256.

3.5mm + 4.4mm Dual-output

The Portable Hi-Fi Audio DAC offers 3.5mm single-ended and 4.4mm balanced dual outputs.

Single-ended output power of 78mW (32Ω load)

Balanced output power of 195mW (32Ω load)

High-power drive output for better transient response and accuracy.

High and Low Gain Switch

DT03 Portable DAC is designed to meet the everyday usage scenarios.

A low and high gain switch is available to adapt with different impedance and sensitivity of the listening device.

A dedicated volume adjustment button is set on the body to easily control the volume, which is great for everyday use.

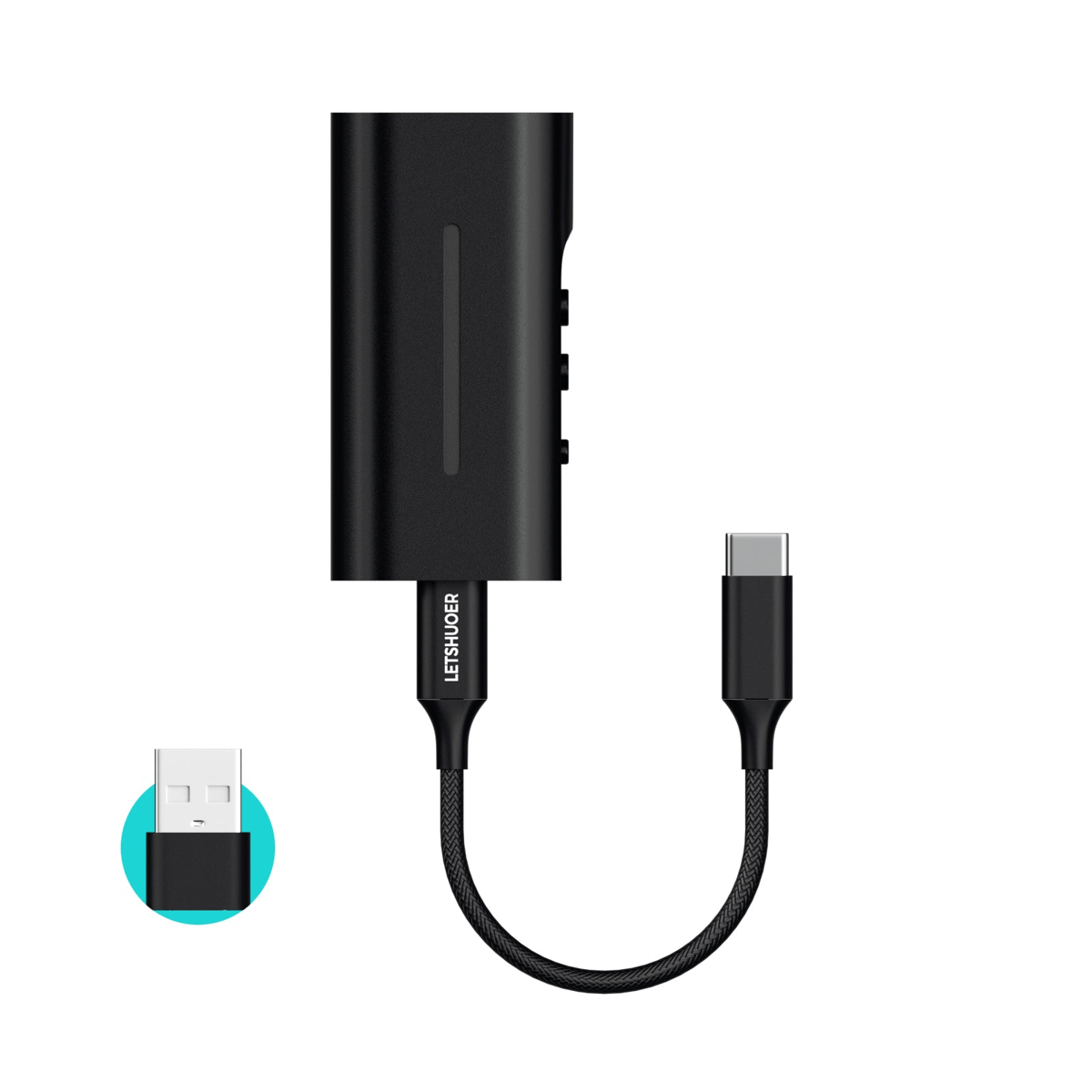

Type-C interface with interchangeable cable

The body adopts Type-C USB female connector and supports USB DAC, which can be widely adapted to more devices.

Compatible with any USB-C cable on the market, which greatly enhances the compatibility with source gears.

 A high-quality stock cable is included, which delivers clean signal transmission.

DT03 Headphone Tiny Amps is compatible with most Android / iOS / Windows / MacOS devices without the need of dedicated drivers.

CNC-milled aluminum alloy shell

DT03 adopts a high-precision CNC-milled aluminum alloy shell.

The headphone Amp adapter an injection molded plastic bracket that stabilizes the internal structure and reduces the risk of damage during daily use.

The face of the unit features an RGB LED sampling rate indicator.

PCM ≤ 96 kHz: green; PCM = 176.4 kHz or 192 kHz: blue;

PCM ≥ 352.8 kHz: red; DSD decoding: yellow.
