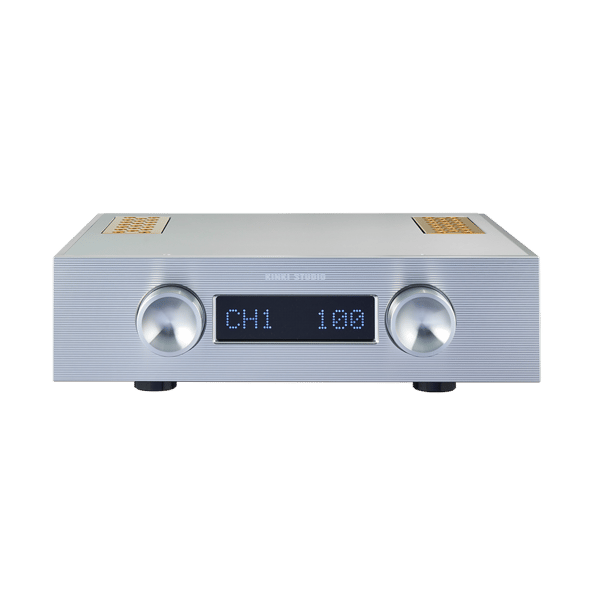

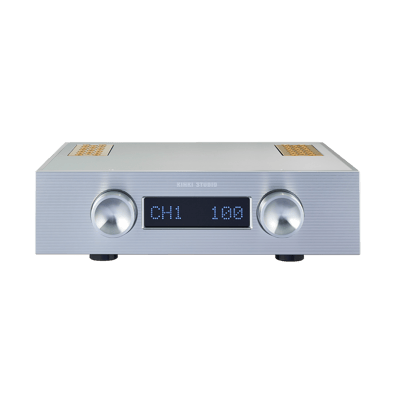

Kinki Studio EX-M1
The Kinki Studio EX-M1 pairs deep, holographic imaging with a silent, transparent backdrop, nimble transients and tightly controlled bass. Enjoy The Music admired its layered resolution, while Audiophile Style found exceptional speed and image specificity. Its powerful dual-mono platform, pre-outs and HT bypass make this a serious, elegantly built analogue integrated for spacious, composed listening.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Deliciously Crispy
Sound Quality
92/100
Build Quality
94/100
Features Connectivity
86/100
Value for Money
95/100
Pros
Exceptionally deep, stable and precisely layered soundstage with strong image specificity.
Clean, low-noise presentation with fast transients, transparent treble and controlled, articulate bass.
Substantial dual-mono construction and flexible pre-out, preamp-only and home-theater-bypass operation.
Cons
Bass can sound lean or reserved, with less ultimate impact and authority than some rivals.
The neutral, laid-back balance may not suit listeners seeking warmer mids, richer tone or maximum excitement at high levels.
Purposefully analogue-only design omits a DAC, streamer, phono stage and headphone output.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
What Reviewers Are Saying
SOUND QUALITY PERFORMANCE 92/100
Reviewers consistently describe a clean, composed and highly controlled presentation, with particularly exceptional spatial definition. Its balance leans neutral-to-slightly-cool and refined rather than overtly weighty, and several listeners wanted more bass authority or ultimate high-level impact.
Transparency Resolution
93/100
The amplifier is repeatedly described as exceptionally clean, quiet and open. Audiophile Style heard no audible hum or hiss and called the treble incredibly transparent, while Pursuit Perfect System praised its see-through quality, transient clarity and dark background.
Tonal Balance Musicality
89/100
The EX-M1 is widely heard as neutral, smooth and refined, with natural vocals, clear highs and an accomplished harmonic presentation. Its character is not especially warm or forceful: reviewers variously found the midrange slightly cool, the overall presentation somewhat laid-back, and the bass a touch lean compared with some alternatives.
Dynamics
88/100
Fast transients, excellent timing and strong composure with dense music are recurring strengths, and the amplifier has ample power for a wide range of loudspeakers. However, both Pursuit Perfect System and Enjoy The Music noted a limit to ultimate authority at louder levels, with slightly compressed microdynamics or reduced bass impact when pushed hard.
Soundstage Imaging
96/100
Spatial performance is a standout. Multiple reviewers report deep, wide and carefully layered staging, stable image placement and a notably dark, spacious backdrop; Audiophile Style found the image specificity and front-to-back perspective exceptional, while Enjoy The Music preferred its detailed layered image to an ARC separates combination.
Assessments of Build Quality, Usability, and Overall Propositions.
Build Quality
94/100
Reviewers find the 25kg chassis exceptionally solid and carefully finished, inside and out. They specifically praise the thick aluminum casework, clean internal layout, substantial dual-mono construction, quality terminals, clear display and well-made metal remote; Dagogo also reported fault-free operation throughout its review.
Features Connectivity
86/100
This is intentionally a line-level integrated rather than a digital hub: it offers three RCA inputs, one XLR input, remote control and precise relay-ladder volume adjustment, but no DAC, streamer, phono stage or headphone socket. Useful flexibility includes selectable preamp-only or integrated/preamp operation, pre-outs for a subwoofer or external amplifier, HT bypass, gain selection, display dimming and DC-filtering options.
Value for Money
95/100
At approximately US$2,800-$2,900, reviewers repeatedly call the EX-M1/EX-M1+ a bargain or exceptional value. Audiophile Style considered it highly recommendable even at twice the price, while other reviewers highlight sound, power and construction that compete favorably with considerably more expensive amplification.
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Frequency Response
- 10-150kHz (±3dB)
- THDN
- 0.0232%; 0.006% (A-Weighted)
- S/N Ratio
- >103dB
- Output Power
- 215W RMS (8Ω) , 290W RMS (4Ω)
- Damping Factor
- 2000
- Gain
- Normal Gain 26 dB
- Max Output Voltage
- 55VAC
- AC Power
- 110/240VAC, 50/60Hz (Factory configure)
- Input Sensitivity
- 2.25Vrms - 3.6Vrms
- Input Impedance
- 50kΩ
- Input Connector
- RCA x 3, XLR x 1
- Output
- Speaker Binding Post 4mm L/R Channel
- Dimension
- 430W x 125H x 370D
- Weight
- 25KG
Manufacturer's Description — Kinki Studio
Part of the EX Series — balanced midrange, smooth extension at both ends. A fully-modular dual-mono design in a single chassis, rich in tonal quality and resolution, with a silky MUSES volume control.
JRC MUSES 72320 volume control
Instead of a potentiometer, the EX-M1 uses an advanced microprocessor-controlled JRC MUSES72320 electronic volume control, built around a precision resistance-ladder circuit renowned for low noise, low distortion and exact channel matching.
Quality and performance over cost
A cost-no-object design — including an extremely high-cost 0.2µm gold-plated PCB with increased solder area and extensive shielding.
Two 400VA encapsulated transformers, one per channel, give dual-mono rails that avoid inter-channel interference for superb separation.
High-damping modular power stage
Power circuitry on a custom gold-anodised heat sink, two pairs of Exicon MOSFETs per channel in Class A/B, delivering 215 watts into 4–8Ω.
High damping factor, ultra-high slew rate and a DC-coupled path produce neutral, transparent sound with exceptional detail.
