The EVO3 Genesis One is a state of the art single cell sine wave generation system with extremely low THD. Think of the Genesis One as a dedicated mini power regeneration station for the connected electronics.

Features

• Suitable for audio or AV source components (NOT for any kind of amplifiers)
• Full mains sine wave generation system
• Regenerates a new low 0.03% total harmonic distortion sine wave
• Stabilizes voltage to 230V or 115V +/- 1%
• Dedicated single outlet delivers clean power (100W) for source components
• Solid core Ohno Continuous Cast copper silver-plated internal output wiring with FEP virtual air dielectric
• Combine EVO3 Genesis One and EVO3 Titan One for a Full system upgrade
• System Link outlet for extending the outlet and maintaining a stared earth reference
• Supplied with IsoTek’s award winning EVO3 Premier power cable
• UK, EU, US, AU & CH outlets available

Power Re-Generation

Unlike existing mains regenerators, IsoTek’s sine wave generation technology builds a completely new sine wave with extremely low distortion. A synchronous sine wave generator creates a fully optimized signal which is amplified by a generation engine running in either Class A/B or D (Genesis One), which is then fed to a high-quality output transformer with copper foil between the primary and secondary outputs, thus preventing distortion and noise passing through the unit. The result is up to 600W of continuous, newly generated power.

A critical part of the process is IsoTek’s unique synchronous sine wave system which replicates the frequency with zero variation so as not to create destructive harmonic distortions (beat frequencies) between the incoming mains supply and the generated electricity. In addition to eliminating distortion and producing an ultra-stable sine wave, the Genesis also controls mains voltage, ensuring the output voltage is maintained at 230V +/- 1%. By way of comparison, the European standard is 230V +/- 10%.

The end result is an extremely precise and consistent 230V/50Hz mains sine wave with vanishingly low levels of distortion, independent of the input quality of the power line. Whatever the level of distortion of the incoming mains supply, Genesis delivers exceptionally low THD (Total Harmonic Distortion) of between 0.05% and 0.17% with typical loads, remaining well below 0.3% with even the most complex loads.

Link to Sine Wave Generators: https://isoteksystems.com/categories/sine-wave-generators/

High Grade Components

Every IsoTek product uses the finest grade electrical components, many custom made, using the highest quality metals and materials which are specifically designed for purpose. Quality doesn’t stop at parts but also extends into the PCB designs, which maintain high levels of amperage and extraordinarily low levels of resistance, using up to eight times the general standard of copper prior to pure silver plating.

Internal wiring also uses high purity coppers combined with silver plating, with either Fluorinated Ethylene Propylene (FEP) dielectric or IsoTek’s Virtual Dielectric of Air (VDA), where a FEP tube is wound around the conductor before an extruded FEP dielectric protects this construction giving unrivalled performance and the ultimate low resistance, high performance internal power delivery system.

Surge protection

Power surges or spikes on the mains supply are generally very bad for any electrical device especially a high quality audio replay system. Power surges occur when there is a boost to the electrical charge at some point in the power lines. This causes an increase in the electrical potential energy, which can increase the current flowing to your wall outlet. This in turn can damage your sensitive audio system.

The IsoTek protection system uses an array of VDRs which offer a cascading level of protection, in some cases over 100’000A. These step in fast and sequentially dependent upon the severity of the encountered power surge or spike. The architecture of the protection circuit extends dramatically and almost instantly when required.

The protection circuit has two primary functions, one to preserve itself and the second to step in gradually as any problem increases, with the ability to act very fast should an extreme condition occur. The protection circuits also protect the filters and the filters assist the protection in the initial stage. Unlike many protection devices these assist sound quality as well as providing protection.  Studies suggest this problem is not subtle and is frequent. The disturbing challenge is the 1’000 to 6’000V range. It is likely most protection systems do very little good and probably cause sound degradation.

Solid OCC Copper Ag

As one would expect the internal wiring of any IsoTek product is of the highest standard, ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air (VDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system.

IsoTek’s internal wiring synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.

System Link

Several IsoTek products feature a System Link outlet, allowing multiple units to be connected in series. This maintains a star earth reference (star grounding) and eliminates the need for multiple wall sockets.

This is particularly useful for joining multiple units together using our System Link cable available in EVO3 Initium, EVO3 Premier, EVO3 Sequel and EVO3 Optimum quality.

3 Year Warranty

As part of our on-going commitment to the highest standards of customer service, IsoTek offers you the opportunity to extend the standard 2 years product warranty to 3 years, free of charge

Simply register your purchase with IsoTek. We do not share your personal details with any third parties without your permission. To read our Privacy Policy please click here

Design

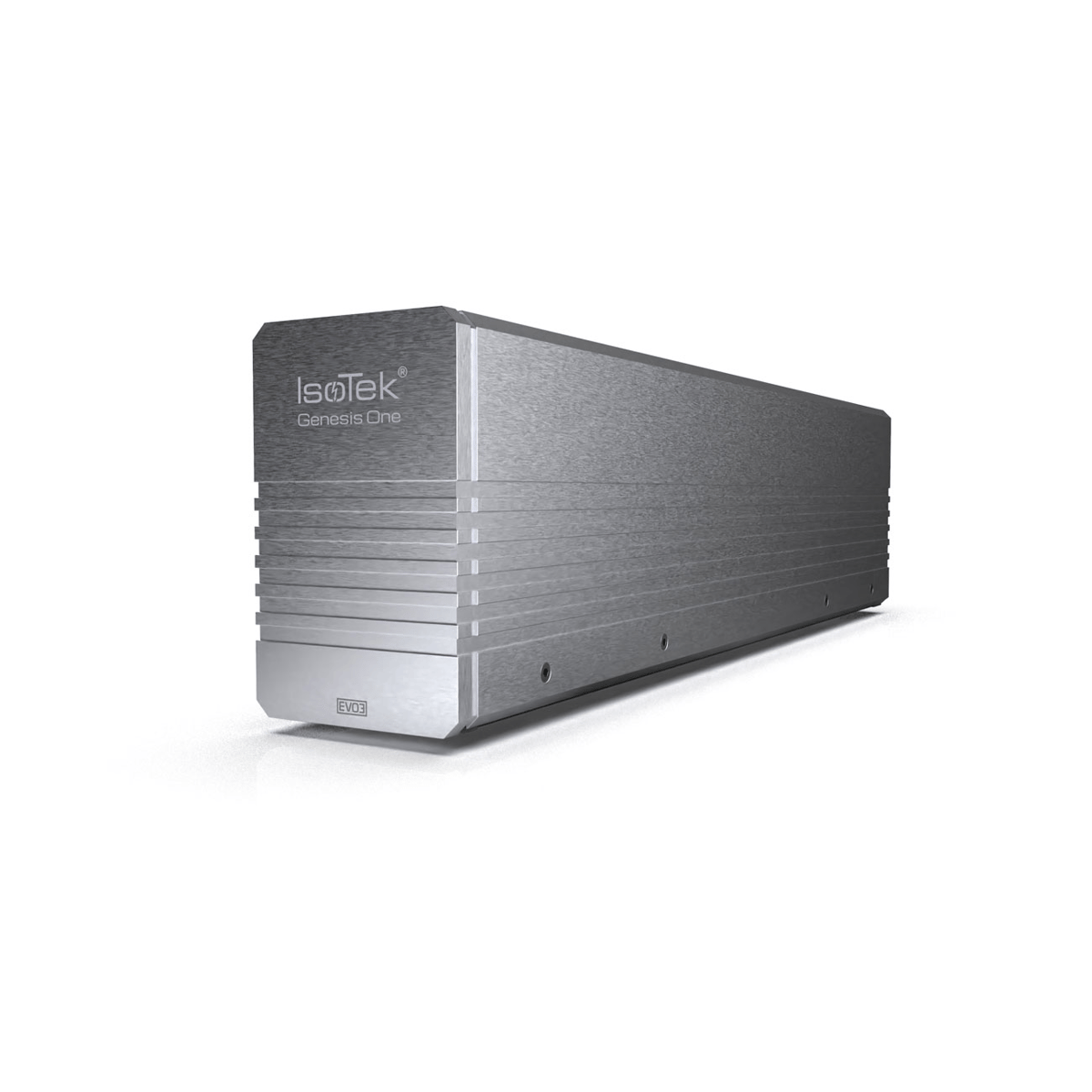

IsoTek’s EVO3 Genesis One is a highly compact state of the art full sine wave generation system, taking technology from IsoTek’s Ultimate Series Genesis.

This product is dedicated to powering front-end components up to a maximum of 100W from a single rear outlet. As most source components are under 50W in power consumption, it is possible to use this product in combination with IsoTek’s EVO3 Gemini power bar. Genesis One is compact measuring 75mm in width, 470mm deep and 125mm high housed in an extruded and machined aluminum chassis. At the rear is a single independent high current output socket designed to drive source components, CD players, DAC, pre-amplifiers and turntable motors. There is also an Auxiliary connection point for adding and powering additional IsoTek power cleaners. For example, a total of six Titan One, Nova One or Genesis One products can be positioned side by side to create a rack width unit.

The internal wiring is of the highest standard; ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air (VDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system.

The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.
