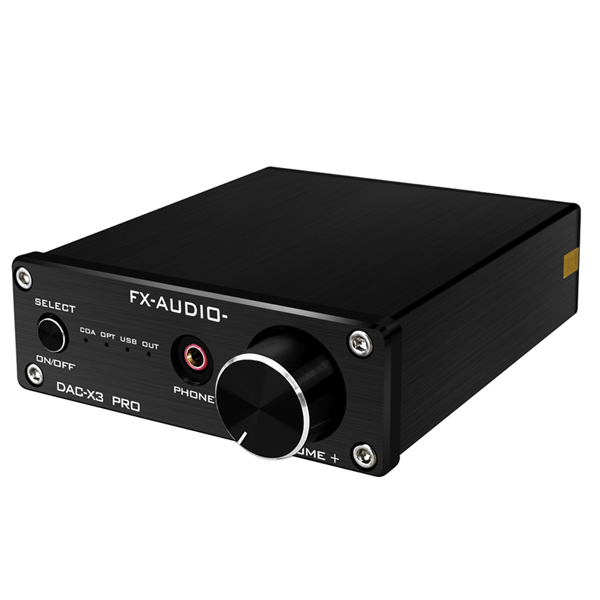

FX Audio DAC-X3PRO

Various Inputs and Outputs

DAC-X3 Pro is not only a audio dac, but also a headphone amplifier. The digital to analog audio converter has PC-USB, optical and coaxial inputs which can fit with many home audio devices. Can connect to mobile phone, TV, DVD/BluRay player or CD player. RCA output can be connected to active speakers or amplifiers. Headphone amp output can drive 3.5mm headphones

Support Phone OTG Drive

The little hifi dac uses digital signal receiving chip CS8416 + USB ASRC chip + ESS9023 decoding chip + NE5532 op amp chip. NE5532 op amp chip can be replaced by AD827 or MUSE02 for different sound quality. Directly support mobile phone OTG drive. You can enjoy Hifi music by your phone with this dac. No special software, app, or driver to install. Plug and play

USB ASRC Transmission & USB Power Supply

USB uses ASRC technology, supporting mobile phone OTG direct drive (24Bit 96kHz). Also it uses USB power supply adaptive technology. When inserting USB cable, it can automatically switch to USB to power the dac. Also you can directly supply power from the DC socket for higher requirements. The whole machine adopts 5V power supply, and the amp part is ±11V, which can perfectly drive the amp circuit

Headphone Amp Output

This dac has an headphone independent amp function, connect with 3.5mm headphones. The volume knob on the front panel can only control the headphone volume. The headphone amplifier circuit optimizes and adds the op amp expansion line, maintains the original clear and natural sound quality, improves the driving force, and reserves the gain interface. Great playbility for DIY

Jitter-Free ESS9023 Chip

DAC adopts ESS9023 which enables it to achieve jitter-free recording level sound quality, with dynamic range of 112dB and sampling rate of 192kHz/24bit. Low distortion. Package includes DAC-X3 PRO, 5V 1A power adapter, RCA cable, USB cable, 12-month warranty
