FiiO BTR7

Portable Bluetooth Amplifier

Color IPS display | High-performance DAC ES9219C*2 | THX AAA-28*2 amps

Wired+Wireless charging support 3.5+4.4mm outputs | One-click “dongle” mode

Qualcomm QCC5124 Bluetooth chip | XMOS XUF208 | Supports app control and OTA upgrade

*Pictures are for reference only.The actual product may vary.

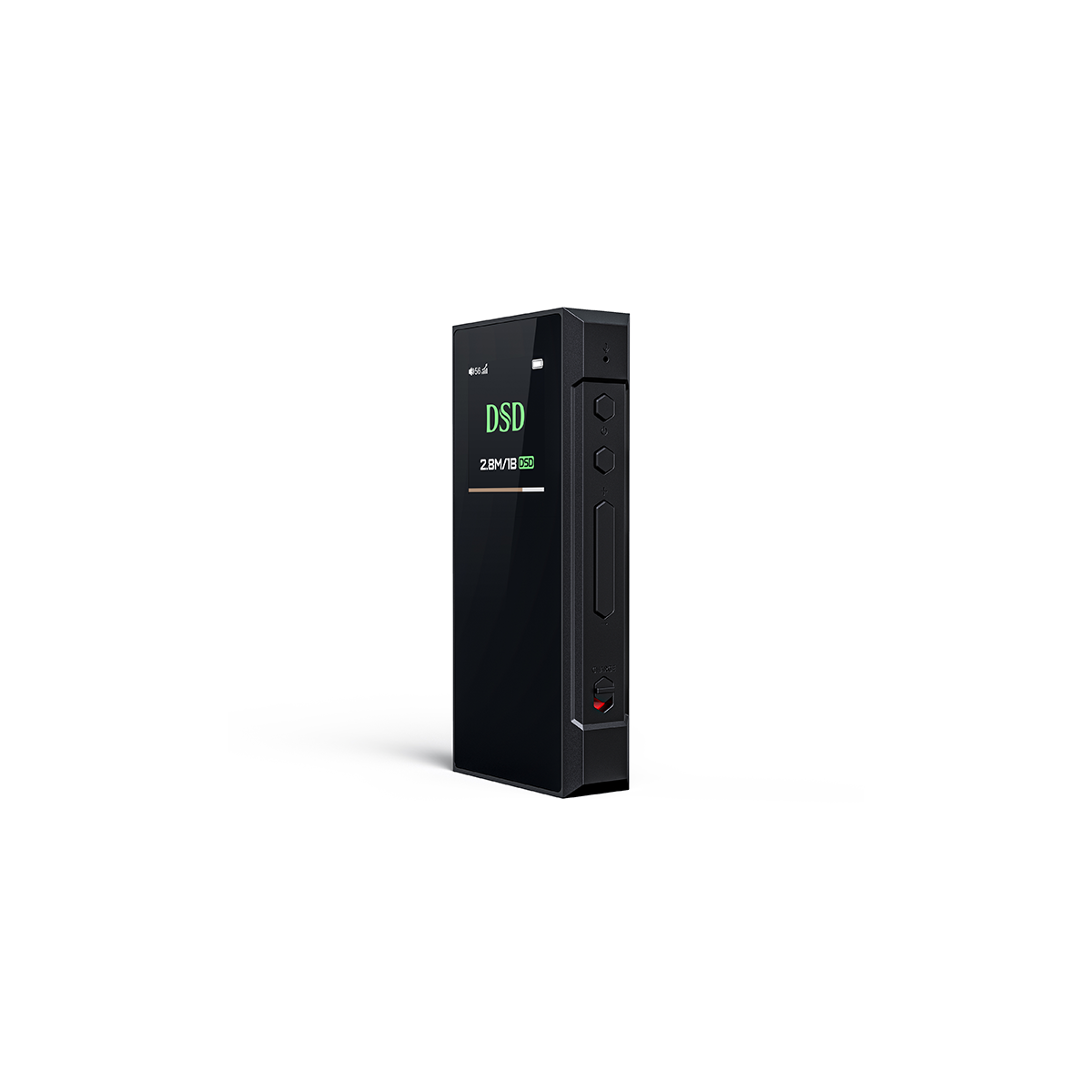

Radiantly brilliant Color IPS display

The brand-new BTR7 features the seventh-generation mecha design language, giving it riveting looks. Its comfort-and-ergonomics optimized laminated aluminum alloy body is paired with a 1.3-inch IPS color display that is the showpiece of the BTR7. The display features a brand-new, colorful UI that presents important information such as volume, power, gain, and audio format in an intuitive way – just another part of the BTR7’s brilliance.

Electrophoresis-processed aluminium alloy body Strong yet delicate

The BTR7 is showing up in a new color scheme- four sides surrounded by mech white, and blue physical embedded in the left and right sides. How eye-catching it is. The electrophoresis-processed aluminium alloy body comes with a rigid layer of coating, scratch and corrosion resistant. In addition, the soft and delicate texture makes every grip comfortable and pleasant.

3 levels of independent HiFi audio architecture for great performance

The BTR7 is designed with an innovative 3-level HiFi audio architecture, including the high-performance DAC+low pass filter+THX amplifiers, which can capture every last detail and dynamics in your music. And with support for MQA, your music will definitely come across clearly and boldly.

Compact yet potent too

The materials used for audio parts are generous. So is the power supply. The whole device uses separated analog and digital sections and a total of 13 LDOs are employed for voltage regulation, guaranteeing pure and massive power.

Extraordinarily bold, THX AAA-28×2 amplifiers

The BTR7 is the first portable Bluetooth amplifier to utilize 2 of the THX AAA-28 amplifiers. The FiiO R&D team had a breakthrough and was able to fit 4 channels of the THX AAA amplifiers into a compact body for a fully balanced audio design – resulting in 88% more single-ended power output and 30% more balanced power output compared to previous designs. Experience an extraordinarily bold symphony of music with the BTR7.

Wireless freedom, Qualcomm QCC5124 Bluetooth chip

Experience your music when travelling without the mess of wires! The Qualcomm QCC5124 Bluetooth chip, with its dual DSP and dual-core CPU architecture, not only ensures stable connections but also supports both high-res formats like LDAC/aptX HD/aptX Adaptive and more common formats like AAC/SBC.

Patented design Seamlessly integrated metal antenna

Befitting of its status as a high-end Bluetooth amplifier, the BTR7 adopts FiiO’s own patented seamless metal frame antenna design, which not only looks handsome but also ensures Bluetooth connections are more stable and interference-free.

*Patent no.: ZL2021206393368

All-encompassing, XMOS XUF208 control chip

When used for USB Audio, the BTR7 relies on the XMOS XUF208 chip to receive and decode audio data streams, with support up to PCM 384kHz and native DSD256. In USB DAC mode and with an MQA player, up to MQA 8x rendering is supported.

Worry-free battery life Wired+Wireless charging support

As a multifunctional Bluetooth amplifier, the BTR7 needs plenty of battery power when used throughout the day. Not only has the battery capacity been increased to 880mAh, but both wired and wireless charging supports allow you to charge in more scenarios. USB wired charging is fast and efficient, while Qi wireless charging is convenient and will automatically stop charging when the battery is full.

Widely compatible, 3.5+4.4mm dual output

Each update of the BTR series reflects contemporary trends in the personal audio world. With the BTR7, this means a 4.4mm balanced headphone output in addition to the traditional 3.5mm single-ended headphone output - for a more detailed audio experience in a jack format now widely used.

A new way to listen One-click “dongle” mode

The BTR7 can also be used as a “dongle”, acting as a wired decoder and headphone amplifier for your phone. Simply press the “CHARGE” button with one click to switch into and out of “dongle” mode. Compared to the typical “dongle”, the BTR7 does not consume your phone’s battery power while still maintaining its great sound quality and large power output.

*The BTR7 standard edition includes a Type-C to Type-c adapter cable.

*It is a Bluetooth receiver, which means it cannot be connected to a Bluetooth headphone/speaker.

*The BTR7 Apple edition includes two adapter cables, Type-C to Type-C and Lightning to Type-C.

In total control Companion app control and OTA upgrades

The BTR7 not only supports in-line controls, but also supports control done via a companion app – allowing you to operate it without even taking out the device itself! For instance, the equalizer functionality in the companion app allows you to adjust your music to your tastes conveniently from your phone/device. Through the app, the Bluetooth and system firmware can also receive OTA updates. And there are even more functions waiting for you to be discovered in the companion app!

*If the USB firmware is stable there is no need to update it, but updates can be done via a USB cable if necessary.

Two connected devices support

Listen to your desire

The BTR7 supports being connected to 2 Bluetooth devices simultaneously, and you can easily control which is the active connected device by going into the “Devices List” menu. This allows you to be listening to music on one device, and quickly switch to another phone to take a call.

Bluetooth smart switch

A truly worry-free experience

The BTR7 is smarter, allowing you to just use it without any worries. With “UAC” set as the input priority, when the BTR7 is connected to the computer via USB in UAC 2.0 mode the Bluetooth will automatically be turned off – allowing you to enjoy your music without interruptions. After disconnecting from USB, the BTR7 will automatically switch Bluetooth back on and connect to the previously used device, letting you seamlessly pick up where you left off.

For more exciting features

Check out the FiiO Control App！

Screen wake-up

To better cater to your habits, the BTR7 gives you two choices for how to wake up the screen - either press any key or press the power button specifically.

Balanced Boost

The balanced boost for high impedance headphones is now available. With this function on, power output under high impedance loads (such as 300Ω) will be increased by 2.5 times over the normal output reaching over 100mW, making the the BTR7 more capable of driving large over-ear headphones.

*Please enable this function on the FiiO Control app.

Charging Protection

If you charge the BTR7 when using it as a wired decoder for long periods of time, you can enable the charging protection function to protect the battery. After turning on this function, the battery will stop charging when reaching 80% full, and will only start charging once the battery goes below 20% full. No need to worry about battery health when using the BTR7.

Better protection with the exclusive leatherette case

The BTR7 comes with a carefully chosen Bejirog leatherette case, which was specially processed and can present different textures under different lights. The accurately cut workmanship displays complete UI information of the BTR7. Moreover, the side buttons were handled with hot pressing process with concave-convex identifications, making for easier and comfortable operations even when not looking at the buttons.

With MagClip Enjoy Hi-Fi on the go with greater ease

When used with the magnetic bundling kit MagClip, it is locked securely without wobbling, allowing for a more comfortable portable Hi-Fi experience!

Generous accessories

Type-C USB cable×1, Type-C to Type-C data cable×1, Leatherette case×1, Manual×1, Warranty card×1
