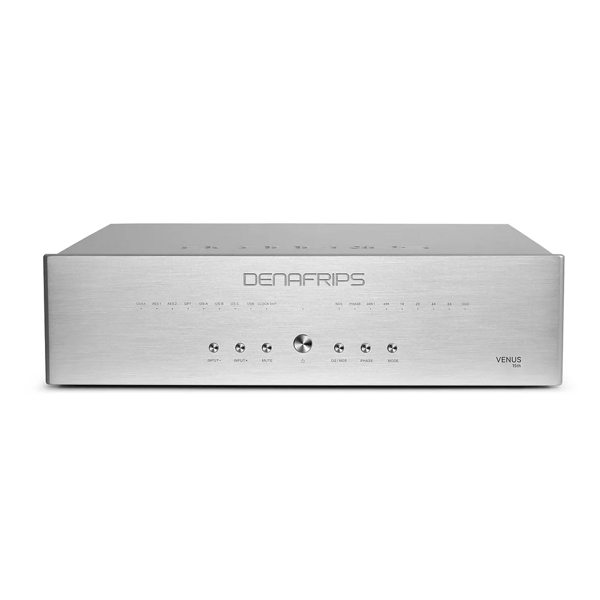

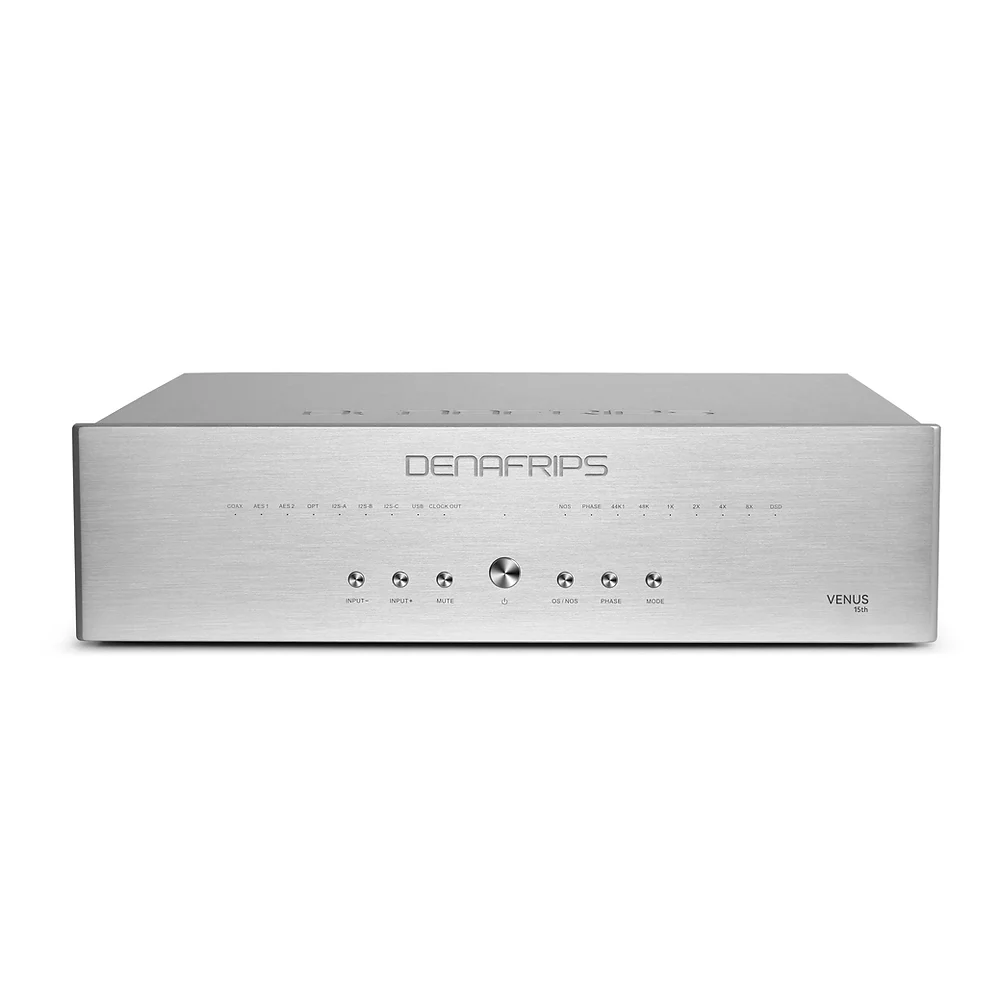

Denafrips VENUS 15th DAC

DENAFRIPS VENUS 15th R2R DAC

Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Matched Precision Thin Film 0.005% R-2R Network Arrays
• Encapsulated Flagship Ultra Low Noise Power Supply
• High Purity Gold+Silver+Copper Alloy AC Transformers
• High-end Oven Controlled Crystals OCXO
• Adaptive FIFO Buffer Reclocking
• Direct Digital Signal Processing FPGA
• DSD1024, PCM1536 Supports On USB & I²S Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux
• Dual AES/EBU Input Supports
• Sharp/Slow Filters Option
• I²S Pinout Configuration
• I²S DSD Channel Swap Configuration

DSD

• DSD64 (DoP) on Coax/AES/Opt Input
• DSD1024* On USB & I²S Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB & I²S Input

Sampling Mode: Non-Oversampling NOSOversampling OS

Digital Input

• Coax via RCA
• TOSLink x 1
• AES/EBU x 2
• USB2.0 Type B
• I²S via HDMI LVDS
• I²S via RJ45 LVDS
• I²S via RJ45 LVCMOS

Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

Clock Output BNC 75Ω

• 44.1KHz, 48KHz
• 22.5774Mhz, 24.576Mhz
• 45.1548MHz, 49.152Mhz

Frequency Response: 20-80KHz (+1/-3dB)

THD: <0.0015%(A)

S/N Ratio: >127dB(A)

Dynamic Range: >132dB

Stereo Crosstalk: <-120dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 430W x 380D x 125H mm (Includes Footers)

Package Dim: 610 x 570 x 275 mm

Package Content: DAC only. No power cord & remote control.

Weight: 19.0 Kg

Color: Silver / Black

Warranty: 12 Months
