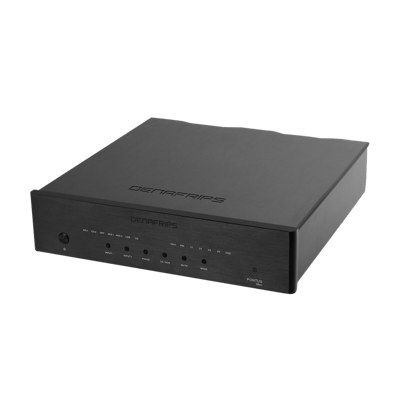

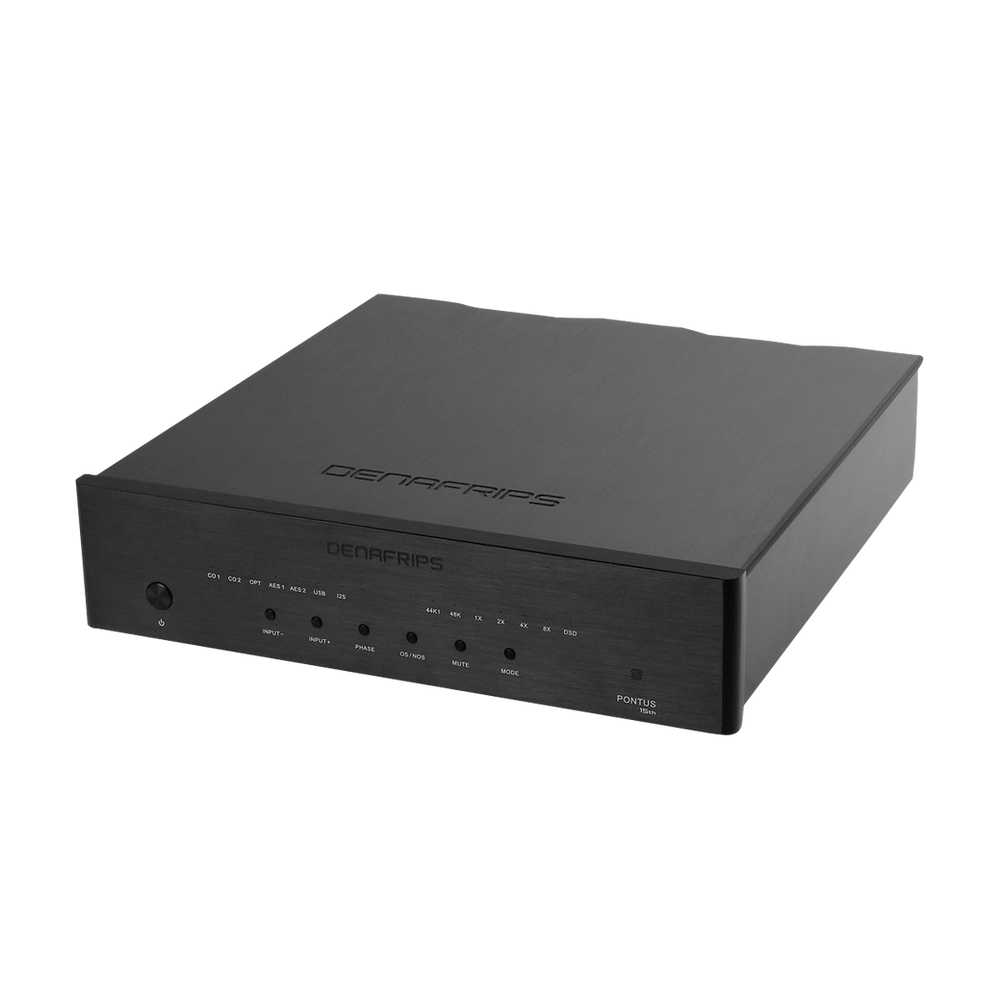

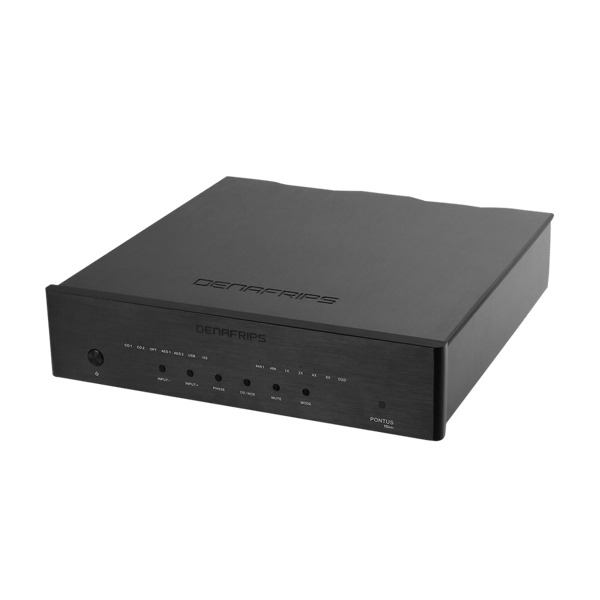

Denafrips PONTUS 15TH R-2R DAC

Package Content : PONTUS 15TH R-2R DAC only.

Pontus15TH Anniversary Edition

• Enhanced, Fine-Tuned PSU

• Redesigned Power Supply Module with Dual O-Core Transformers 80VA x 2

• High-biased constant current delivery to the Digital and Analog circuitry via Silver Cable

• Upgraded 12th Anniv. Firmware

Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)

• Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors
• Encapsulated Premium Ultra Low Noise Power Supply
• LPNO Crystal 45.1548MHz, 49.152Mhz
• Adaptive FIFO Buffer Reclocking
• New Improved Digital Signal Processing FPGA Code
• DSD1024, PCM1536 Supports On USB & I²S Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux
• Dual AES/EBU Input Supports
• Sharp/Slow Filters Option
• I²S Pinout Configuration
• I²S DSD Channel Swap Configuration

DSD

• DSD64 (DoP) on Coax/AES/Opt Input
• DSD1024* On USB & I²S Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB & I²S Input

Sampling Mode: Non-Oversampling NOSOversampling OS

Digital Input

• Coax 1 via RCA
• Coax 2 via BNC 75 Ω
• OPT x 1
• AES/EBU x 2
• USB2.0 Type B
• I²S via HDMI LVDS

Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

Frequency Response: 20-70KHz -3dB

THD+N: 0.002%

S/N Ratio: 120dB

Dynamic Range: >121dB

Stereo Crosstalk: -110dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: W320 x D330 x H110 mm (Including feet)

Package Dim: 470 x 440 x 175 mm

Package Content: DAC only. No power cord & remote control.

Weight: 12.5 Kg

Color: Silver / Black

Warranty: 12 Months
