Dali RUBICON 5

Wood Fibre Cones

The wood fibre cone gives a light, rigid and uneven surface for even, piston-like motion and greatly reduced surface resonance.

Patented SMC

With an SMC magnet pole-piece surrounded by a slitted copper cap, the effect of the SMC is focused and maximised to reduce distortion.

Cabinet Construction

Creating separate chambers for each driver enables us to individually tune them for optimal output.

Hybrid Tweeter

Our signature DALI hybrid tweeter combines a dome tweeter and planar element for exceptional high-frequency rendering.

AN IMPRESSIVE PERFORMER

Perfect for stereo listening or surround

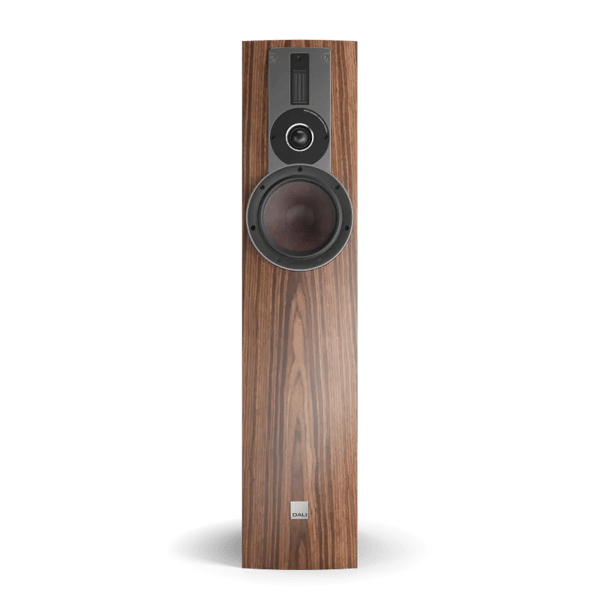

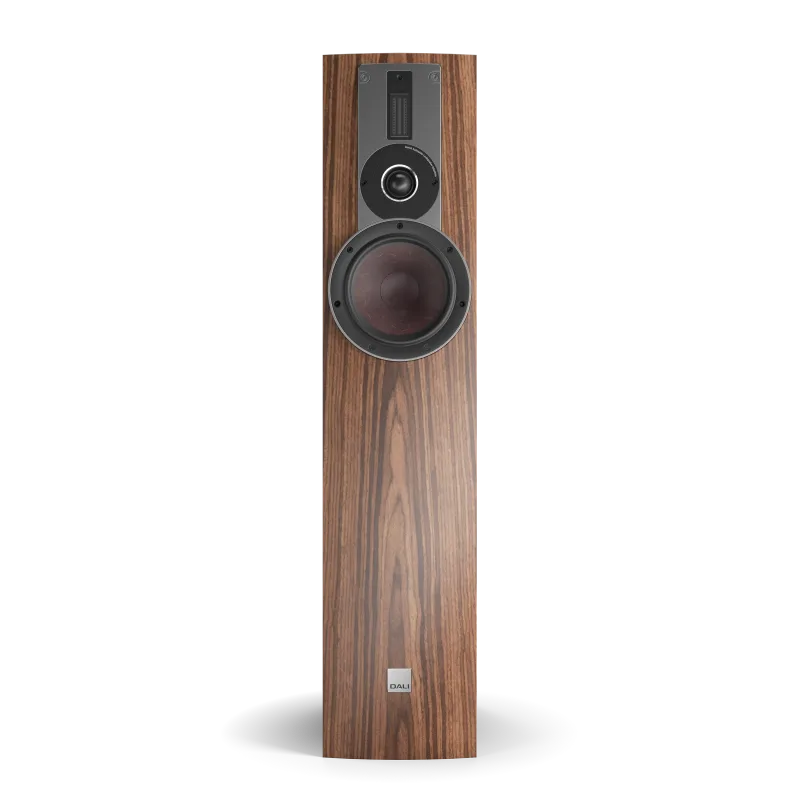

Producing superior sound at a size that's just right for the average living space, the RUBICON 5 is the first of the floorstanding loudspeakers in the series. It expands the sonic performance of the RUBICON 2 by adding a hybrid tweeter and a larger cabinet, which extends and widens the high frequencies for improved detail and adds more well-timed, deep bass for more presence. The RUBICON 5 is perfect for stereo listening or as the front speakers in a medium-sized surround setup.

PATENTED SMC

Reducing distortion with SMC

The RUBICON 5 draws on the heritage from the SMC-based 'Linear Drive System', introduced with the EPICON series. With SMC, we achieve extremely low distortion and maximise detail, even at low volume. The drivers are manufactured in-house at our production facilities in central Denmark and feature the latest in magnet motor technology. The RUBICON 5 sets new audio quality standards for Hi-Fi lovers around the world.

6½" WOOFER

Drawing on technology from EPICON series

The woofer cone has a light, rigid and randomly uneven structure, which lowers the complexity of the central part of the motor, ensures piston-like movement, significantly reduces the possibility of surface resonance and minimises distortion. Designed specifically for the RUBICON 5, the soft, low-loss rubber surround includes a cast-aluminium chassis designed for maximum airflow around the cone and magnet system.

DALI HYBRID TWEETER

The master of wide dispersion

The DALI hybrid tweeter module features a soft dome tweeter and a planar element that combine to create an amazing rendition of high-frequency details. The voice-coil used in the RUBICON 5 soft dome is extremely light and agile, which helps it deliver a broader bandwidth. The planar tweeter is the master of wide dispersion and, in combination with the soft dome, reaches as low as 2.5 kHz, providing continuous wide dispersion as the soft dome becomes more directional at higher frequencies. This extreme bandwidth and ultra-wide dispersion is important to DALI's sound philosophy.

CABINET DESIGN

Blending elegant design & functionality

The gracefully elegant RUBICON 5 cabinet provides a rigid foundation for the low-loss drivers mounted directly onto the 25 mm thick front baffle. On this inside, the bass reflex port is positioned directly behind the woofer to minimise turbulence and deliver exceptional timing.
