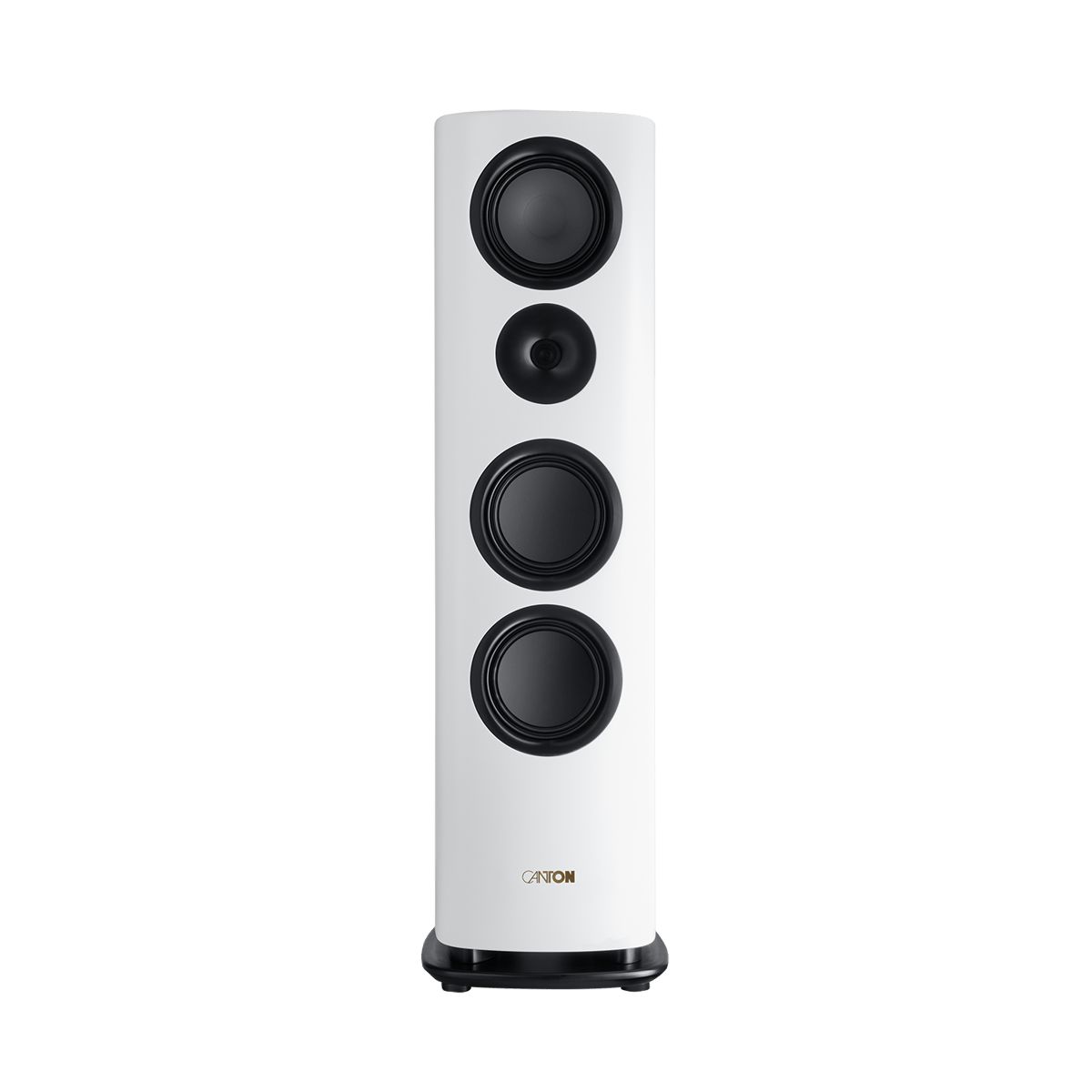

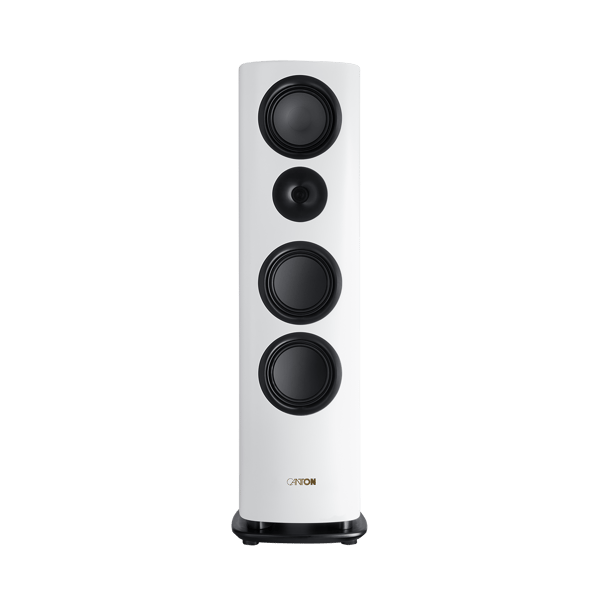

Canton Reference 5 GS Edition

High End Floorstanding speaker

Informations

• 3-way bass reflex system
• Black Ceramic tungsten technology
• 370 watts
• 30 x 102 x 46 cm (W x H x D)

Dimensions

30 x 102 x 46 cm (W x H x D) including base construction

Power

370 watt music load capacity

Weight

36 kilogram

High-End Sound

Iconic sound for the highest quality demands

BCT diaphragm

Chassis with new BCT diaphragm (Black Ceramic Tungsten)

Cabinet shape

Sweeping cabinet shape for unlimited music pleasure

WBT-nextgen™

WBT terminals for optimal signal connection

Fabric cover

Acoustically neutral cover with magnetic attachment

Warranty

10 years warranty on Reference passive loudspeakers

DLC tweeter

The new tweeter system with diamond-coated DLC dome tweeter ensures extremely precise and clear reproduction of high frequencies. The additional integrated, newly developed sound lens acts as a wave guide and mechanical air cushion. It optimizes efficiency and significantly expands the bandwidth of the high frequencies - for an airy, spatial sound stage and finely resolved details that bring music to life.

High-end crossover

The crossover used in the Reference 5 GS has been completely redesigned and fitted with high-quality MKP capacitors from Mundorf - one of the world's leading manufacturers of audiophile components. These selected components ensure minimum losses and maximum sound fidelity. The result: a balanced, phase-stable sound image with impressive dynamics, authenticity and fine detail.

Gold-plated connections

Das neu gestaltete Anschlussterminal der Reference 5 GS ist mit vergoldeten WBT nextgen™-Anschlussklemmen ausgestattet – langlebig, verlustarm und bestens geeignet für Bi-Wiring oder Bi-Amping. Für den klassischen Betrieb sind hochwertige, hartvergoldete Kupferbrücken im Lieferumfang enthalten. Dank integrierter RC-Technologie (Room Compensation) lässt sich der Pegel von Mittel- und Hochtönern in 1,5 dB-Schritten anpassen. So können Sie Ihre Lautsprecher exakt auf Ihre Raumakustik und Ihren Hörgeschmack abstimmen.

Enclosure shape

The enclosure architecture is based on the latest developments in the Reference series: rounded baffles and elaborately curved sides, bases and lids are manufactured on a precision 5-axis CNC milling machine. This design significantly reduces natural resonances and enables a particularly homogeneous dispersion pattern. Two 174 mm woofers and a midrange driver of the same size with black ceramic tungsten cones (BCT technology) deliver powerful bass and finely resolved mids - perfectly matched to the large cabinet volume and the efficient bass guide system.

The highlights at a glance

The Reference 5 GS is a statement for the highest sound quality and German engineering. Equipped with a newly developed DLC tweeter, a finely tuned BCT midrange driver and two powerful woofers with bass guide, this floorstanding loudspeaker performs at the very highest level - dynamically, precisely and emotionally. The WBT nextgen™ connection terminal with RC technology enables flexible and individual adjustment, while the elaborately round-milled housing ensures outstanding acoustic properties. Whether you are a music lover, purist or high-end fan: the Reference 5 GS impresses with state-of-the-art technology, uncompromising workmanship and a timeless look.
