Audio-Technica VM750SH #1
Audio-Technica VM750SH variant 1
Audio-Technica VM750SH variant 2
Audio-Technica VM750SH variant 3

Audio-Technica VM750SH

United States flag
View at Audio-Technica
Specifications6 reviews & sources

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Professional reviews and sources for this product's Watt'n Potatoes analysis.

Forum Mentions

Specifications

Cartridge & Stylus
20-27,000 Hz
Frequency Response
30 dB (1 kHz)
Channel Separation
23°
Vertical Tracking Angle
1.8-2.2 g (2.0 g standard)
Vertical Tracking Force
Nude square shank
Stylus Construction
47,000 ohms
Recommended Load Impedance
2,700 ohms (1 kHz)
Coil Impedance
800 ohms
DC Resistance
460 mH (1 kHz)
Coil Inductance
4.0 mV (at 1 kHz, 5 cm/sec)
Output Voltage
1.0 dB (1 kHz)
Output Channel Balance
2.7 x 0.26 mil Shibata
Stylus Shape
Aluminum tapered pipe
Cantilever
40 x 10-6 cm/dyne
Static Compliance
10 x 10-6 cm/dyne (100 Hz)
Dynamic Compliance
Half-inch
Mounting
17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
Dimensions
Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set
Accessories Included
Half-inch mount
Mounting Feature
100-200 pF
Recommended Load Capacitance
VMN50SH
Replacement Stylus
0.26 x 2.7 mil
Stylus Size
VM Type
Type
8.0 g (0.3 oz)

Manufacturer's Description — Audio-Technica

VM750SH

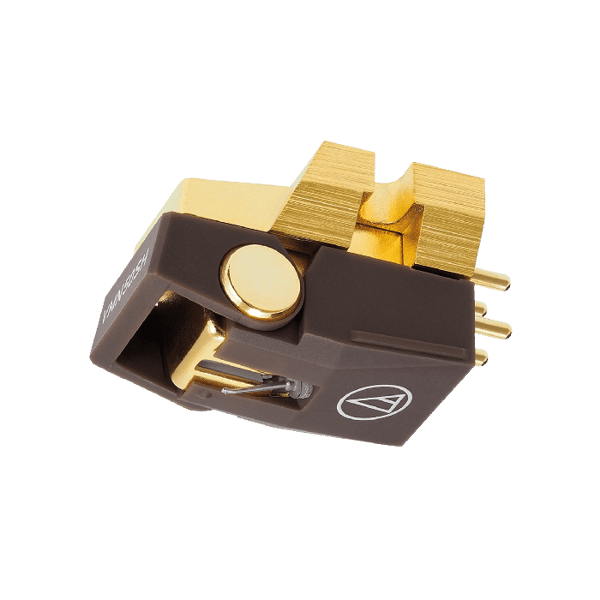

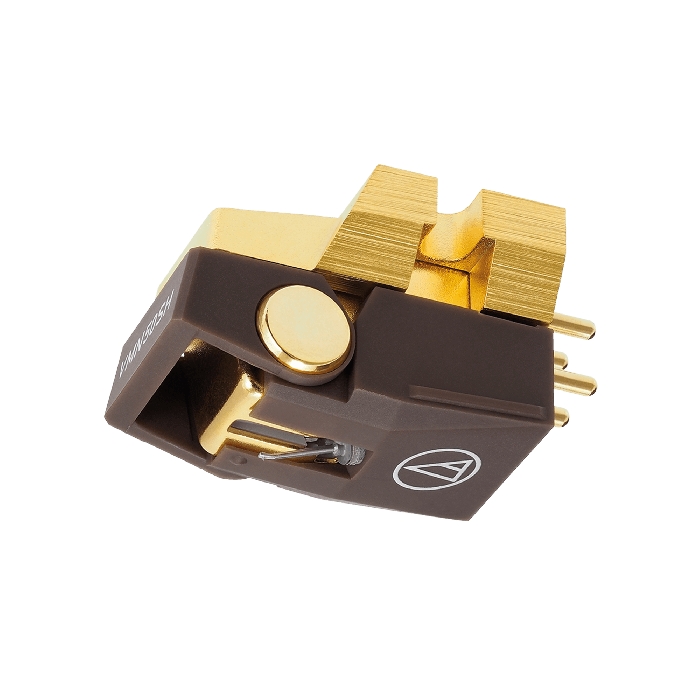

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.
