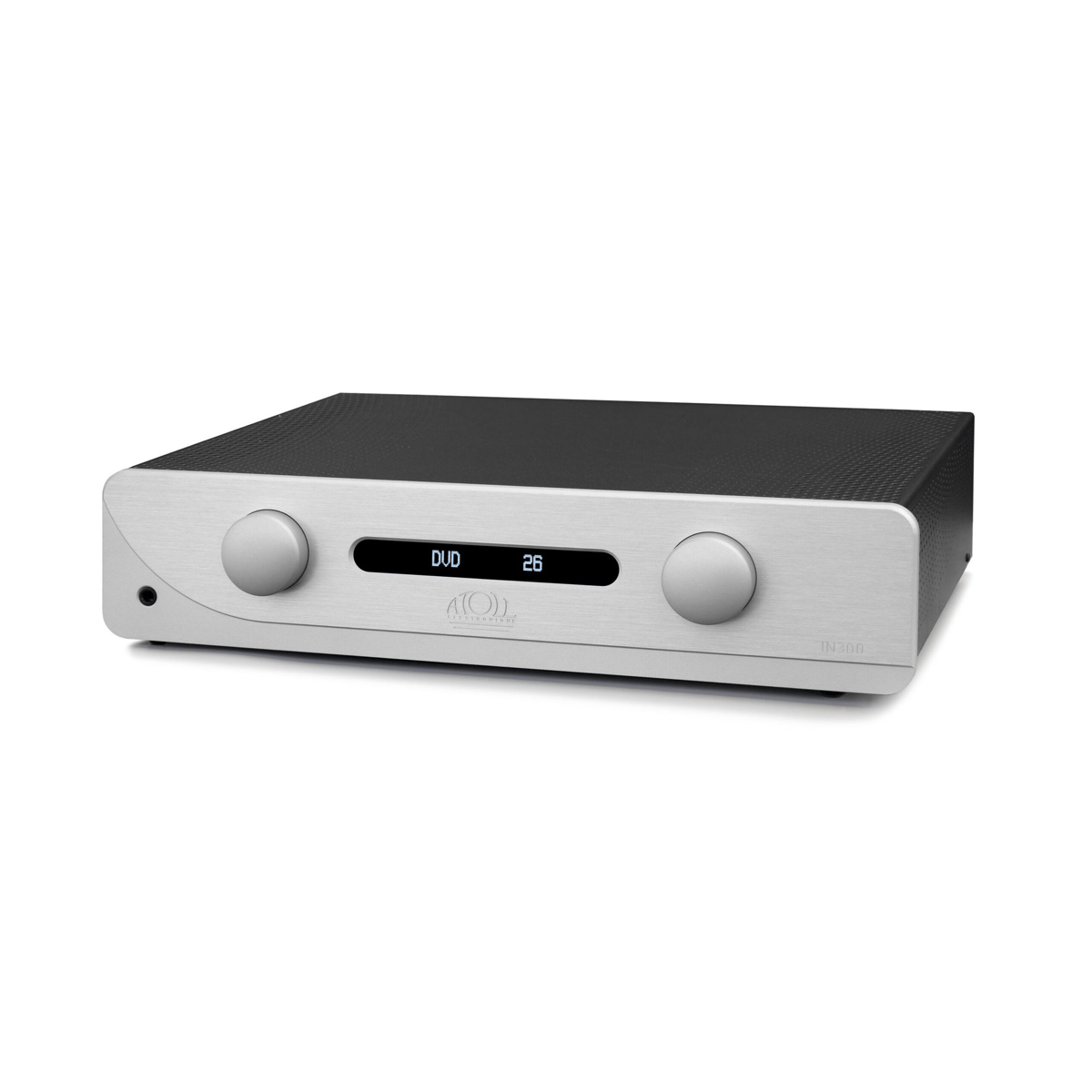

The IN300 Evolution integrated amplifier features reworked power supplies, improved audio performance, and a low-power mode. DAC boards are now optional.

• 8 mm brushed aluminium front panel, micro-blasted and anodised, with high-precision engraving.
• 2 x 150 Wrms / 8Ω.
• 1.5mm thick steel chassis.
• Two 440 VA toroidal transformers for the audio stages plus 10 VA for the digital stages.
• Soft start stage to avoid power surges.
• High-end ABSOLUE CREATIONS internal wiring on the power supply side.
• Filter capacitors: 12 x 6800 μF high-quality capacitors with a low ESR specifically designed for ATOLL.
• High-quality, shielded MKP coupling capacitors.
• Bipolar transistor and LED current sources to ensure perfect voltage stability.

• Triple push-pull MOS-FET power stage.
• Polarisation of the output stages in class A/B.
• Possibility of choosing standby mode: Low consumption or preheating.
• 2 volume attenuators: 1 per channel to maintain the dual mono architecture.
• Possibility to manage balance and memorise it.
• Possibility to rename the inputs.
• High contrast OLED display (on or off mode after 5 seconds of inactivity).
• Double-sided printed circuits with nickel/gold finish.
• ATOLL global remote control supplied as standard.
• The IN300 EVO can receive the following optional boards:
            – DAC boards: DA100 and DA200.
            – PHONO boards: P50 and P100 (can be combined with DAC boards).

• Specific copper speaker output connectors specially manufactured for ATOLL.
• Internal wiring of the speaker outputs with high-end cable.
• Output connectors (RCA) gold-plated.

CONNECTIVITY

Analog Inputs
5 Line Inputs (including 1 AUX input for optional PHONO board).
1 BY-PASS Input.
1 XLR Input.

Outputs
1 Pair of Speaker Outputs.
2 Pre-Out Outputs.
1 Ø 6.35 mm headphone jack output.
1 12V Trigger Output.

Various
Optional DA100 and DA200 digital boards can be added.

View the standard for XLR connector wiring.

Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
