Elipson Connect 2130 Xi
Elipson
April 22, 2025
Elipson Connect 2130 Xi - Hi-Res Streaming amplifier
Designed, engineered and made in France.
The Elipson Connect 2130 Xi amplifier has a built-in streamer, Bluetooth 5.1, WiFi and LAN connectivity, as well as AirPlay 2, Chromecast, UPnP and DLNA functionality, allowing you to stream your favourite music in high quality, wirelessly. Line-in and RCA inputs offer the flexibility for connecting a variety of audio sources, while the subwoofer output provides an additional option for boosting low frequencies.
Perfectly adapted to the needs of installers the Connect 2130 Xi is equipped with Class D amplification, delivers 2 x 130W of power and a PFC power factor correction system for optimum regulation of the power supplied, whatever the mains voltage, guaranteeing harmonic distortion of less than 0.003% and a signal-to-noise ratio of more than 119 dB.
It can be activated in mono mode, delivering 250 W RMS and 500 W peak at 8 ohms. It is also compatible with 100V loudspeakers for sound reinforcement in large spaces. With compact dimensions of 215 x 44.5 x 220 mm and a weight of just 2 kg, the Elipson Connect 2130 Xi amplifier fits easily into any professional environment. In addition, an optional rack-mountable front panel allows 2 Connect 2130 Xi to be integrated, providing a neat installation in a standard rack.
Low impedance mode - 100V

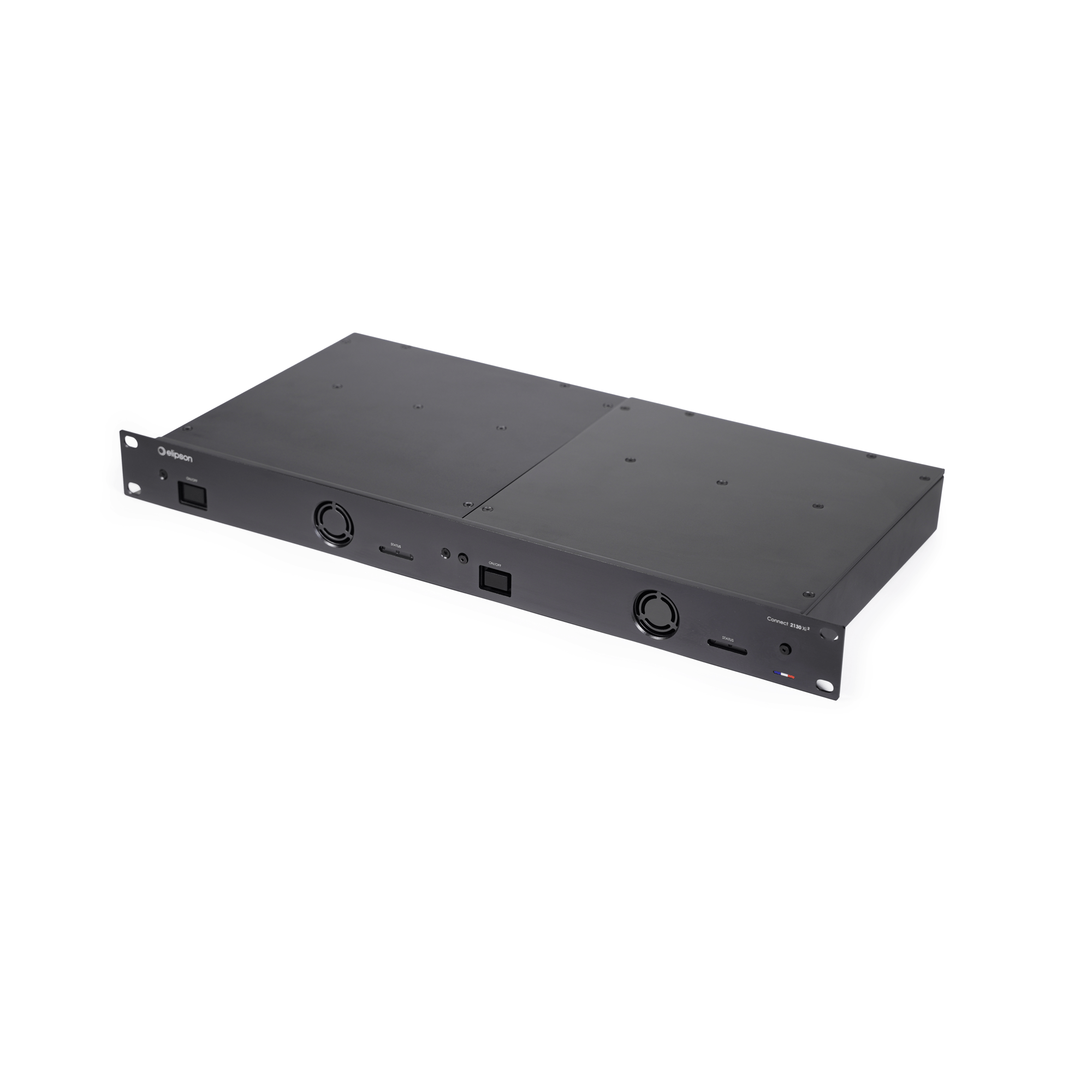

Rackable
- 1U dimensions

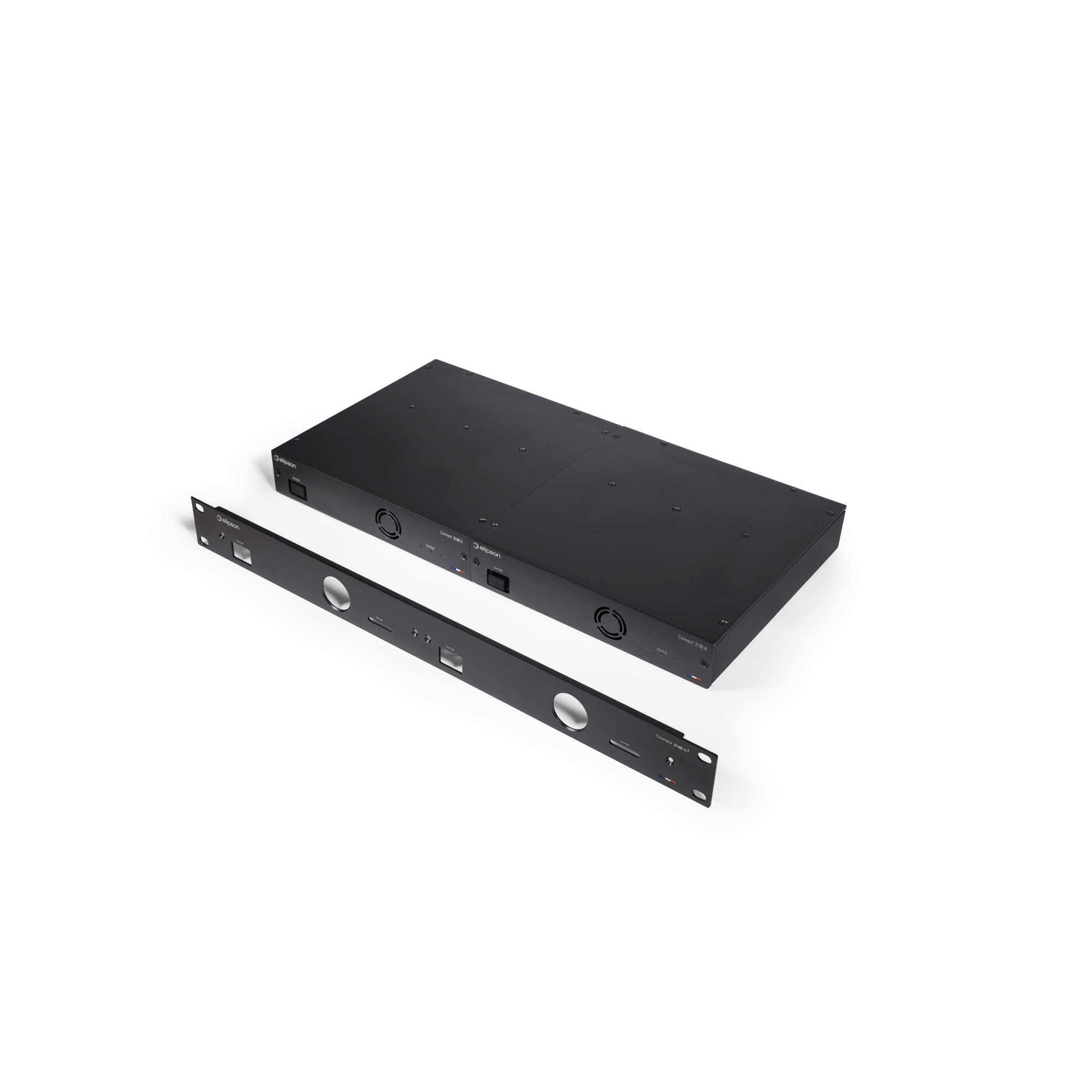

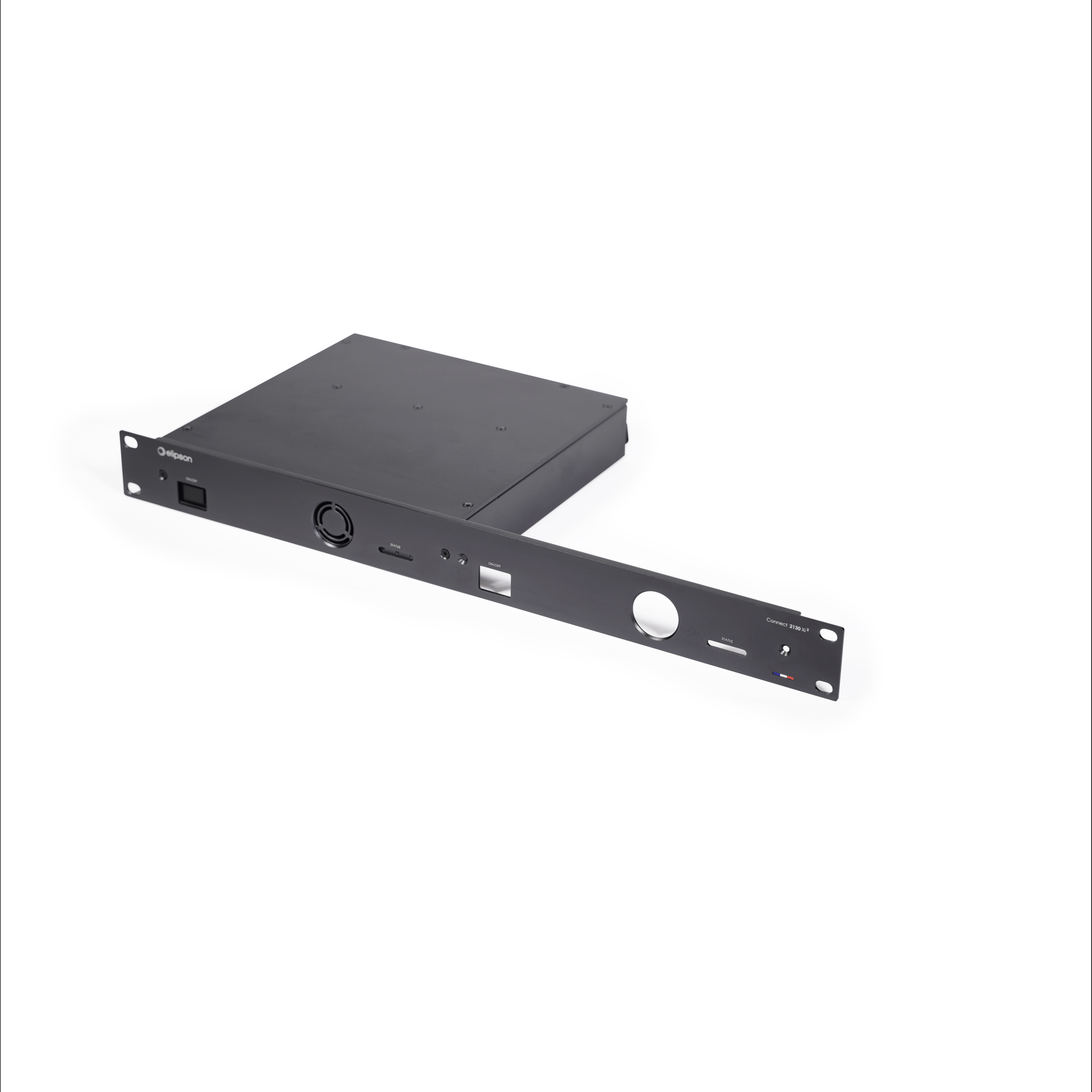

- Optional front panel
Output settings
Stereo / Mono bridge / 100V
Trigger
In & Out (5 - 12V)
State-of-the-art Connectivity and Streaming
The Elipson Connect 2130 Xi connects to the Internet via WiFi or Ethernet, giving you access to a multitude of streaming services such as Spotify, Deezer, Tidal, Qobuz and Amazon Music, as well as iHeartRadio and TuneIn. Its ESS SABRE ES9023 DAC supports high-resolution formats up to 24 bits / 192 kHz, guaranteeing exceptional audio quality. With integrated AirPlay 2, Chromecast and Bluetooth 5.1, you can stream your music from any device. The multi-room functionality allows you to create a homogenous musical ambience in each of your rooms.
Type - Compact connected amplifier (low impedance mode - 100V)
Technology - Class D
Power - 2 x 130 W RMS @ 4 & 8 Ω
Power bridge mode into 8 Ω - 250 W RMS / 500 W peak
Harmonic distortion (THD) @ 1 W - < 0,003 %
Frequency response - 20 Hz - 50 kHz
Signal-Noise ratio - 119 dBA
Damping factor - 350
Inputs
• Unbalanced RCA
• HDMI ARC
• Bluetooth 5.1
LAN network
• Wi-Fi 2.4 GHz / 5 GHz 802.11 b/g/n/ac
• Ethernet RJ-45
Bitrate / DAC Chip - Hi-Res : 24 Bit - 192 kHz / ESS SABRE ES9023
Streamer
• AirPlay 2
• Chromecast built-in™
• UPnP
• DLNA
Applications
• WiiM APP(supports Android/iOS system)
• Spotify, Deezer, Qobuz, Amazon Music,Audirvana, Tidal, Tunein etc.
Output configuration - Stereo / Bridge mono / 100V
Trigger - IN & OUT (5 - 12V)
Led - Clipping and protection
Max temperature - 40° C (fan automatic trigger)
Pricing
The Elipson Connect 2130 Xi will retail for £699.00
For more information please contact Avoke Ltd.
