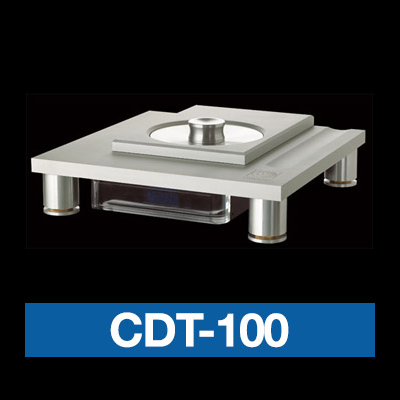

Ypsilon Electronics CDT-100 CD Transport

The mechanism is mechanically modified and assembled within a massive construction of a sandwich of thick stainless steel and aluminum plates. In this way, the traditional box shaped chassis is avoided and along with that the associated resonance problems are greatly reduced.

The result is a solid, coherent construction that in combination with the suspension system provides vibration free operation.

The CDT 100 is a stand-alone product of high performance. It carries a Spdif out put so it can be linked to any outboard DAC. But for ultimate performance, which will astonish all who encounter the combination, then via the 5 pin output to the Ypsilon DAC-100.

CDT-100 contains a non oversampling DAC , with multi bit Burr Brown dac chips.Power supply regulation for the dac is only with shunt regulators.

The current output of the DAC chips is level shifted in the current domain and through an in house manufactured c-core transformer becomes a voltage signal directly at the nextgen output connectors. No feedback is used and only one low noise S-E class A jfet is involved in the signal path. Purity and transparency is the result,so when inserted in a SET system then one can fully appreciate the full sonic glory.

CDT-100 provides 3 outputs.

• One SPDIF 75 Ω next gen connector.
• One pair of RCA , analog connections , for use as a CD player.
• One Neutric 5-pin analog current output for use with DAC-100.

We strongly recommend the use of the 5-pin output with DAC-100 for optimum performance. It is our belief that transmitting audio in the digital domain (SPDIF), has its imperfections and adds a certain character to the sound. The frequency of bit clock and data bit is too high for transferring the signal in a transparent way.
