Wyred 4 Sound PS-1 Modular Power Supply

Modular Design

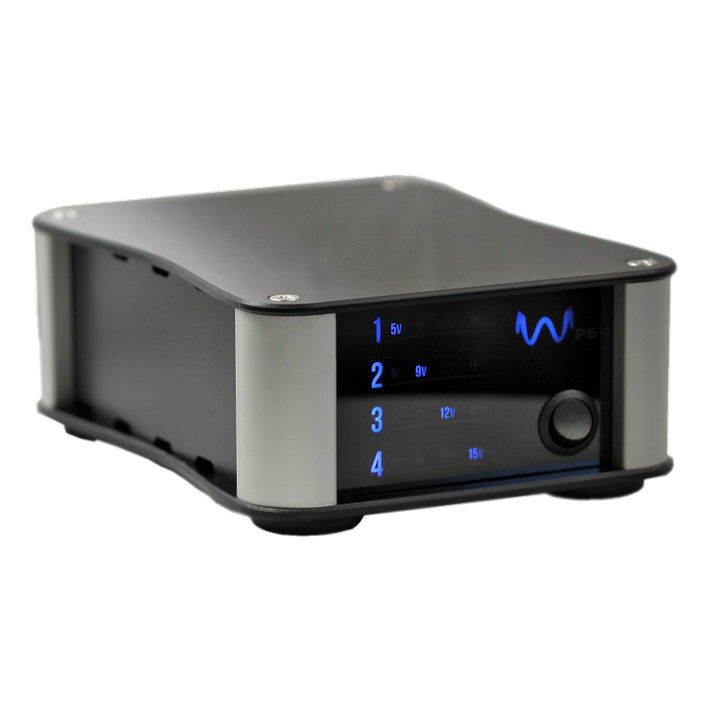

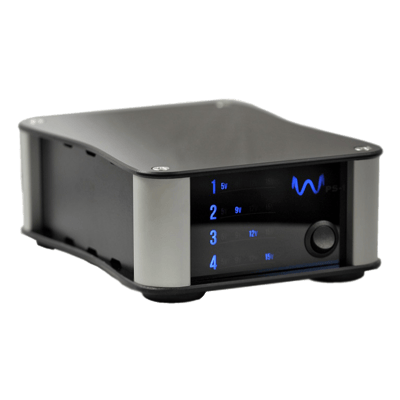

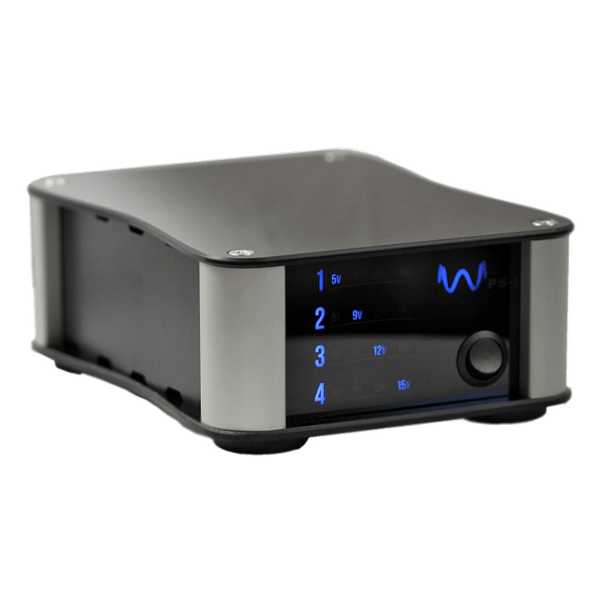

The beauty of the PS-1 starts with an emphasis on real value: it's modular design allows up to four devices to be powered at once, and they can even be different voltages! The PS-1 has four power zones in back, each power zone holds a power module. Each power module can be set to one of four voltages (5, 9, 12, 15v) and can power one device. To change the voltage, simply slide out the module, move the internal switch to the new voltage, and slide it back in. The front panels LED display instantly tells you which zone(s) and voltages are in use. Additional power modules can be purchased as needed, ensuring that now and in the future, you won't have to worry about powering your device.

Compact and Affordable

The PS-1 is just 6.25" x 8.25" x 3.25". Additionally, since it is made out of extremely sturdy but lightweight material, most of the weight comes from its very robust R-core transformer. Compared to other power supplies the size and weight of some amplifiers, the compactness of the PS-1 makes it extremely easy to place and work with.

For DC powered devices, replacing the standard 'wall wart' switching mode power supply with a robust, quiet linear power supply can reap huge sonic benefits. For years, customers who purchased award-winning "micro" products have asked us if we also made a linear power supply to increase their performance, but our answer was always an unfortunate "no". No longer! The new modular power supply is a truly innovative product at an affordable cost.

In the crowded world of power supply units, the modular design is unique. Most power supplies are a fixed voltage and made to power a single product. Some power supplies offer dual (and in the rare instance, more than two) outputs with different voltages. A very rare number of power supplies offer more than one output AND allows the user to select the voltage. Typically, these power supplies are large, heavy and ridiculously expensive. And none, to our knowledge, are truly modular.

Higher-Current Module

Higher-current power modules are available. The new high-current modules will accommodate the same voltages (5, 9, 12, 15v) but capable of up to 3A (instead of a 1A for regular power modules).

The higher current module can facilitate up to 2A continuous current. This is about the maximum current on tap for the R-core transformer. However, it's important to take a look at the true power requirements of the unit(s) you're powering. Many times, the inrush current of turning a unit on is more than its normal operating current. If this is the case, you may employ more modules - up to ~4A to total maximum operating current. You can use up to four regular power modules or up to one high-current power modules plus one regular power module per unit.

Due to significant cost increase in parts to produce the higher current module, pricing for the high current module is $500 each.

There are many great reasons to consider a higher powered module. A lot of noise in an audio system is attributable to noisy power supplies or noise coming from outside sources or devices. The higher powered modules effectively isolates and protects your system from that issue. Some uses for a higher current module: Music streamers, network switches, anything needing up to 2A maximum and 15v draw.

Purchasing Notes

The base unit is $399, power module not included. Add power modules, one for each device you wish to power. Each power module is user-selectable for 5, 9, 12, or 15v.

• Order up to four regular power modules for devices up to 1A each
• Order one high-current module as long as power draw is 3A or less
• Order one regular power module and one high-current power module as long as max power draw on the high current module is 3A or less

Each power module comes standard with one 1 meter long, 5.5mm (OD - outer diameter) x 2.1mm (ID - inner diameter) male barrel plug DC cable to connect your device. This is a very typical barrel plus size that fits most DC inputs, but please double check yours to be sure. Should you need to substitute for a cable with a 2.5mm (ID) connector, additional cables are available.
