Authorized dealers for Wyred 4 Sound PH-1 Phono-Stage

  • Elite Audio UK — online and in-store — Pittenweem, Escocia, United Kingdom (website)
  • Hi Fi Mansion — in-store — Rivas-Vaciamadrid, Comunidad de Madrid, Spain (website)
  • Mister Hifi — online and in-store — Raamsdonksveer, Noord-Brabant, Netherlands (website)
  • Reference Analog — online and in-store — Moore, Oklahoma, United States (website)
  • Theatermax LLC — in-store — Boca Raton, Florida, United States (website)

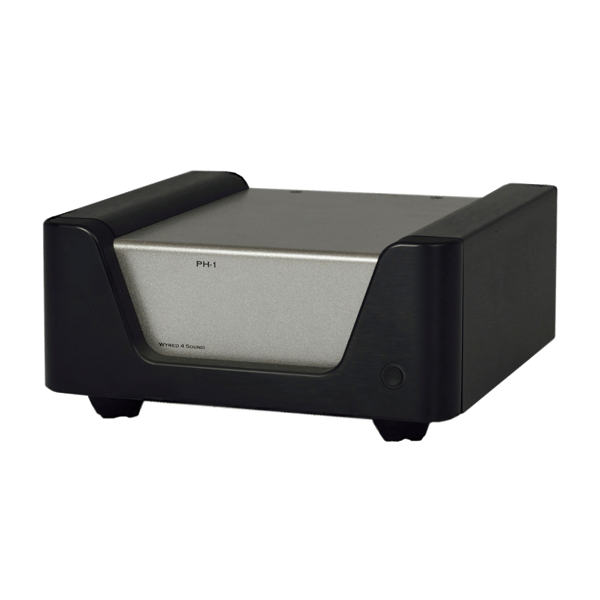

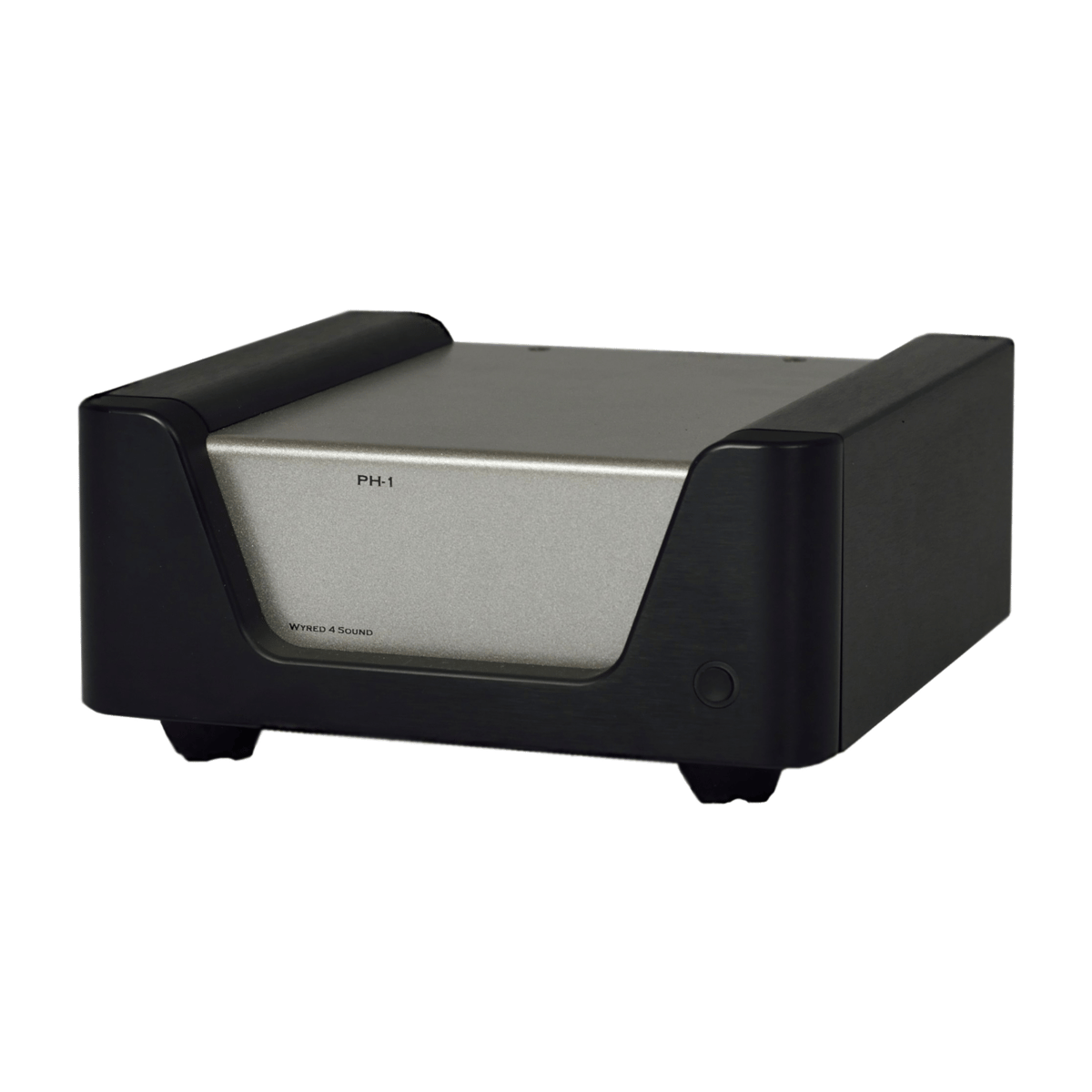

Wyred 4 Sound PH-1 Phono-Stage #1
Wyred 4 Sound PH-1 Phono-Stage variant 1
Wyred 4 Sound PH-1 Phono-Stage variant 2

Wyred 4 Sound PH-1 Phono-Stage

United States flag

Product Overview

Wyred 4 Sound has never been one to rest on our laurels, nor shy away from shaking things up. As we were developing our award winning, industry leading 10th Anniversary DAC, we had also been quietly working on another ground breaking - and perhaps unexpected - product for some time.


We've always wanted to build an affordable, amazing sounding phono stage, and in fact have wholly or partly developed several phono stages over the years but were never brought to market. When we released the SST Thoebe II preamplifier, reviewers were bowled over by its incredible performance, in particular its phono stage. It was this development that finally provided us the motivation, inspiration and foundation to build the first ever product.


Design Philosophy

A great phono stage has many features, but perhaps the most important feature is one that it should lack - noise! From the outset, our goal was to make this one of the absolute lowest noise phono stages available. Looking at the specs we think you'll agree, it addresses this critical issue shockingly well.


While eliminating noise is critical to allow for sonics to emerge as transparently and dynamically as intended, it's the rest of the circuit and build design that contribute to the magic. Based on years of research and refinement, plus our own development of the Thoebe II phono stage, this product shines as one of the finest phono stages available to todays audiophile. And of course in the Wyred 4 Sound tradition, the performance far surpasses what its low price would suggest.

Read full description
Buy Direct from Wyred 4 Sound
Specifications7 reviews & sources

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

YouTube Reviews

No reviews found yet

store
store
store
store

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

Features
Ultra-quiet design Outboard linear power supply (to further isolate and reduce noise) RCA and XLR (fully balanced) outputs Individual Gain and Loading controls for optimal performance with a wide range of cartridges All-aluminum chassis Compact and easy to place
Gain Selectable
44db, 50db, 56db, 62db
Noise
44db = 29uv (20-20kHz), 62db = 190uv (20-20kHz)
RIAA Accuracy
0.12db @ 44db gain (5mv in RIAA Equalized 20-20kHz)
THD @ 1kHz
5mv @ 62db .0009% (20-20kHz Balanced out)
Loading
100 ohm (0.047uf), 511 ohm (0.01uf), 1k ohm (4700pf), 46k (47pf)
Input Overload 1kHz
44db = 85mv, 62db = 10mv
s/n 85mv in (44db)
111db (Awt 20-20kHz Balanced out)
s/n 10mv in (62db)
95db (Awt 20-20kHz Balanced out)
Max output
13v RMS Balanced, 6v RMS Unbalanced
Output Impedance
100 ohm Balanced, 100 ohm Unbalanced
Balanced Output
MC/MM Switching
Gain Switching

Manufacturer's Description — Wyred 4 Sound

Product Overview

Wyred 4 Sound has never been one to rest on our laurels, nor shy away from shaking things up. As we were developing our award winning, industry leading 10th Anniversary DAC, we had also been quietly working on another ground breaking - and perhaps unexpected - product for some time.


We've always wanted to build an affordable, amazing sounding phono stage, and in fact have wholly or partly developed several phono stages over the years but were never brought to market. When we released the SST Thoebe II preamplifier, reviewers were bowled over by its incredible performance, in particular its phono stage. It was this development that finally provided us the motivation, inspiration and foundation to build the first ever product.


Design Philosophy

A great phono stage has many features, but perhaps the most important feature is one that it should lack - noise! From the outset, our goal was to make this one of the absolute lowest noise phono stages available. Looking at the specs we think you'll agree, it addresses this critical issue shockingly well.


While eliminating noise is critical to allow for sonics to emerge as transparently and dynamically as intended, it's the rest of the circuit and build design that contribute to the magic. Based on years of research and refinement, plus our own development of the Thoebe II phono stage, this product shines as one of the finest phono stages available to todays audiophile. And of course in the Wyred 4 Sound tradition, the performance far surpasses what its low price would suggest.

Wyred 4 Sound logo

Verified Dealers

Online Dealers

All Dealers

Zoom out the map to see more dealers

Authorized dealers for Wyred 4 Sound PH-1 Phono-Stage

  • Elite Audio UK — online and in-store — Pittenweem, Escocia, United Kingdom (website)
  • Hi Fi Mansion — in-store — Rivas-Vaciamadrid, Comunidad de Madrid, Spain (website)
  • Mister Hifi — online and in-store — Raamsdonksveer, Noord-Brabant, Netherlands (website)
  • Reference Analog — online and in-store — Moore, Oklahoma, United States (website)
  • Theatermax LLC — in-store — Boca Raton, Florida, United States (website)
