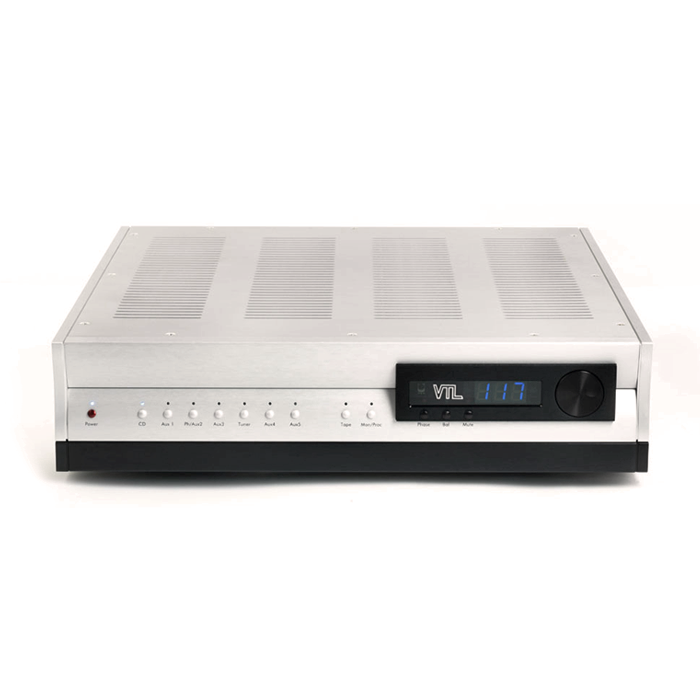

VTL TL5.5 II
Since its introduction in 1997, the TL-5.5 has earned a reputation for outstanding performance at an economical price. Now, VTL has significantly upgraded this preamp, using many of the technological innovations derived from the flagship TL-7.5 preamplifier. The result is a modern full-featured preamplifier that outperforms in every way, making it one of the top values of any tube preamplifier in its category.
The fundamental qualities that made the original TL-5.5 special—its all-tube design, the optional retrofittable phono stage, and its superb sonic characteristics—are unchanged. What's new is the application of advanced audio technology sourced from VTL's TL-7.5 Reference and TL-6.5 Signature preamplifiers. This technology uses a simple circuit topology with low negative feedback and a high current/low impedance output stage in a low-noise microprocessor-based design. Top quality parts, fully balanced operation, and precision-regulated and shielded power supplies yield a full yet neutral sound with high resolution, transparency, speed and powerful dynamics.
Much of the engineering prowess inherent in these world-class preamps has been transferred to the new TL5.5. New fully regulated power supplies are similar to those of its bigger siblings and the unit is now fully balanced, for inputs as well as outputs. Similarly, VTL's latest thinking from our new and acclaimed TP-6.5 Signature phono stage is now applied to the optional MC phono stage, which can be easily retrofitted internally. It offers 68dB of gain and a balanced output, with a JFET/12AU7 high current MC stage (or high-grade stepup transformer), split-pole passive RIAA stage with a dual 12AX7 MM stage for maximum headroom voltage swing. Triple-precision power supply regulation and full gain and load setting with RIAA enhanced and rumble cut functions translate to a clean and quiet yet dynamic sound that brings vinyl to life!
VTL has delivered on its goal of bringing advanced engineering and modern functionality to the new TL-5.5 Series II preamplifier. With the same highly intuitive user interface of the renowned TL-7.5 and 6.5, and a full-function remote, the new TL-5.5 is a pleasure to use. A rigid, well-shielded chassis yields quiet operation while bi-directional RS-232 serial interface allows for seamless integration into any audio system. A luxurious cosmetic makeover includes a sleek and visually striking precision-milled faceplate similar to those used on its much more expensive brethren. For a well-priced, high-performance all-tube preamplifier, the TL-5.5 is a truly fine addition to any system.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Vacuum Tube Complement
- 2 x 12AU7, 4 x 12AT7 (line stage)
- Inputs
- 2 pair balanced/XLR or RCA single-ended, 6 pairs single-ended/RCA
- Outputs
- 1 pair balanced out, 1 pair single-ended RCA out, 1 pair single-ended RCA buffered Record Out
- Remote control functions
- Power, Source Select, Volume up/down, Mute, Fade, Balance Control, Phase Reverse
- Gain
- Normal Gain -11dB single ended, 17dB balanced; Switchable to Low Gain – 6dB SE, 11dB balanced
- Output impedance
- 150Ω, Max 400Ω @ 10Hz
- Input impedance
- 35kΩ
- Frequency Response
- 1Hz – 200kHz, +0 -1dB
- Maximum Output Voltage <1% THD
- 30V @ 10Hz – 200kHz, 1.75V into 600 ohms @ 1%THD
- Channel separation
- >100dB @ 1kHz (>80dB @ 20kHz)
- Power consuption
- 60W line stage, 130W with phono stage
- Dimensions W x D x H
- 17.5 x 17.5 x 4.75 Inch (44.45 x 44.45 x 12.06 cm)
- Weight
- 40lbs (18.12Kg) fully packed, 30lbs (13.6Kg) unpacked
- Vacuum Tube Complement
- 2 x 12AX7, 2 x 12AT7
- Load
- 45kΩ
- Gain
- 40dB
Manufacturer's Description — VTL
Since its introduction in 1997, the TL-5.5 has earned a reputation for outstanding performance at an economical price. Now, VTL has significantly upgraded this preamp, using many of the technological innovations derived from the flagship TL-7.5 preamplifier. The result is a modern full-featured preamplifier that outperforms in every way, making it one of the top values of any tube preamplifier in its category.
The fundamental qualities that made the original TL-5.5 special—its all-tube design, the optional retrofittable phono stage, and its superb sonic characteristics—are unchanged. What's new is the application of advanced audio technology sourced from VTL's TL-7.5 Reference and TL-6.5 Signature preamplifiers. This technology uses a simple circuit topology with low negative feedback and a high current/low impedance output stage in a low-noise microprocessor-based design. Top quality parts, fully balanced operation, and precision-regulated and shielded power supplies yield a full yet neutral sound with high resolution, transparency, speed and powerful dynamics.
Much of the engineering prowess inherent in these world-class preamps has been transferred to the new TL5.5. New fully regulated power supplies are similar to those of its bigger siblings and the unit is now fully balanced, for inputs as well as outputs. Similarly, VTL's latest thinking from our new and acclaimed TP-6.5 Signature phono stage is now applied to the optional MC phono stage, which can be easily retrofitted internally. It offers 68dB of gain and a balanced output, with a JFET/12AU7 high current MC stage (or high-grade stepup transformer), split-pole passive RIAA stage with a dual 12AX7 MM stage for maximum headroom voltage swing. Triple-precision power supply regulation and full gain and load setting with RIAA enhanced and rumble cut functions translate to a clean and quiet yet dynamic sound that brings vinyl to life!
VTL has delivered on its goal of bringing advanced engineering and modern functionality to the new TL-5.5 Series II preamplifier. With the same highly intuitive user interface of the renowned TL-7.5 and 6.5, and a full-function remote, the new TL-5.5 is a pleasure to use. A rigid, well-shielded chassis yields quiet operation while bi-directional RS-232 serial interface allows for seamless integration into any audio system. A luxurious cosmetic makeover includes a sleek and visually striking precision-milled faceplate similar to those used on its much more expensive brethren. For a well-priced, high-performance all-tube preamplifier, the TL-5.5 is a truly fine addition to any system.
