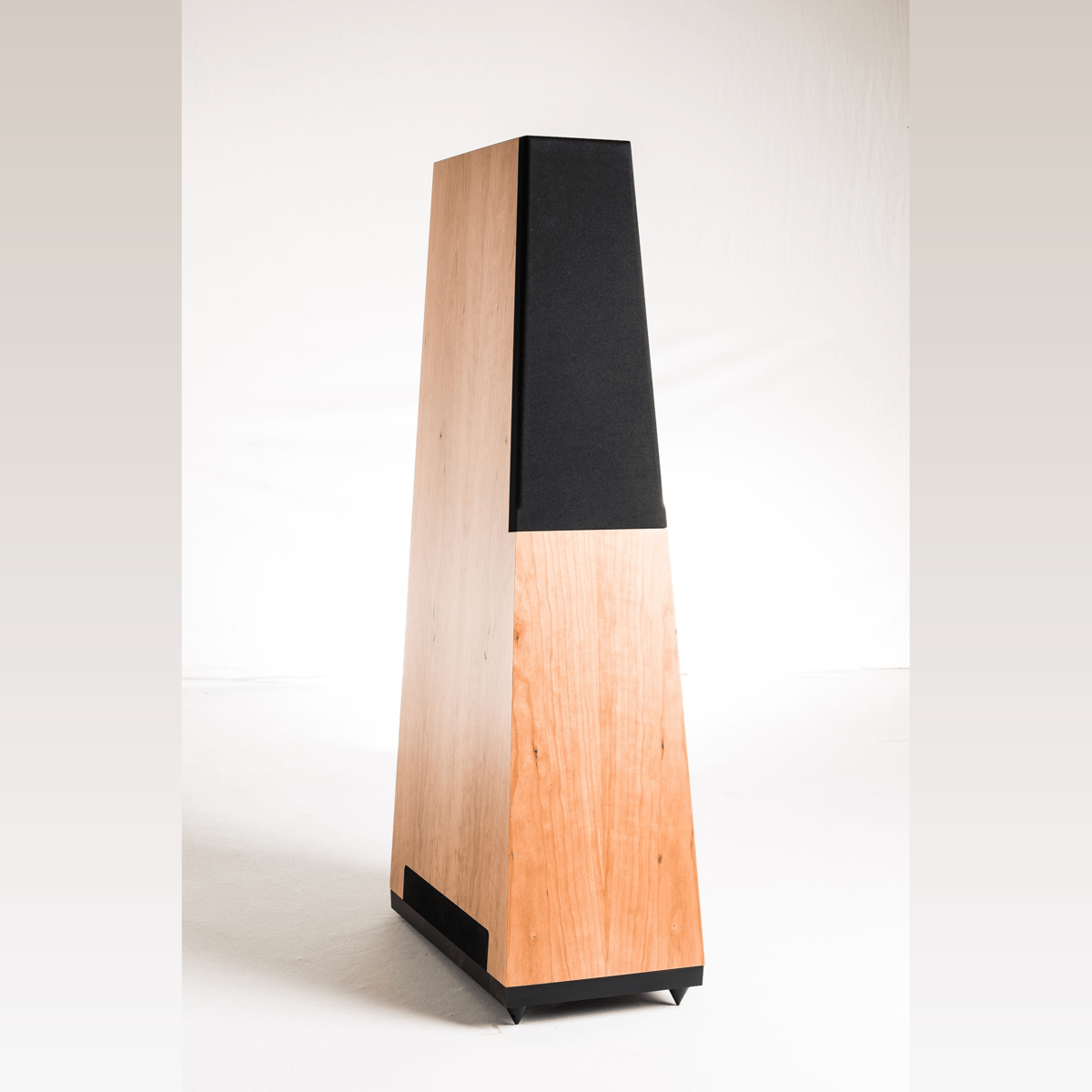

Vandersteen Audio introduces the Quatro Wood CT, the latest evolution in speaker technology and sound quality to derive from the research & development efforts that delivered the patented carbon-fiber Perfect-Piston drivers used in the flagship Model 7. While the Perfect-Piston Tweeter used in the Model 7 is the fully embodied deal of high-frequency purity and resolution, the Quatro Wood CT (Carbon Tweeter) features the superb Carbon Tweeter from the renowned Model 5A Carbon.

" ... the Quatro (Wood CT)s fit the bill for musicality, extended frequency response, dynamically spot on, and being drop-dead attractive to look at. Thanks, Richard. Much love to you and all at Vandersteen ... A real keeper." -Dave Clark, Editor Positive Feedback Online

Vandersteen Audio introduces the Quatro Wood CT, the latest evolution in speaker technology and sound quality to derive from the research & development efforts that delivered the patented carbon-fiber Perfect-Piston drivers used in the flagship Model 7. While the Perfect-Piston Tweeter used in the Model 7 is the fully embodied deal of high-frequency purity and resolution, the Quatro Wood CT (Carbon Tweeter) features the superb Carbon Tweeter from the renowned Model 5A Carbon.

Carbon driver cones offer the pistonic linearity of metal drivers without the unnatural sonic colorations inherent in metal drivers. Employing a carbon tweeter allows the Quatro Wood CT to deliver an astonishing amount of the air, space and natural purity previously heard only in the Model 5A Carbon and the Model 7.

Like all Vandersteen speakers, the Quatro Wood CT is a time- and phase-correct loudspeaker, made in the USA. Because such great demands are placed on the drivers in Vandersteen’s first-order speaker designs, all of the Quatro Wood CT’s drivers are the kind of highly advanced transducers typically found in cost-no-object designs. Vandersteen’s patented, Reflection-Free 4.5” midrange driver breaks up energy from behind the driver before it can pass directly back into the room and to the listener’s ears. The 6.5” Tri-Woven woofer offers superior transient response and definition in the crucial lower-midrange/midbass frequencies.

Of course, the Quatro Wood CT also provides much of the performance and versatility of Vandersteen’s top-end powered-bass speakers in an attractive and compact form factor. The Quatro Wood CT’s foundation is its powered subwoofer section. Each speaker is equipped with dual 8” subwoofers powered by custom-tailored amplifiers that work in conjunction with passive, first-order (6dB/octave) 100Hz high-pass filters and 11-band EQ for the ultimate in-room performance optimization.

High-pass filtering allows the main amplifier to perform better, unburdened of reproducing deep bass, and is also the only way to ensure flat frequency response at the crossover to the powered subwoofer. Passive speaker designs always require placement compromises between the areas in the room where the imaging is typically best (farther out in the room) and where the bass is best (closer to the walls for boundary reinforcement). In Vandersteen’s powered-bass speakers the speaker can be placed out in the room where it images best, while the 11-band EQ ensures powerful but perfectly tailored in-room bass performance. The best of all things.

The impedance-compensated crossovers are ultra-high-performance designs featuring extreme-quality parts and individually tuned in an anechoic chamber. Vandersteen’s Minimum Baffle enclosures ensure maximum rigidity free of time-smearing reflections and diffraction.

All of this technology allows the Quatro Wood CT to offer the kind of exceptional resolution, imaging, and natural musicality Vandersteens are known for, with deep and powerful yet tuneful bass, virtually anywhere in any room.

Tweeter: 1” Exclusive Dual-Chamber, Transmission-Line Loaded Carbon Dome with Ferrofluid Voice-Coil Cooling

Midrange: 4.5” Patented Reflection-Free Tri-Woven Composite Cone with Die-Cast Aerodynamic Basket and Magnet System with Ferrofluid Voice-Coil Cooling

Mid-Woofer: 6.5” Woven-Fiber Cone and Precision-Formed Magnet Assembly with Copper Faraday Ring

Subwoofer(s): Dual 8” Carbon-Loaded Cellulose-Cones with Ultra Long-Throw Motor Assembly, Powered by Integrated Purpose-Designed 250-Watt Class B Linear Amplifier
